Adjusting cruise-control cable

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

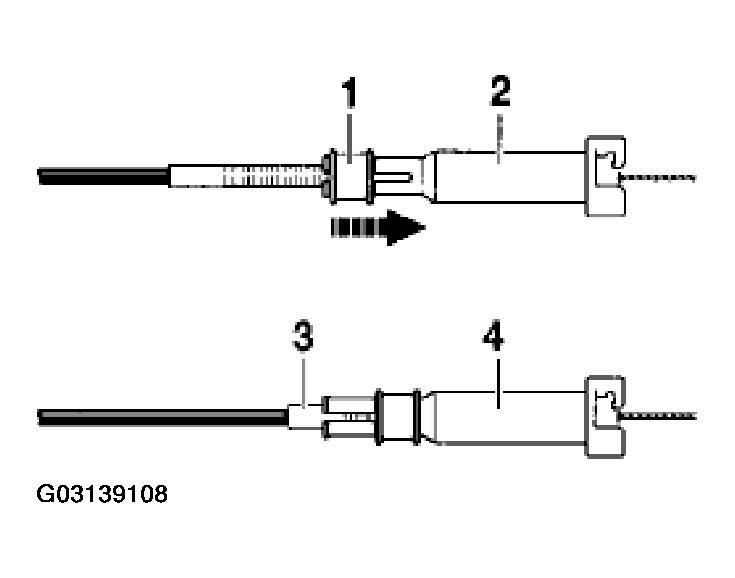

Fig 1: Adjusting Cruise-Control Cable (1 Of 2)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Sequence 1...4

Loosen snap ring 1 at adjusting piece 2 (displace it) and push threaded part 3 through along with cruise-control cable.
Engage cruise-control cable on cruise-control actuator and clip on adjusting piece 4 (bayonet lock).
Unscrew threaded part 5 until the accelerator plate is noticeably pulled.
Draw accelerator plate firmly back against its idle stop.
Push snap ring 6 back (fixing it).
Make fine adjustment by turning the threaded part 7. Permissible play: 0 + 1 mm.

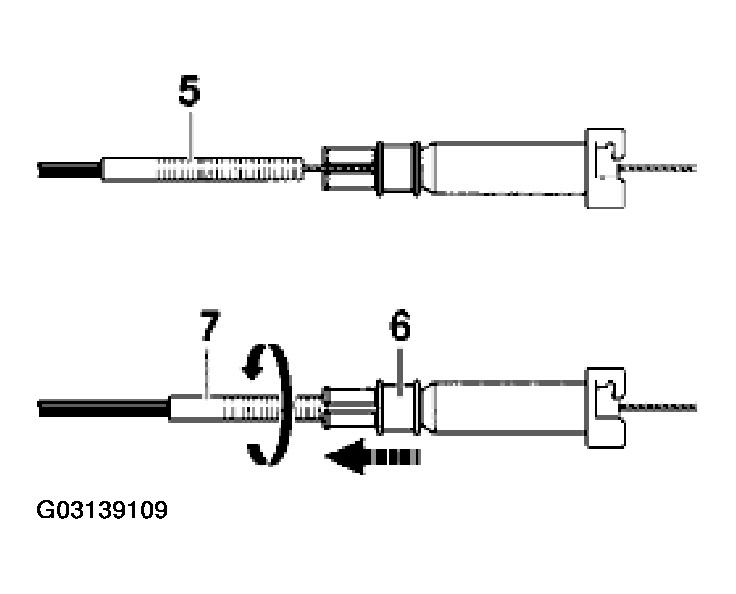

Fig 2: Adjusting Cruise-Control Cable (2 Of 2)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Sequence 5...7
