Install battery

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: See REMOVING AND INSTALLING BATTERY .

Insert battery.
Screw in fastening screw -B- , position battery and tighten the fastening screw. Tightening torque: 23 Nm (17111b.)
Push on venting hose -A-.

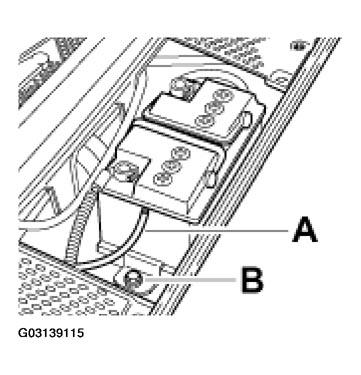

Fig 1: Screwing In Fastening Screw & Pushing On Battery Venting Hose

Courtesy of PORSCHE OF NORTH AMERICA, INC.

First connect the positive cable then the negative -otherwise there is a danger of a short-circuit! Tightening torque: 5 Nm (3.5 ftlb.).
Put on the battery cover and lock with the turn-lock fasteners.
Refer to WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY .
