Sealing Cover For Camshaft Housing (Cylinder Head Cover)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Sealing the sealing surface of the cylinder head cover

Use only the sealants Drei Bond silicone - type 1209 and Loctite 5900 to seal the sealing surface on the cylinder head cover.

NOTE:

After the sealant has been applied, the cylinder head must be joined with the cylinder head cover within 5 minutes.

Application of silicone bead

At the processing nozzle, cut off the first metering step.

Apply a uniform bead approximately 1.5 mm wide to the cleaned sealing surface of the cylinder head cover.

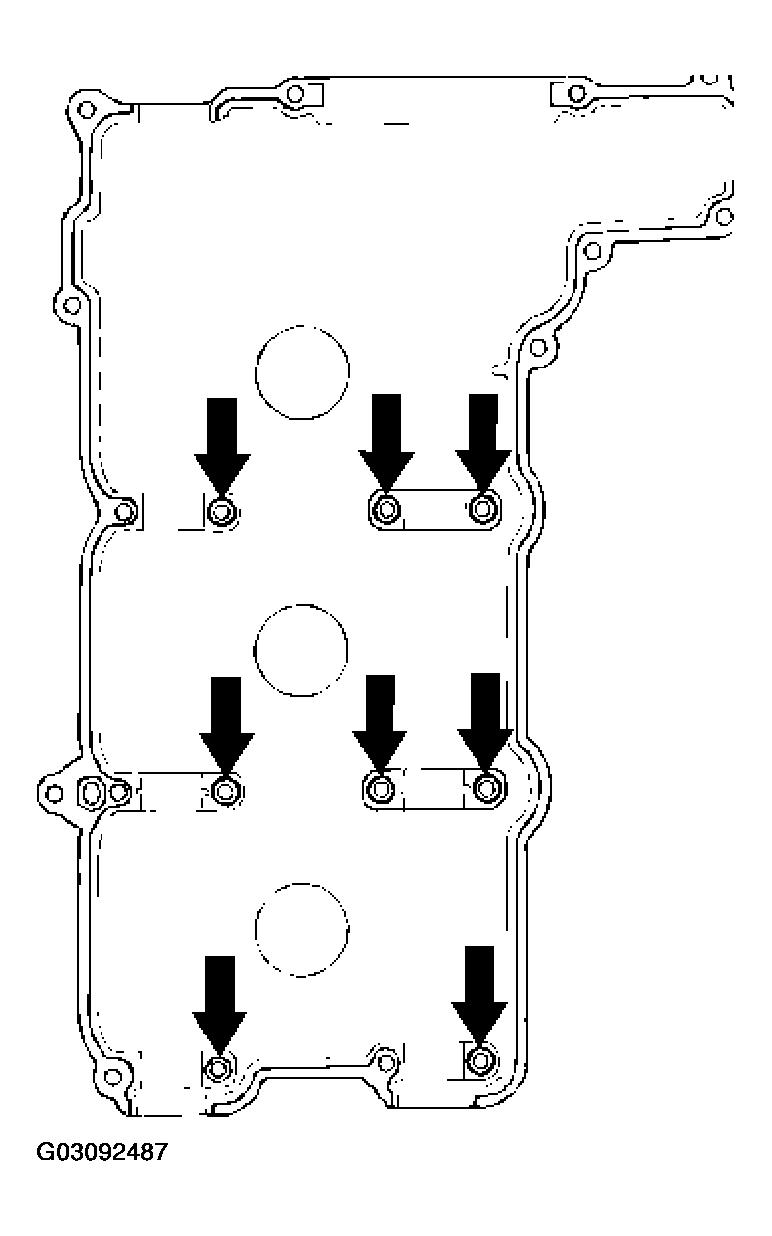

Fig 1: Identifying Sealing Surface Of Cylinder Head Cover

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Applying the sealant on the sealing surface of the cylinder head cover

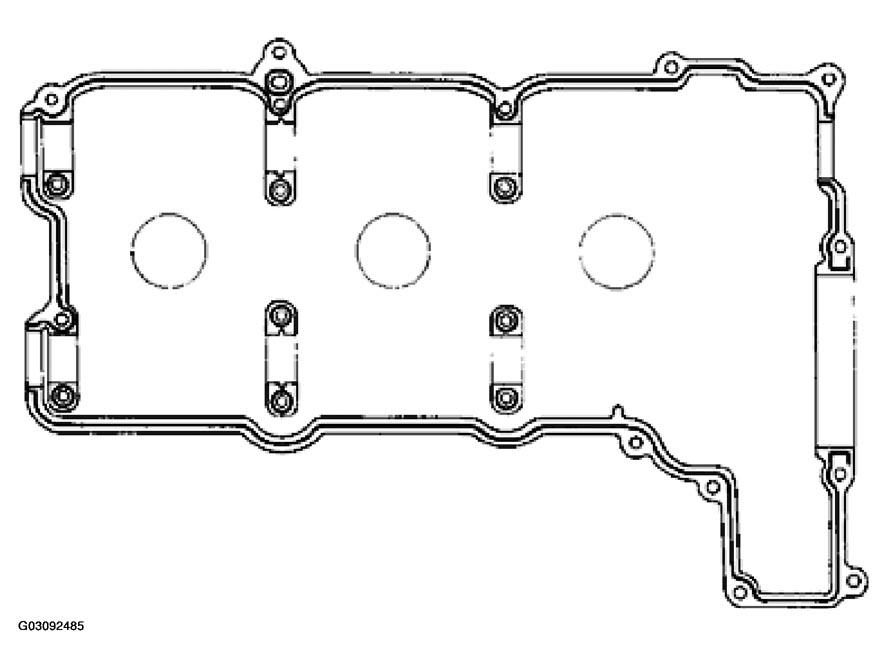

Fig 2: Applying Sealant On The Sealing Surface Of The Cylinder Head Cover

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Apply bead of sealant in the bearing saddle area

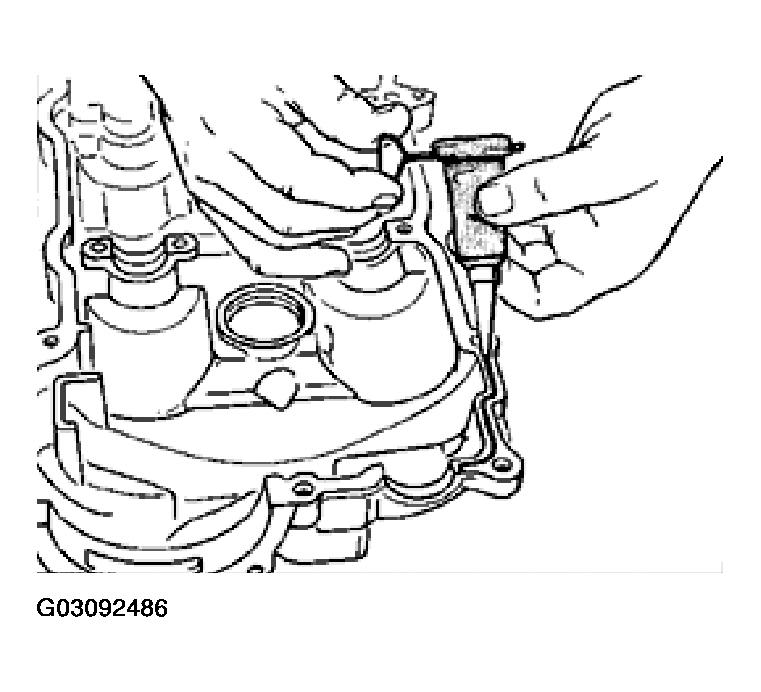

Fig 3: Applying Bead Of Sealant In Bearing Saddle Area

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Seal screw union at the oil pressure duct.

If the hexagon-head bolt (arrow) was loosened, the micro-encapsulated hexagon-head bolt must always be replaced.

Part number 900.378.163.09 (M6 x 16)

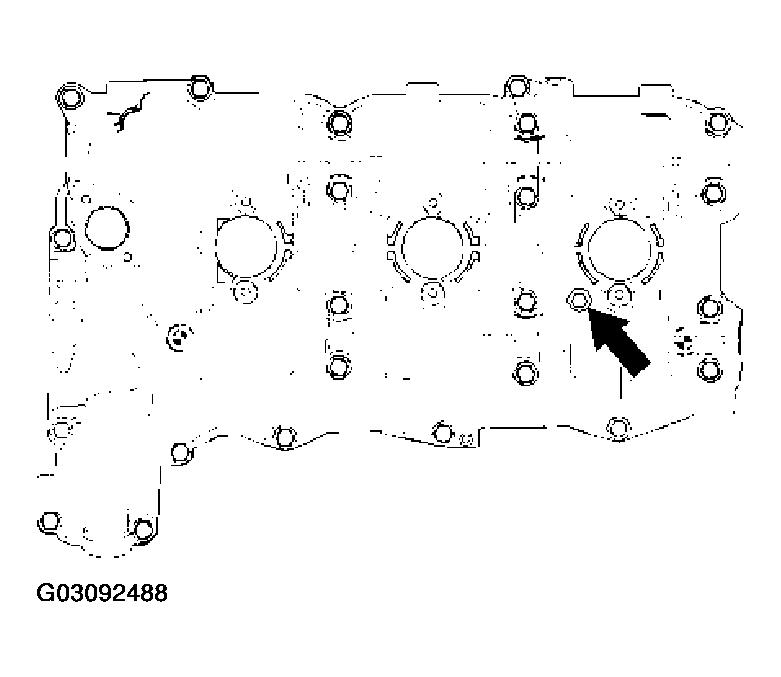

Fig 4: Locating Seal Screw Union At Oil Pressure Duct

Courtesy of PORSCHE OF NORTH AMERICA, INC.
