Camshaft Assignment

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Engine type M96/20 (2.5L)

Engine type M96/22 (2.7L)

Engine type M96/21 (3.2L)

NOTE:

The code is engraved into the camshaft.

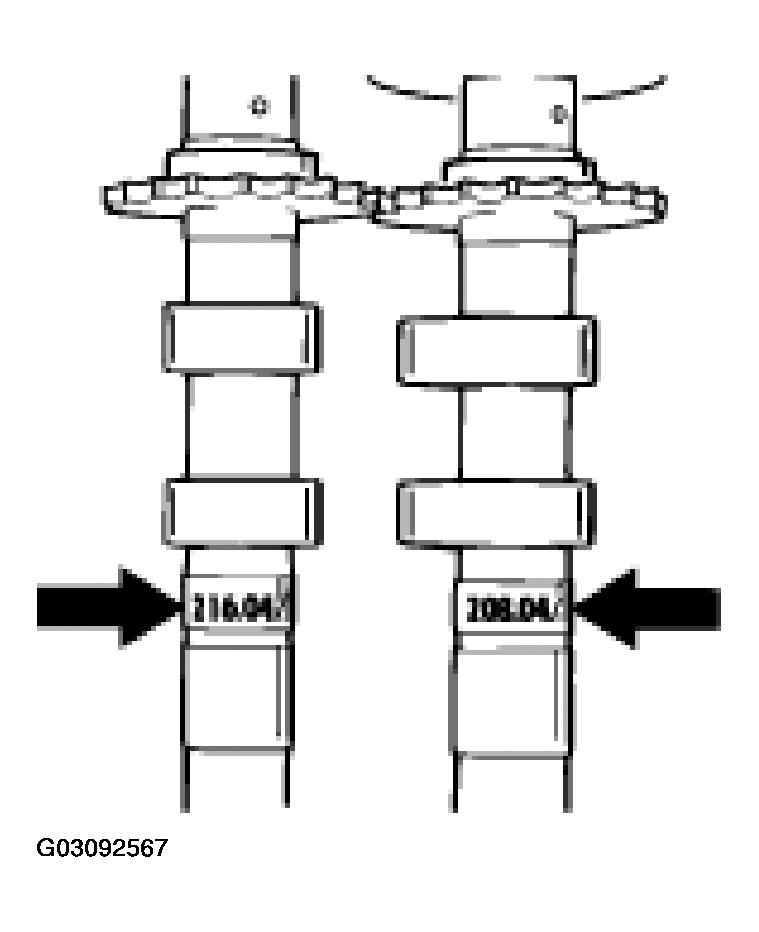

Fig 1: Locating Camshaft Code

G03092567

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Boxster camshafts (2.5L)

Engine type M96/20

Camshafts of cylinder bank 1 - 3

Identification on the camshaft:

Inlet camshaft: 221.04/2.5 IN 1 - 3

Exhaust camshaft 222.04/2.5 EX 1 - 3

Camshafts of cylinder bank 4 - 6

Identification on the camshaft:

Inlet camshaft 216.04/2.5 IN 4 - 6

Exhaust camshaft: 218.04/2.5 EX 4 - 6

Boxster camshafts (2.7L)

Engine type M96/22

Camshafts of cylinder bank 1 - 3

Identification on the camshaft:

Inlet camshaft: 221.05/2.7 IN 1 - 3

Exhaust camshaft: 222.05/2.7 EX 4 - 6

Camshafts of cylinder bank 4 - 6

Identification on the camshaft:

Inlet camshaft 216.05/2.7 IN 4 - 6

Exhaust camshaft: 218.05/2.7 EX 4 - 6

Boxster S camshafts (3.2L)

Engine type M96/21

Camshafts of cylinder bank 1 - 3

Identification on the camshaft:

Inlet camshaft 221.55/3.2/3.4 IN 1 - 3

Exhaust camshaft: 222.55/3.2/3.4 EX 1 - 3

Camshafts of cylinder bank 4 - 6

Identification on the camshaft:

Inlet camsh 216.55/3.2/3.4 IN 4 - 6

Exhaust camshaft: 218.55/3.2/3.4 EX 4 - 6
