Removing Valve Tappets Of Cylinder Bank 4 - 6

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove fixing pin. Turn crankshaft clockwise until the bore 1 OT (top dead Centre) in the belt pulley is aligned with the fixing bore on the crankcase. See Fig 1. Position or fix with fixing pin (short) of special tool 9595.

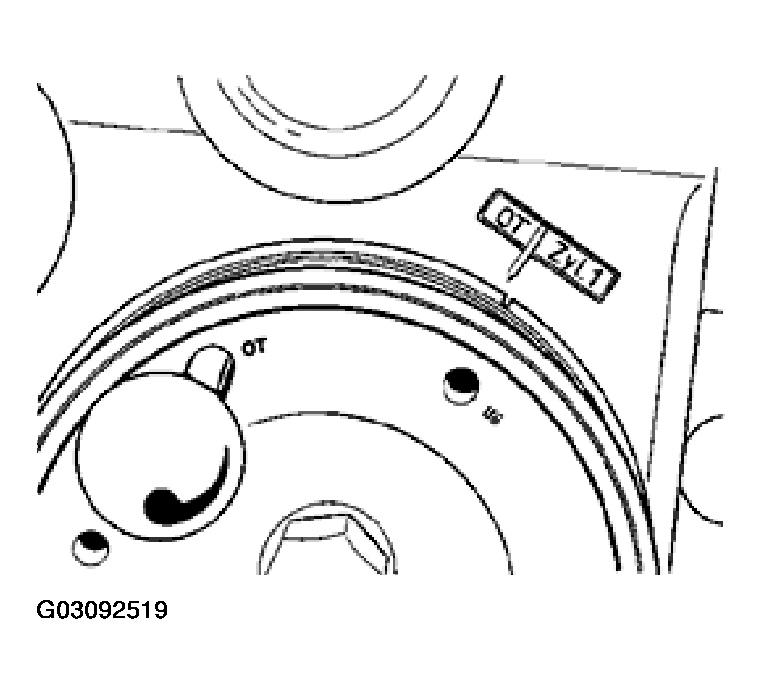

    Fig 1: Installing Special Tool (9595) In Belt Pulley
    G03092519Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Check camshaft adjustment at cylinder bank 4-6: The groove in the camshaft must face inward toward the crankcase.

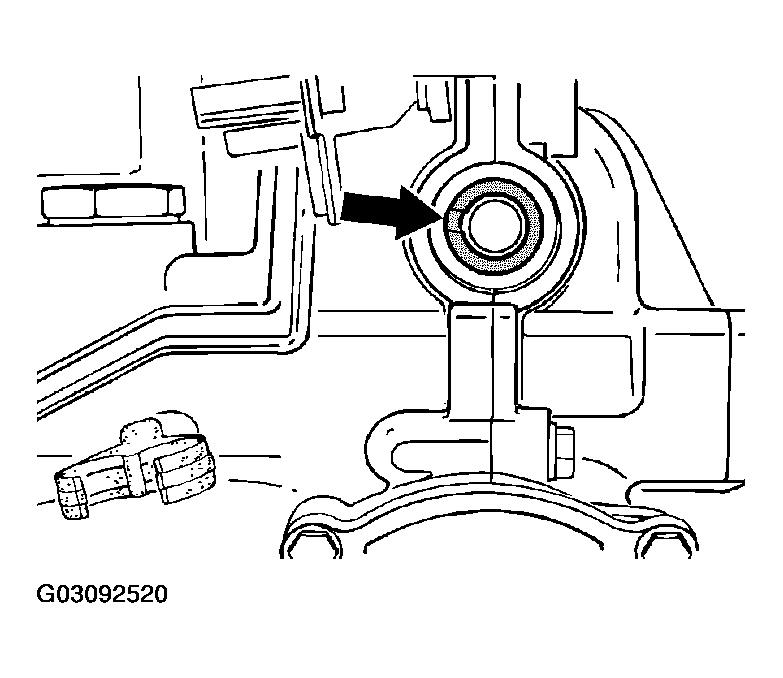

    Fig 2: Locating Groove In Camshaft - Cylinder Bank 4-6
    G03092520Courtesy of PORSCHE OF NORTH AMERICA, INC.

    View from the belt pulley side

  3. Turn engine by 90° on assembly support until cylinder bank 4-6 faces upwards.
  4. Unscrew chain tensioner of cylinder bank 4 - 6.

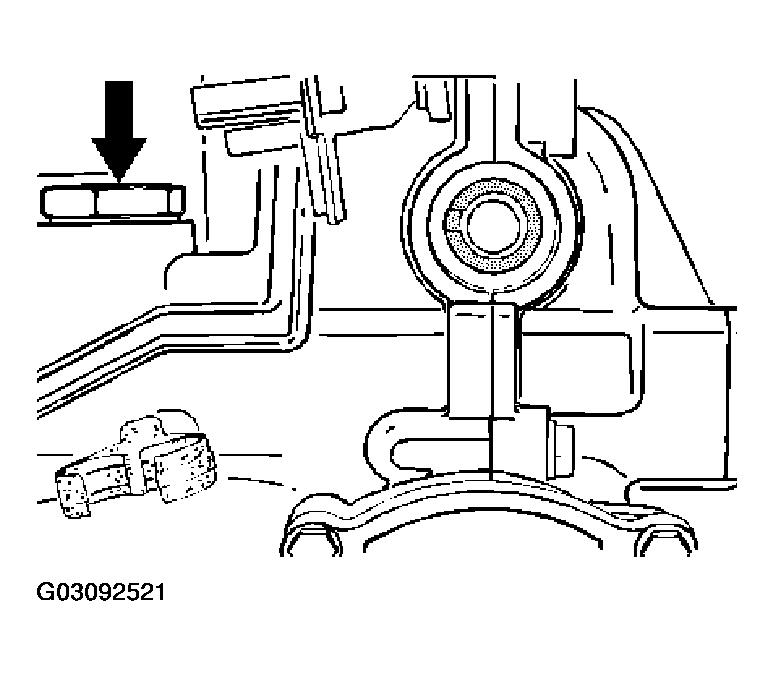

    Fig 3: Unscrewing Chain Tensioner - Cylinder Bank 4-6
    G03092521Courtesy of PORSCHE OF NORTH AMERICA, INC.
  5. Remove closure cap from tensioning element (VarioCam). Hexagon-head bolts M6 x 20 (2 ea.).
  6. Remove cylinder head cover. Loosen hexagon-head bolts from the outside to the inside.
  7. Fit holding-down device for camshafts, special tool 9611. Use auxiliary screws M6 x 45.

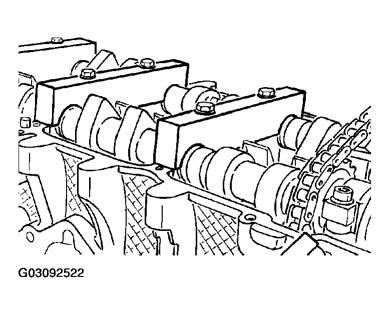

    Fig 4: Installing Special Tool (9611) Holding-Down Device For Camshafts
    G03092522Courtesy of PORSCHE OF NORTH AMERICA, INC.
  8. Detach and remove oil extraction pump at cylinder head 4 - 6 (pulley side).

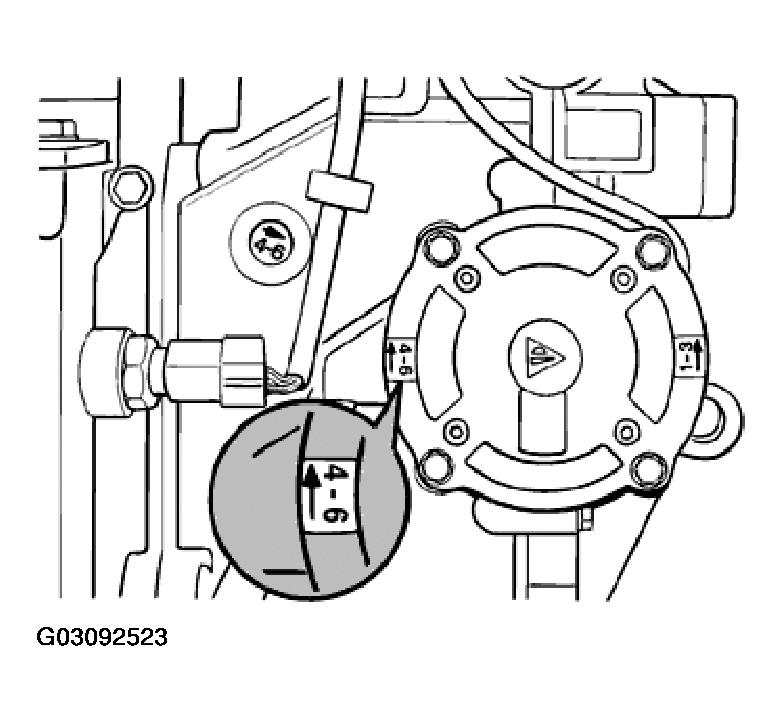

    Fig 5: Removing Oil Extraction Pump At Cylinder Head - Cylinder Bank 4-6
    G03092523Courtesy of PORSCHE OF NORTH AMERICA, INC.
  9. Relieve camshaft tensioning element with tensioning screw, special tool 9632.
    NOTE:
    • Screw in tensioning screw only so far as to slightly relieve the chain.
  10. Unscrew three fastening screws (M6 x 95) for tensioning element.
  11. Affix auxiliary chain tensioner (screw in by approx. 3 turns). Undo four hexagon-head bolts (M6 x 15) on the chain sprocket. Remove auxiliary chain tensioner again.
  12. Remove drive plate. Connect sprocket wheel and chain with a tie wrap (installation position). With a second tie wrap suspend the sprocket wheel and chain to the side under slight tension.

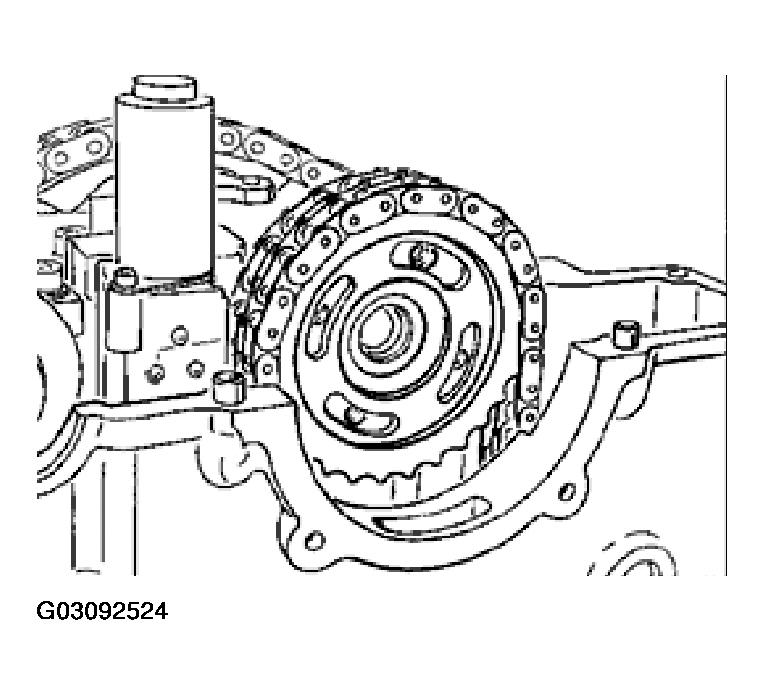

    Fig 6: Connecting Sprocket Wheel And Chain With A Tie Wrap
    G03092524Courtesy of PORSCHE OF NORTH AMERICA, INC.
  13. Detach two bearing saddles. Lever bearing saddles out of the guide sleeves.
  14. Remove holding-down device (special tool 9611) from the camshafts.
  15. Carefully lift the complete unit, camshafts with chain and tensioning element out of the cylinder head. The chain must not jump over. The groove or tab of the camshaft position sensor cover must face downward. If the allocation should be uncertain, e.g. chain jumped over, reallocation is necessary. Refer to COMPLETING CAMSHAFTS .

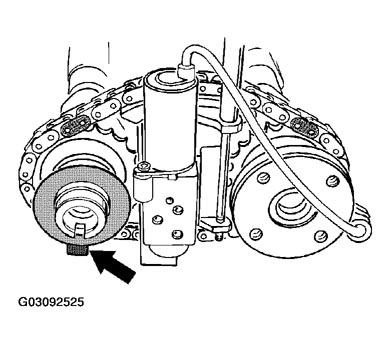

    Fig 7: Locating Groove Or Tab Of Camshaft Position Sensor Cover
    G03092525Courtesy of PORSCHE OF NORTH AMERICA, INC.
  16. Lift out valve tappets with a magnet.
  17. Detach guide for valve tappets. Undo the pan-head screws (15 ea.) from the outside to the inside, and remove the guide.
