Removing And Installing Valve Tappets - Engine Installed: Tools
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

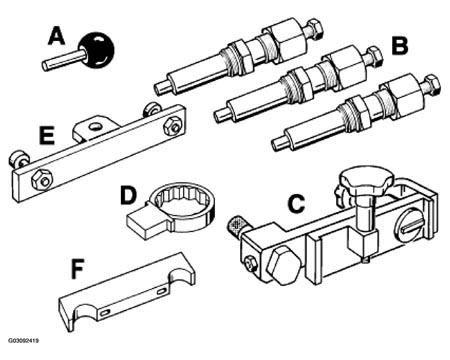

SPECIAL TOOL DESIGNATION
| Item | Designation | Special tool | Explanation | ||
|---|---|---|---|---|---|
| A(1) | Fixing pin for pulley | 9595 | 1 set = 2 ea. (use short fixing pin) | ||
| B(1) | Auxiliary chain tensioner for valve timing adjustment | 9599 | 1 set = 3 ea. | ||
| C(1) | Locking device for camshafts in timing position | 9612 | |||
| D(1) | Ring wrench (32 mm) | ||||
| E(1) | Holding-down device for camshafts | 9634 | |||
| F(1) | Holding-down device for camshafts | 9611 | 1 set = 4 ea. | ||
|
|||||
