Identification For Cylinder Bank 1-3

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

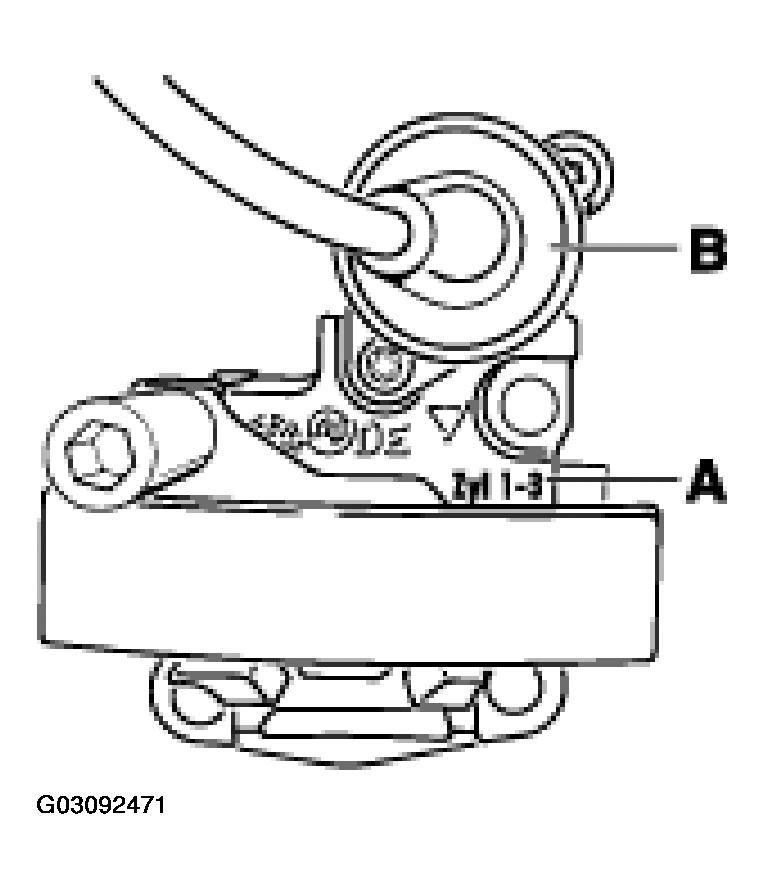

Fig 1: Identifying Camshaft Tensioning Element - Cylinder Bank 1-3 (Solenoid Valve Surface Color Black)
G03092471Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. Cyl. 1-3
  2. Solenoid valve surface color black
