Removing And Installing Valve Stem Seal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Insert VW special tool 3364 into rib of valve stem seal and pull out.

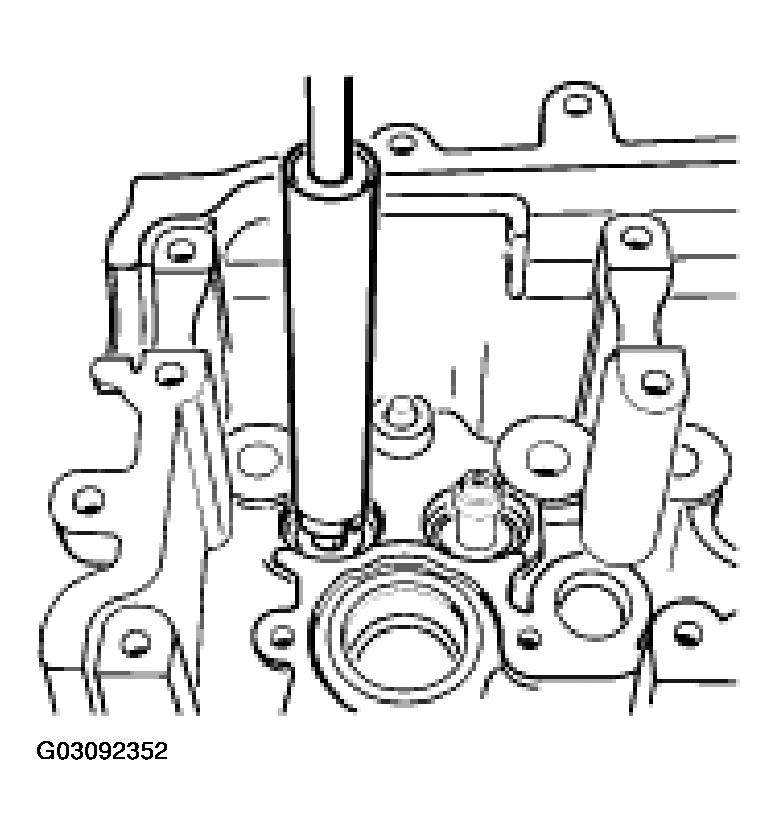

Fig 1: Inserting VW Special Tool (3364) Into Rib Of Valve Stem Seal

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fit original valve spring support disc. Slide plastic assembly sleeve ($$ 6 mm) onto valve stem. Oil sealing lip and seating surface of valve stem seal, put on by hand and, with assembly mandrel (VW special tool 3365), gently tap as far as the stop on the valve guide. Remove plastic sleeve.

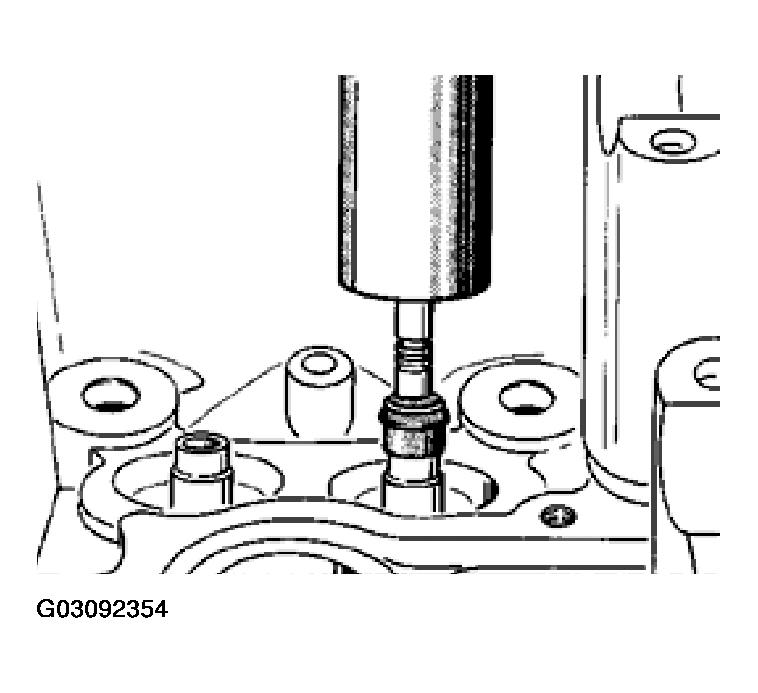

Fig 2: Fitting Original Valve Spring Support Disc

Courtesy of PORSCHE OF NORTH AMERICA, INC.

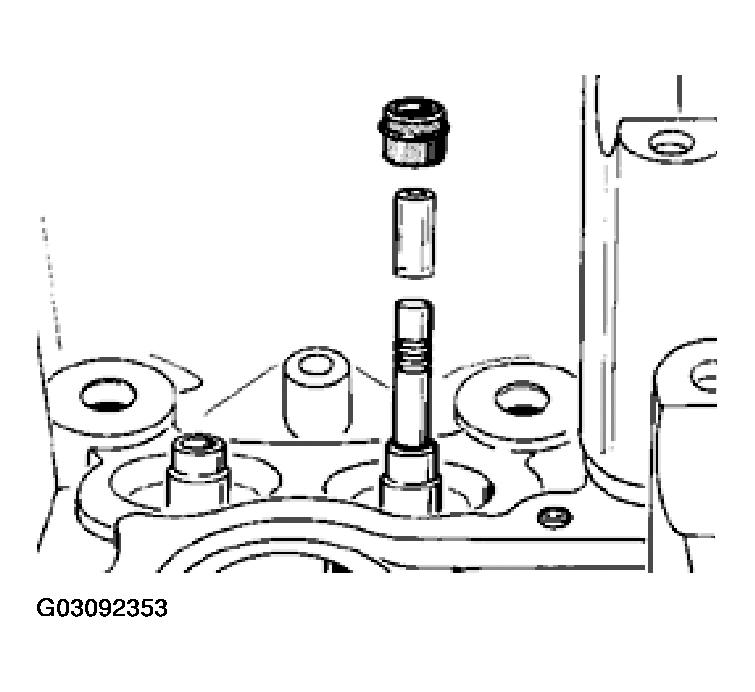

Fig 3: Removing Plastic Sleeve

Courtesy of PORSCHE OF NORTH AMERICA, INC.
