Removing And Installing TENSIONING Roller For Drive Belt

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

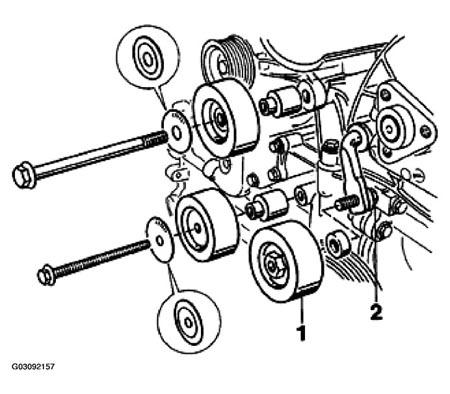

Fig 1: Exploded View Of Tensioning Roller For Drive (Serpentine) Belt Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

REMOVAL AND INSTALLATION PROCEDURE OF DEFLECTION ROLLERS

No.

Designation

Qty.

Removal

Installation

1⁽¹⁾

Tensioning roller with spacer ring

Undo at the hexagon (wrench size: 24) and simultaneously counter at the hexagon-head bolt

Tightening torque 60 Nm (44 ft.lb) Counter at the hexagon-head bolt when tightening. (wrench size: 15)

2⁽¹⁾

Hexagon-head bolt (micro-encapsulated)

Not necessary for removal and installation of the tensioning roller.
The hexagon head bolt can be removed only after the belt tensioner or bracket has been loosened.

Apply a thin coat of screw locking lacquer to the thread of the hexagon head bolt. See ⁽²⁾

⁽¹⁾	For explanation see Fig 1

⁽²⁾	Either the screw locking lacquer Loctite 242 "Mittelfest" (medium strength) or Loctite 270 "Hochfest" (high strength) can be used. If screw locking lacquer 270 is used, coat only the first four threads.
