Removing And Installing Solenoid Hydraulic Valve: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Fit new solenoid valve. Screw in threaded screws by hand. The thread cut when the screw was screwed in for the first time must be found again. Tightening torque 3.7 + 0.15 Nm (2.7 + 0.10 ft.lb)

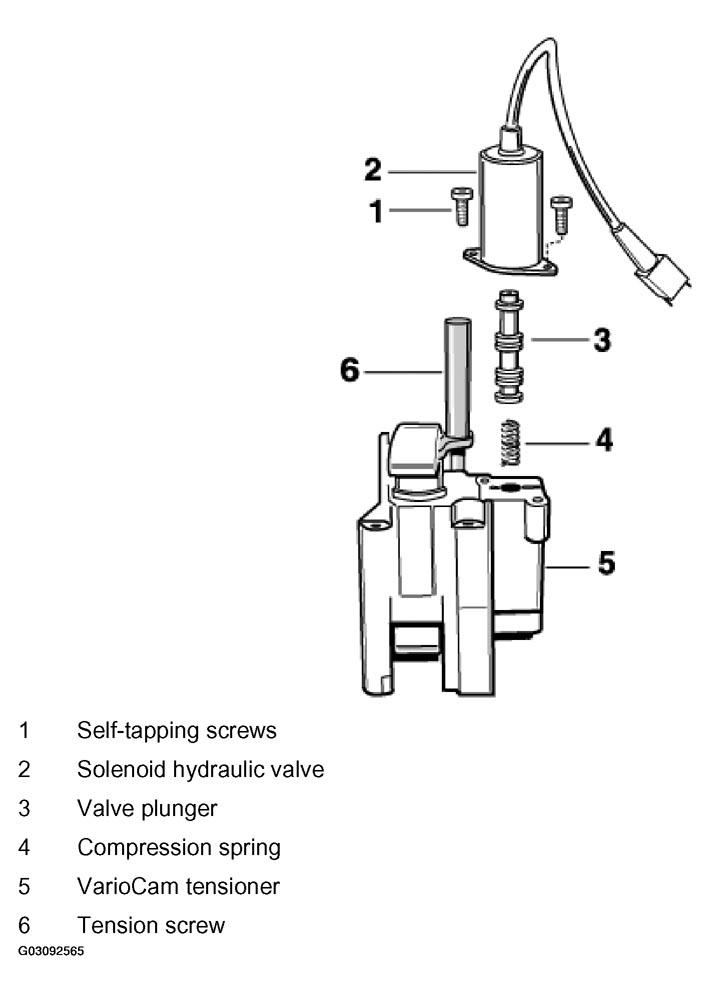

Fig 1: Fitting New Solenoid Valve

Courtesy of PORSCHE OF NORTH AMERICA, INC.
