Removing And Installing Pistons: Tools
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

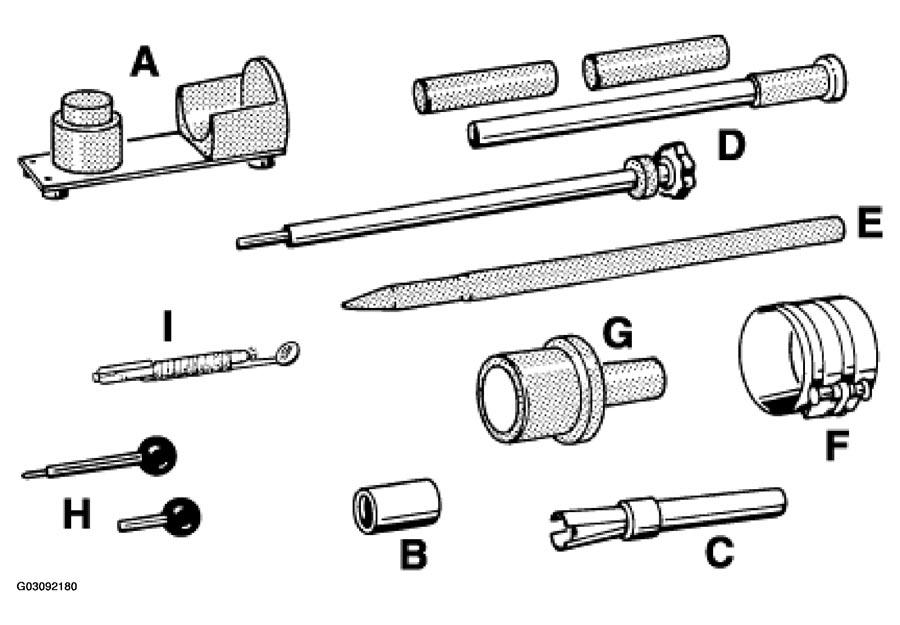

SPECIAL TOOLS
| Item | Designation | Special tool | Explanation |
|---|---|---|---|
| A | Retaining device for pistons and connecting rods for pre-fitting the piston pins of cylinder bank 1 - 3 | 9597 | |
| B | Assembly sleeves for pre-fitting the piston pin circlips | 9603 | |
| C | Assembly fixture for fitting piston pin circlips in assembly sleeve 9603 | 9500/3 | |
| E | Assembly tool for fitting the piston pins and piston pin circlips | 9602 | |
| E | Centering mandrel for fitting pistons in cylinder bank 4-6 | 9608 | |
| F | Piston ring restraining strap | ||
| G | Assembly aid for positioning the pistons | 9598 | |
| H | Fixing pin for fixing the belt pulley | 9595 | 1 set = 2 ea. (use short fixing pin) |
| I | Electric torch with mirror to check the piston pin circlips of cylinder bank 4-6 | Shop-made or, for example, illuminated adjustable mirror. |
