Fitting Pistons On Cylinder Bank 4 - 6: Installation

1. Thoroughly clean sealing surface of the crankcase half of cylinder bank 1 - 3.
2. Ensure that the profile seals on the oil separator and the two seals on the coolant duct are seated correctly.

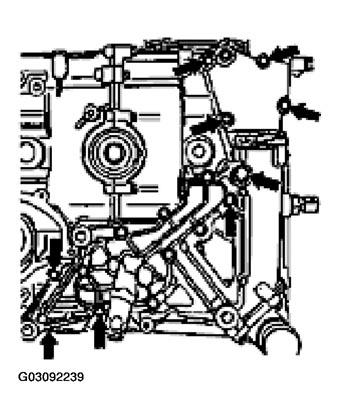

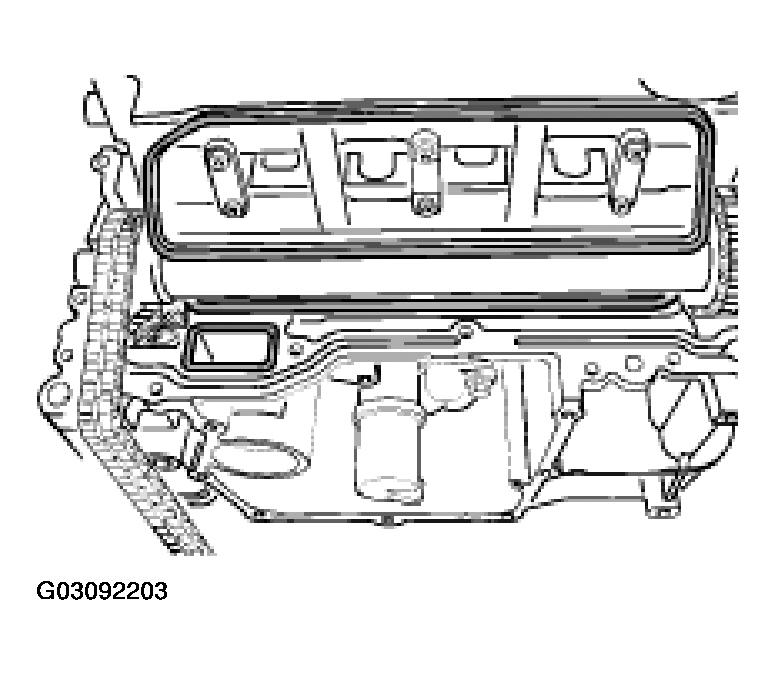

   Fig 1: Identifying Profile Seals On The Oil Separator

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
3. Apply a uniform bead of silicone approximately 1.5 mm wide to the cleaned sealing surface of the crankcase half of cylinder bank 4-6.
4. Place special tool 9645 on the receiving bore of the oil pump and turn the knob clockwise until the centering mandrel is braced in the crankcase half.

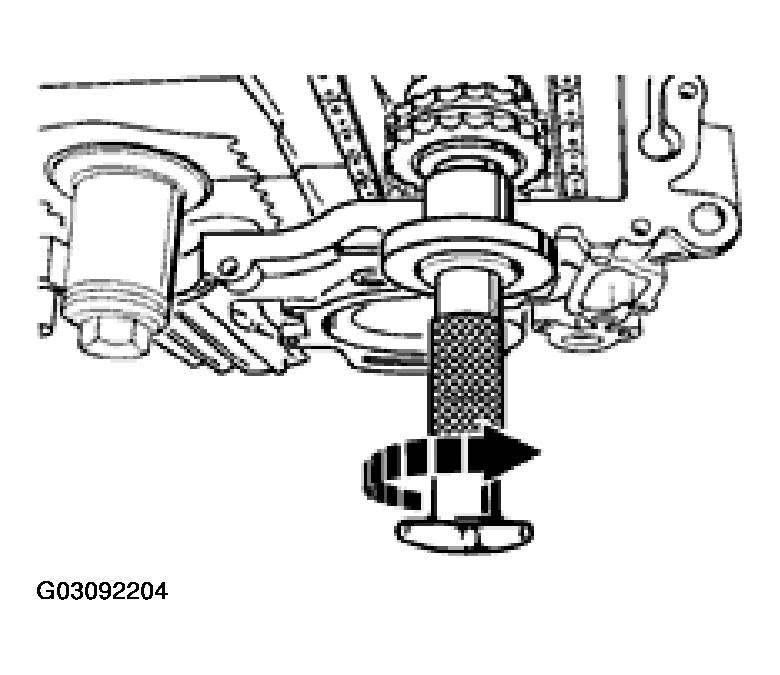

   Fig 2: Placing Special Tool 9645 On The Receiving Bore Of The Oil Pump

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
5. Before fitting the crankcase half, have a second person pull the drive chain out of the chain space using a wire.
6. Do not damage the sealing bead when setting the crankcase half in place.
7. Fasten crankcase half. Tightening torque: 13 Nm (10 ft.lb). Remove emerging silicone material.

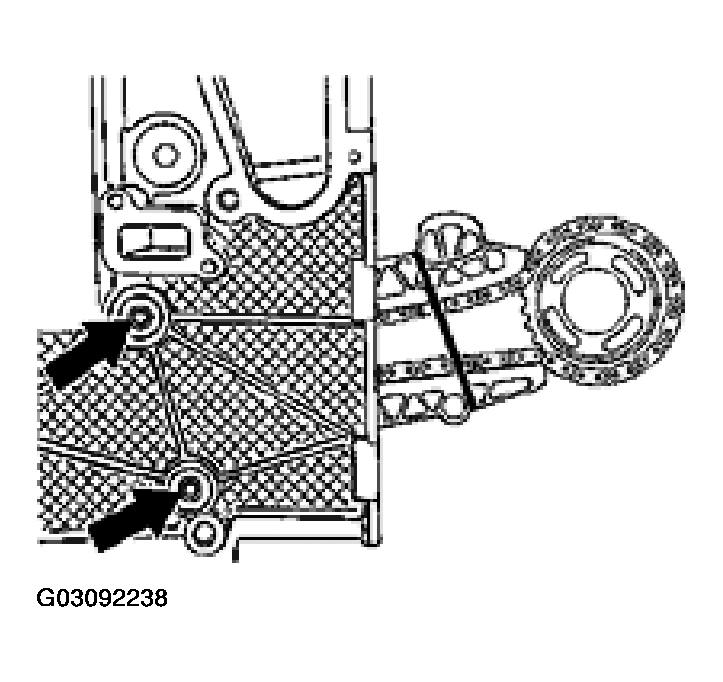

   Fig 3: Fastening Crankcase Half

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
8. Turn the centering mandrel anti-clockwise and remove. Remove silicone residue.

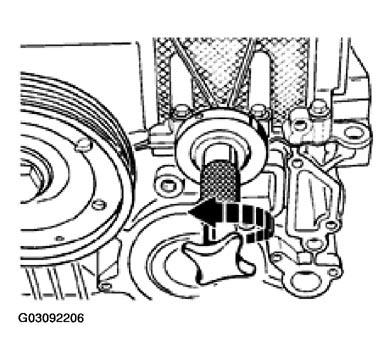

   Fig 4: Removing Centering Mandrel

   Courtesy of PORSCHE OF NORTH AMERICA, INC.

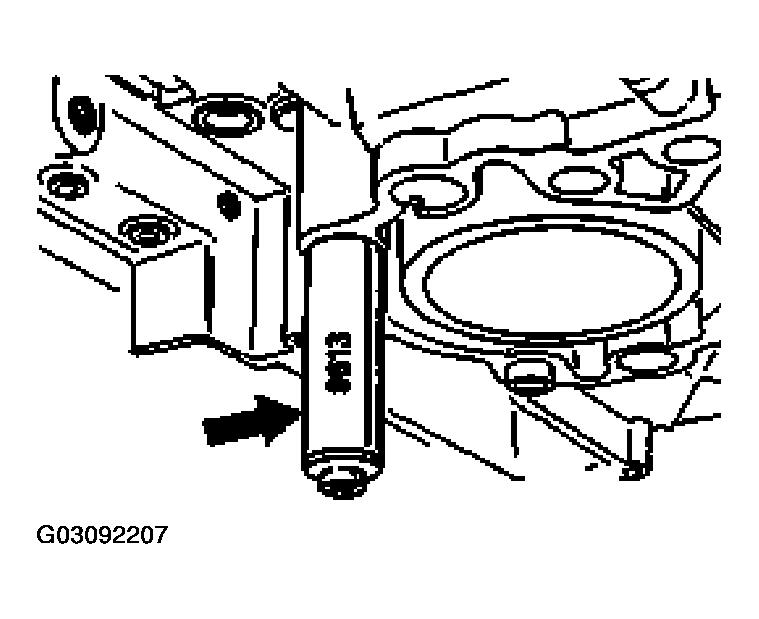

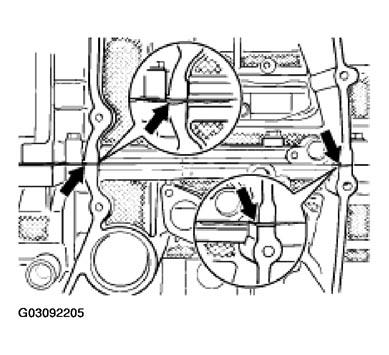

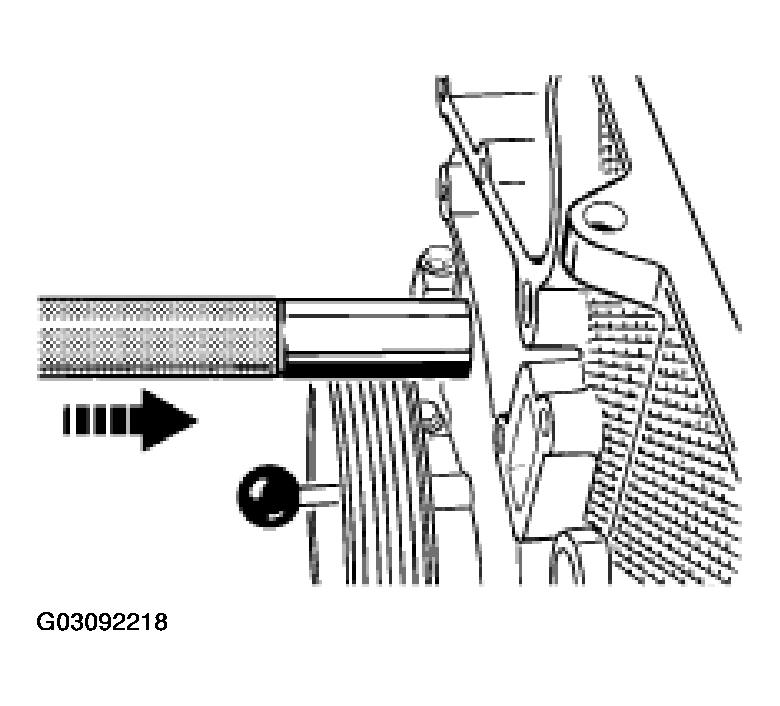

9. Remove special tool 9613.
   Fig 5: Removing Special Tool 9613

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
10. Fit belt pulley. Screw in fastening screw by hand. Cylinder bank 4 - 6 faces upward. Bore U6 on the belt pulley must be aligned with the fixing bore on the crankcase. Position or fix with fixing pin (short) of special tool 9595.

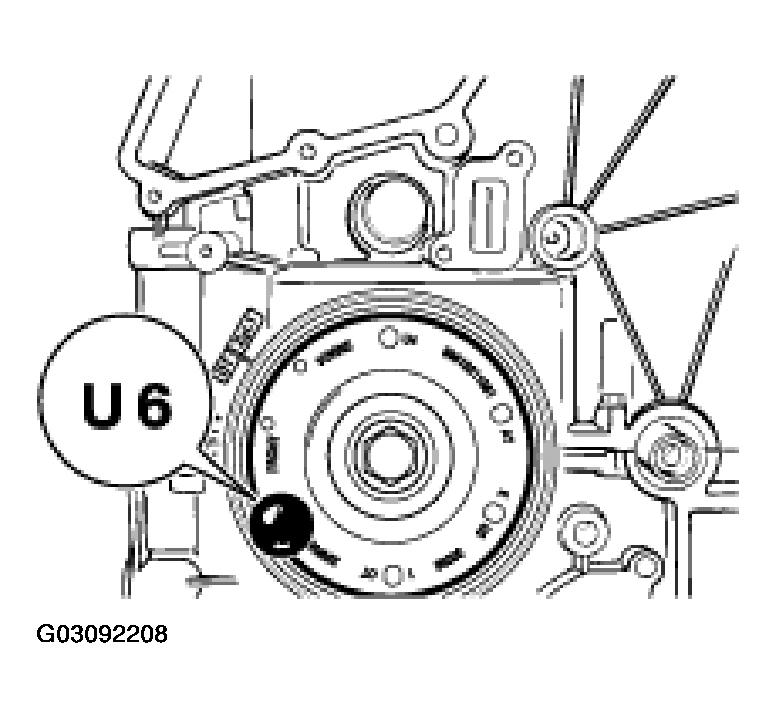

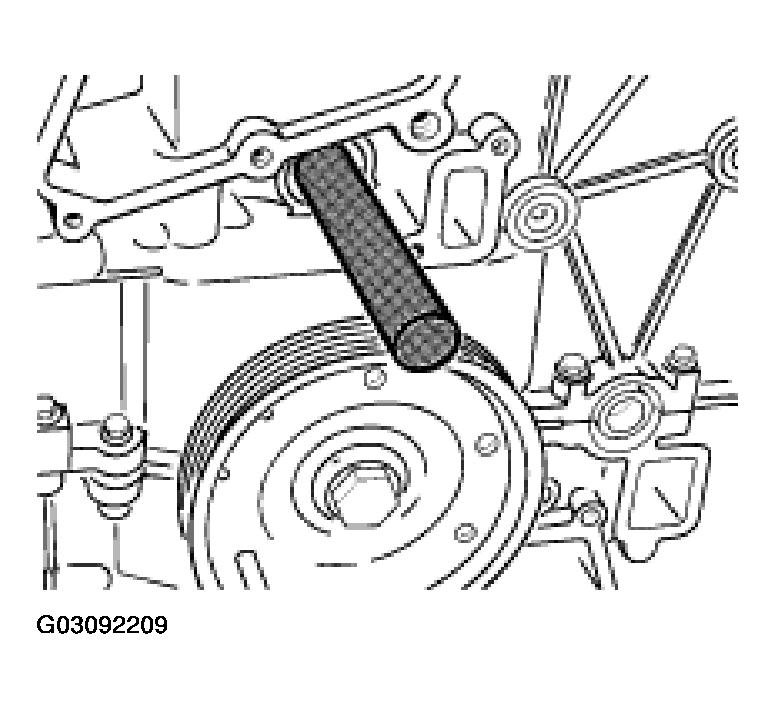

    Fig 6: Identifying Bore U6

    Courtesy of PORSCHE OF NORTH AMERICA, INC.
    NOTE:

    • Fixing of the belt pulley is absolutely necessary in order to ensure precise fitting of the pistons.

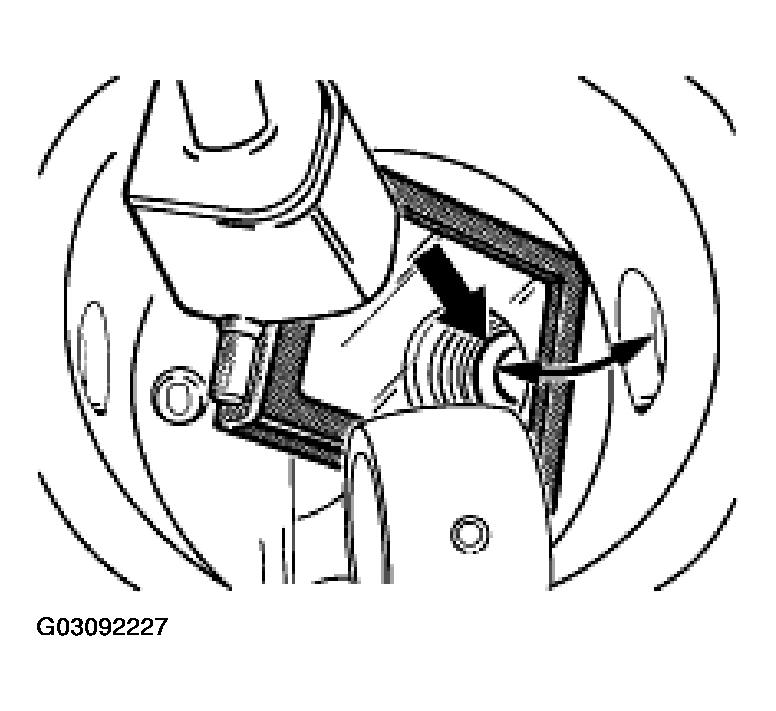

11. Align connecting rod of cylinder 6. Insert centering mandrel, special tool 9608, in the assembly bore.

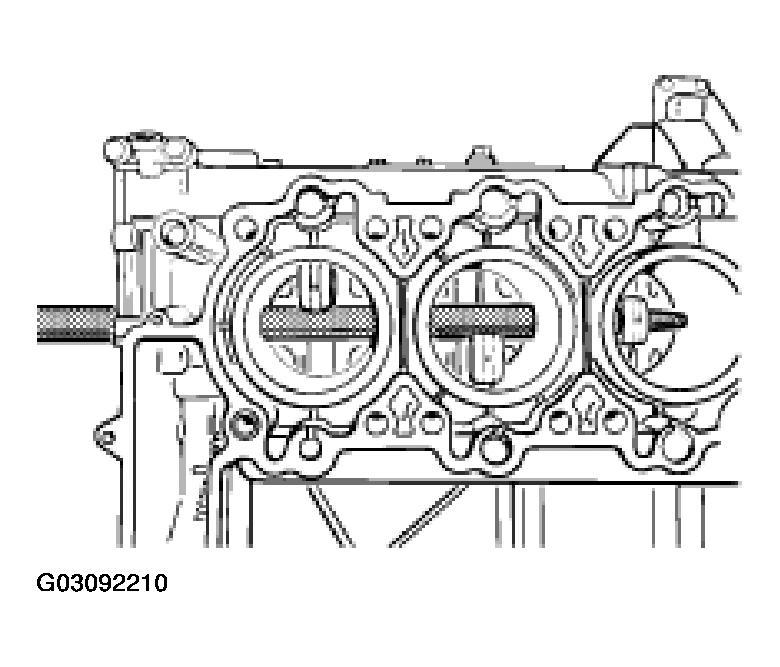

    Fig 7: Inserting Centering Mandrel, Special Tool 9608, In The Assembly Bore

    Courtesy of PORSCHE OF NORTH AMERICA, INC.

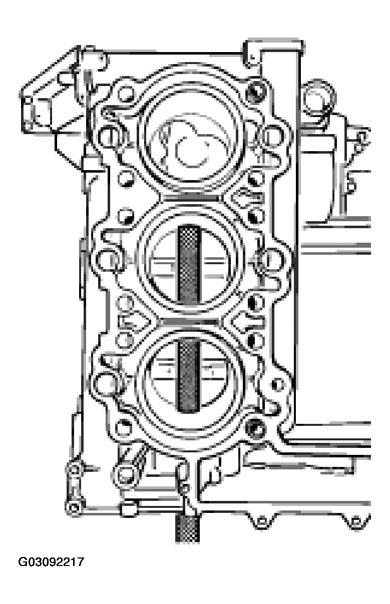

    Fig 8: View Of Centering Mandrel In The Assembly Bore

    Courtesy of PORSCHE OF NORTH AMERICA, INC.
    NOTE:

    • The centering mandrel remains in the eye of the connecting rod until the piston contacts the centering mandrel during fitting.
12. Install piston of cylinder 6.

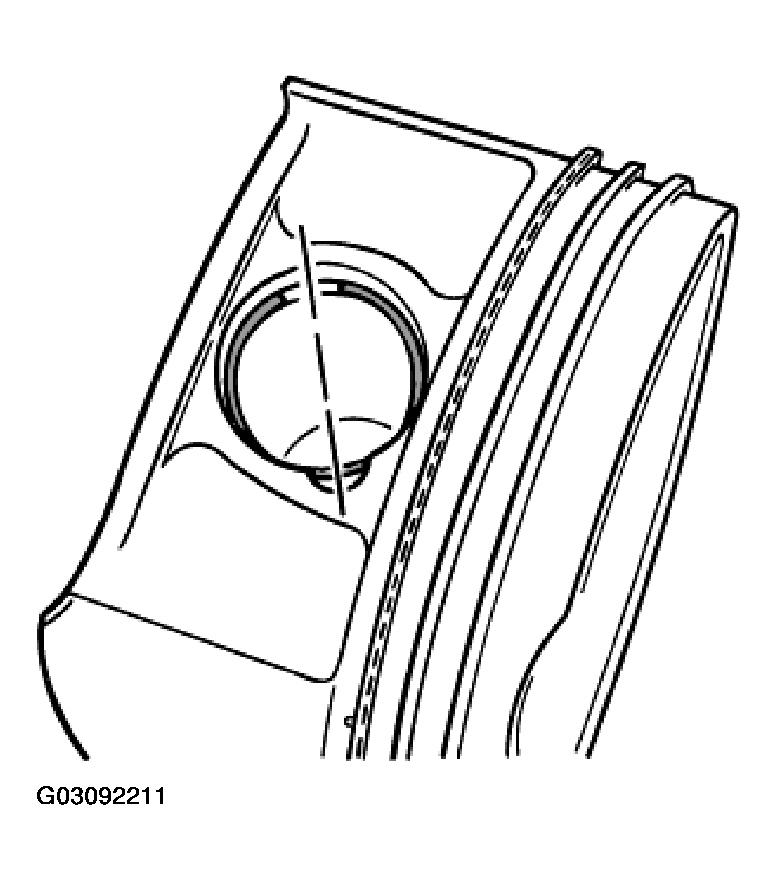

    1. Check whether the piston pin circlip is present and was fitted correctly (flywheel side). The piston circlip opening must lie opposite the groove in the piston.
       Fig 9: Identifying Piston Pin Circlip

       Courtesy of PORSCHE OF NORTH AMERICA, INC.
    2. Before installation, check whether the assembly tube (2) can be moved easily in the piston; remove burr if necessary.

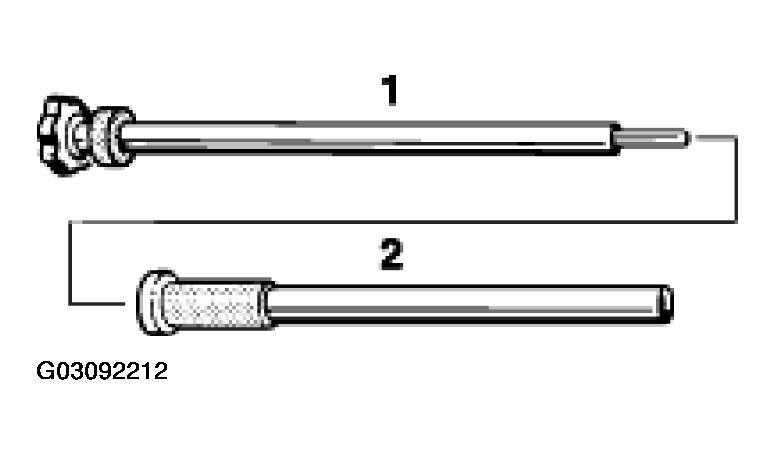

       Fig 10: Identifying Assembly Tube

       Courtesy of PORSCHE OF NORTH AMERICA, INC.

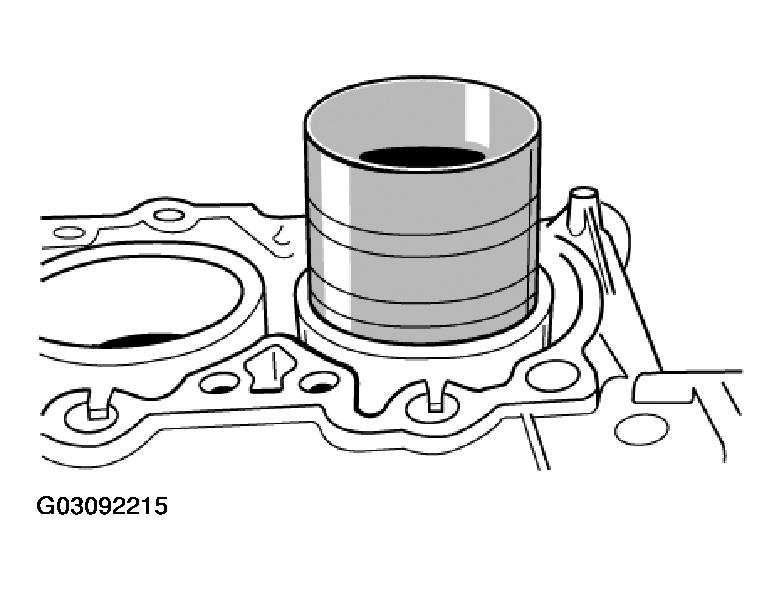

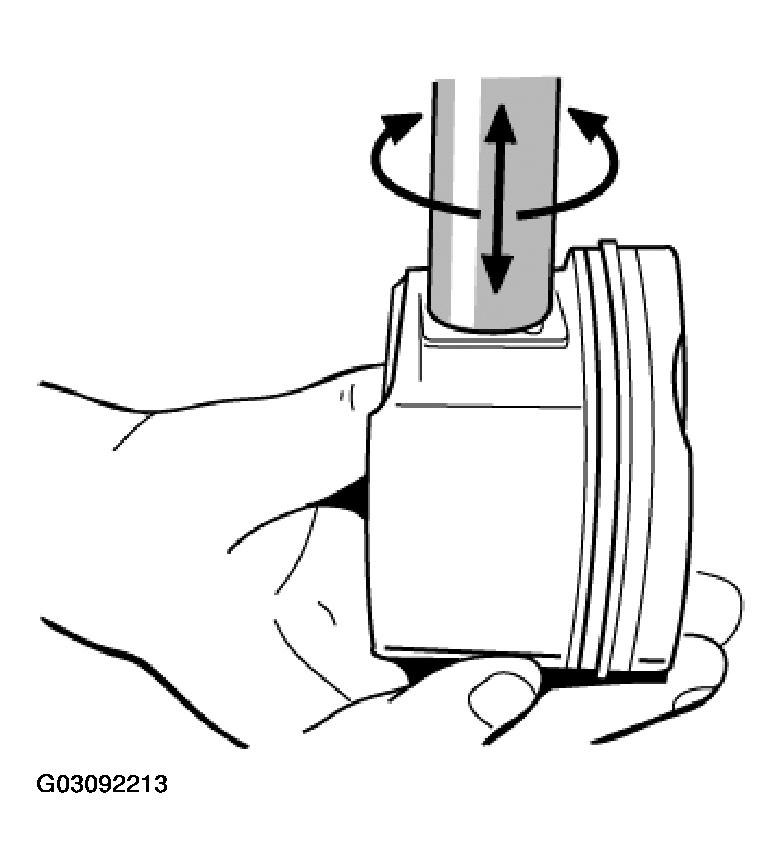

    Fig 11: Inserting Assembly Tube In Piston

    Courtesy of PORSCHE OF NORTH AMERICA, INC.
13. Move piston to installation position, position the piston ring restraining strap and insert the piston.

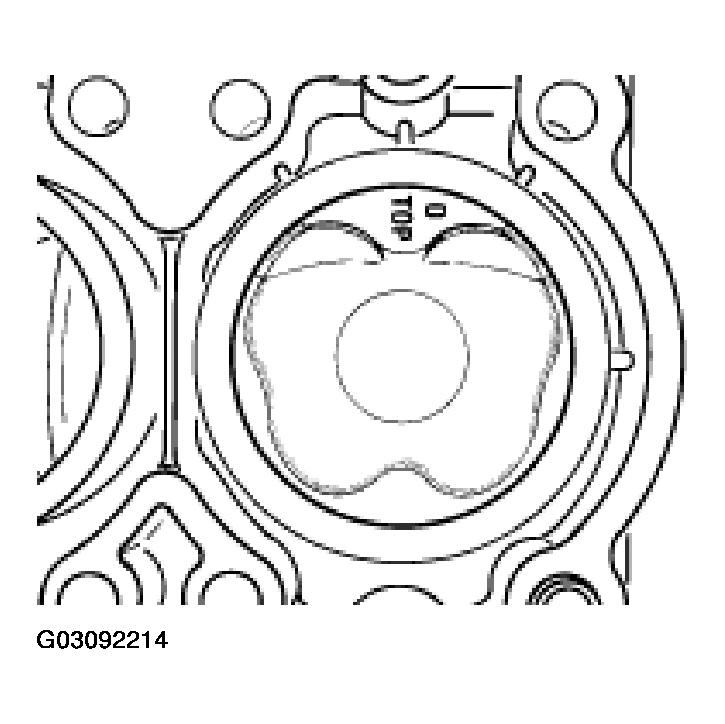

    Fig 12: Identifying Piston Installation Position

    Courtesy of PORSCHE OF NORTH AMERICA, INC.
    Fig 13: Installing Piston

    Courtesy of PORSCHE OF NORTH AMERICA, INC.
    NOTE:

    • Generously coat the piston, cylinder and restraining strap with engine oil before fitting the piston.
14. Use the handle of a hammer to tap the piston into the cylinder while firmly pressing on the edge of the restraining strap. Use protective gloves.
    NOTE:

    • The piston must be fitted in the cylinder carefully and with feeling. If the resistance increases, immediately interrupt the assembly process.

    Reposition the piston ring restraining strap and repeat the assembly operation.

15. Centre the piston in the cylinder bore and carefully push it down with the assembly aid (special tool 9698) to the centering mandrel stop.

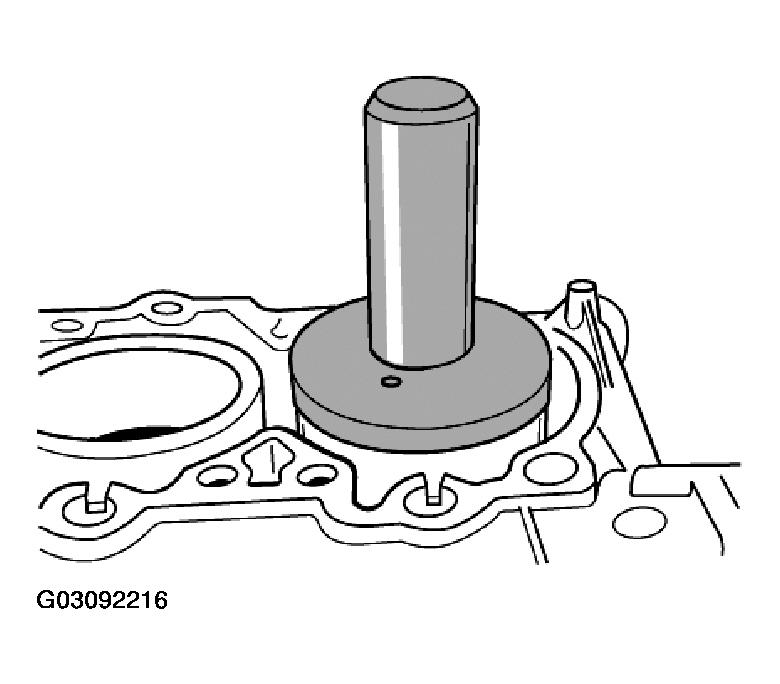

    Fig 14: Installing Special Tool 9698 To Piston

    Courtesy of PORSCHE OF NORTH AMERICA, INC.
16. Carefully withdraw the centering mandrel and push the piston down to the stop.
17. Align piston and connecting rod again using the centering mandrel.
    Fig 15: Aligning Piston And Connecting Rod Using The Centering Mandrel

    Courtesy of PORSCHE OF NORTH AMERICA, INC.
18. Push in piston pin as far as it will go using the pressure pin of special tool 9602.

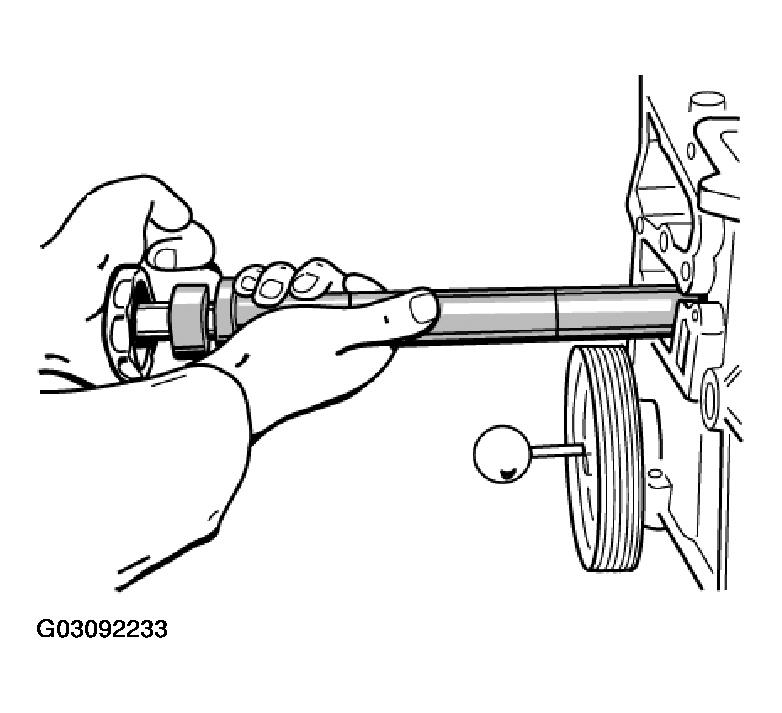

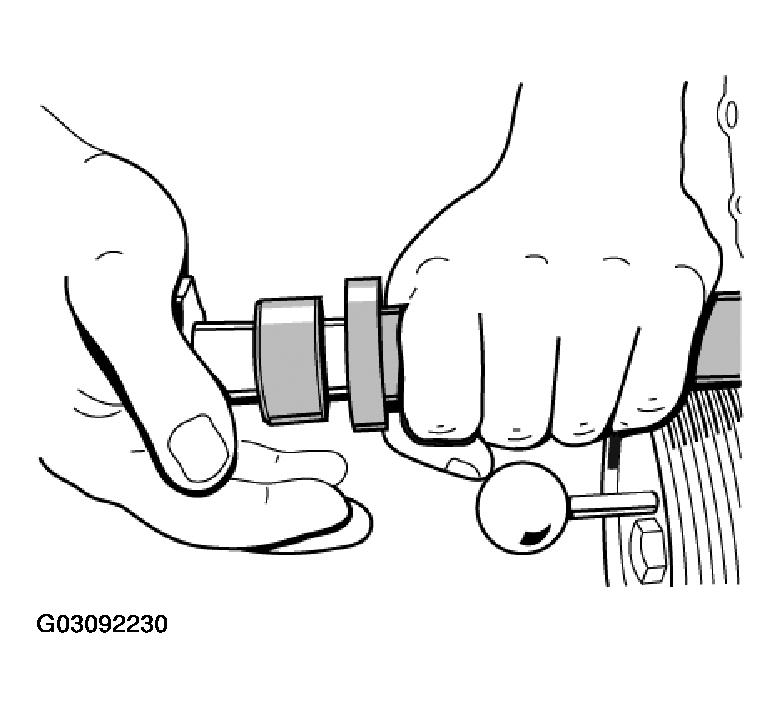

    Fig 16: Pushing In Piston Pin Using The Pressure Pin Of Special Tool 9602

    Courtesy of PORSCHE OF NORTH AMERICA, INC.
    Fig 17: Aligning Piston And Connecting Rod Using The Centering Mandrel

    Courtesy of PORSCHE OF NORTH AMERICA, INC.
19. Prepare piston pin circlip for fitting on the piston. It is important to pre-fit the circlip on a firm surface. The circlip must be pre-fitted only immediately prior to fitting on the piston pin eye.

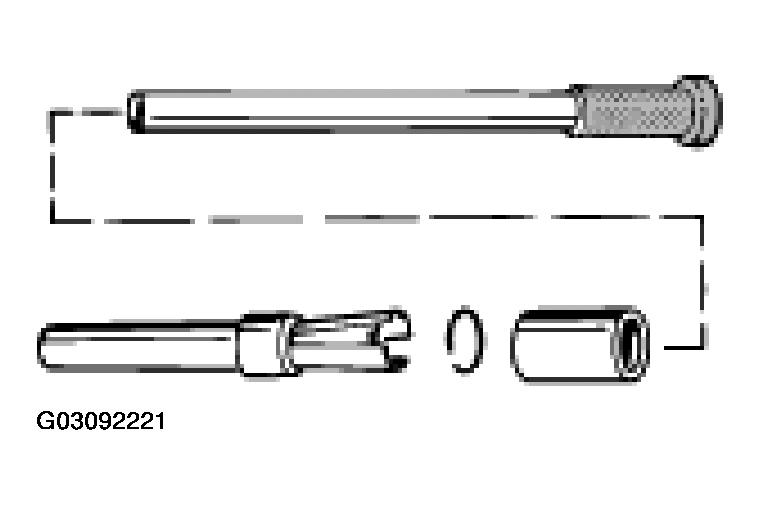

    1. Manually insert the new circlip into the conical part of the assembly sleeve, special tool 9603.

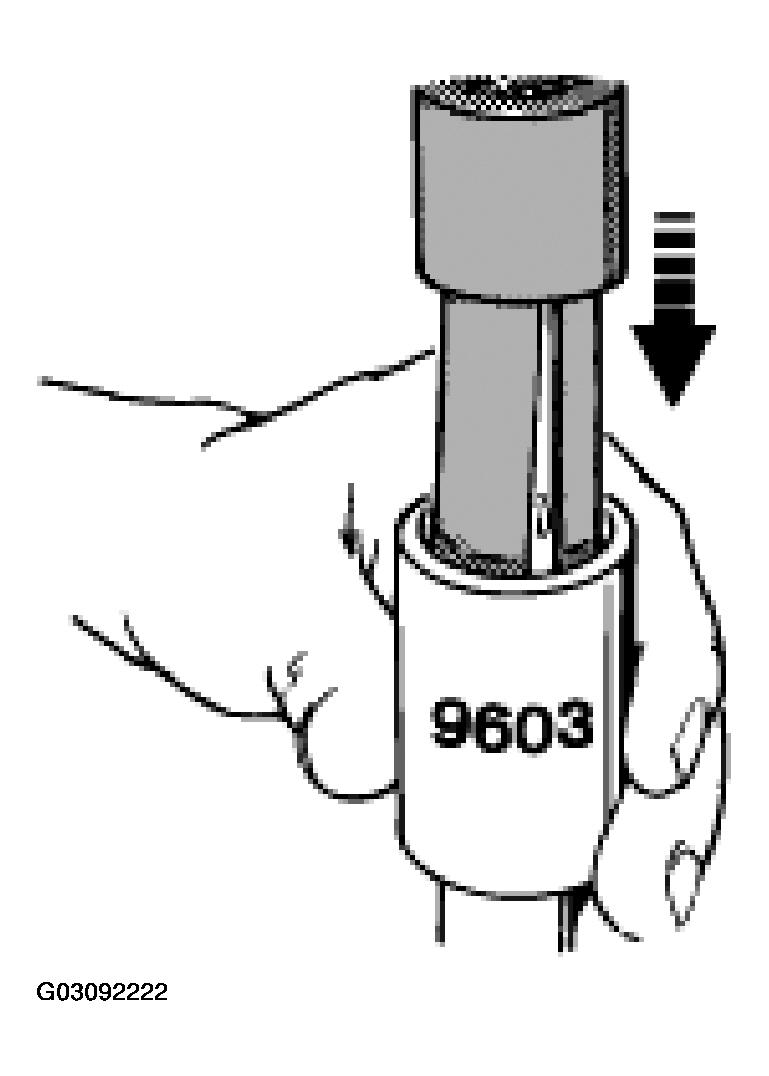

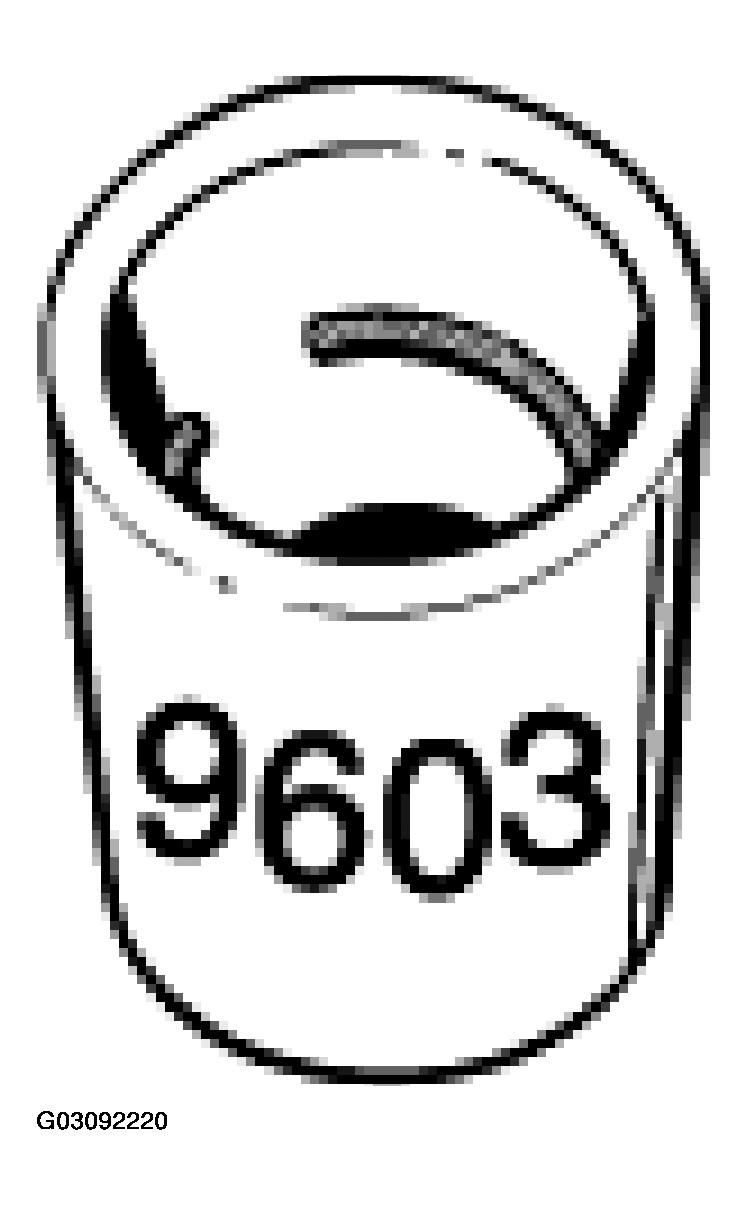

       Fig 18: Identifying Special Tool 9603

       Courtesy of PORSCHE OF NORTH AMERICA, INC.
    2. Place assembly sleeve 9603 onto the assembly tube of special tool 9602. Use assembly aid, special tool 9500/3, to slide the circlip from the conical sleeve into the assembly tube.
       Fig 19: Identifying Assembly Sleeve

       Courtesy of PORSCHE OF NORTH AMERICA, INC.

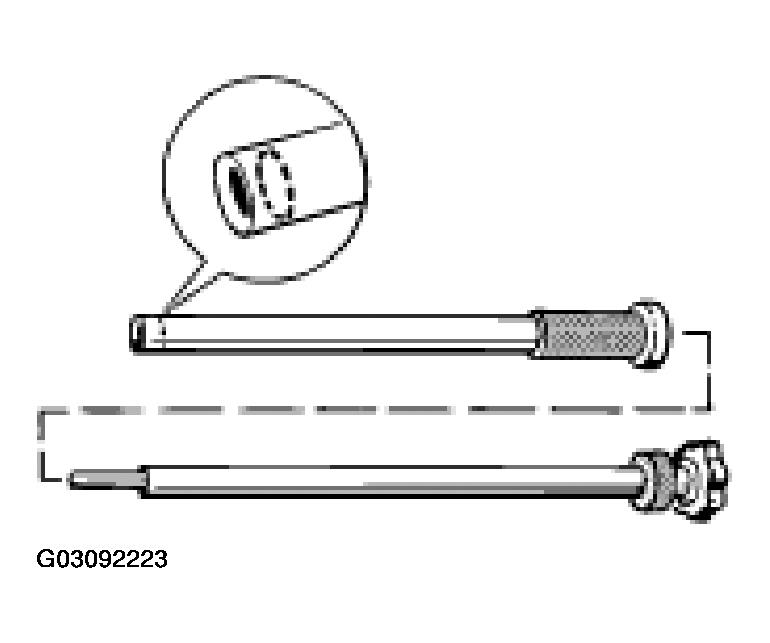

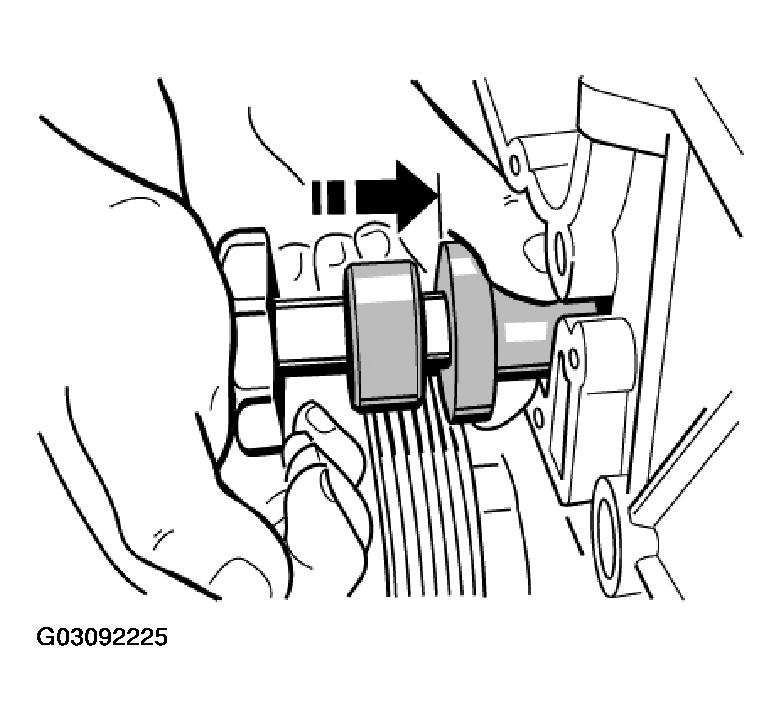

       Fig 20: Identifying Special Tool 9602

       Courtesy of PORSCHE OF NORTH AMERICA, INC.
    3. Remove assembly sleeve 9500/3 and visually inspect the correct position of the circlip in the assembly tube.
       Fig 21: Removing Assembly Sleeve

       Courtesy of PORSCHE OF NORTH AMERICA, INC.

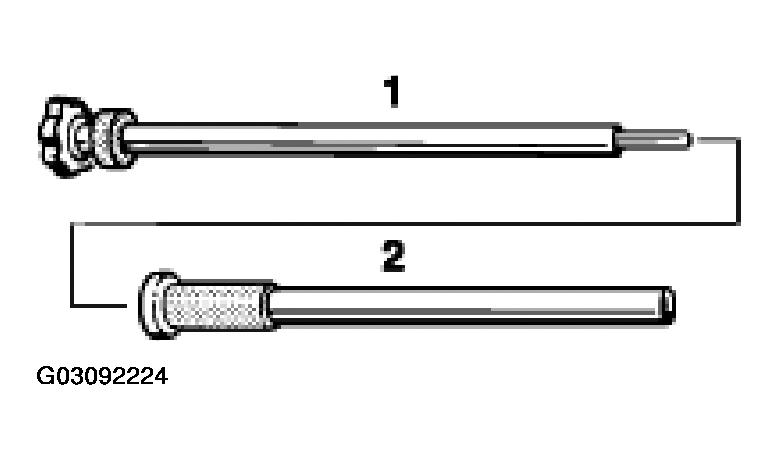

    4. Carefully insert the pressure pin (1) of special tool 9602 into the assembly tube (2) until it contacts the piston pin circlip. The circlip can pop out of the assembly tube in the case of improper handling - danger of injury!
       Fig 22: Identifying Pressure Pin And Assembly Tube

       Courtesy of PORSCHE OF NORTH AMERICA, INC.
20. Carefully insert the complete unit, consisting of assembly tube with pressure pin, into the crankcase assembly bore. Press or position the assembly tube against the crankcase. Turn the assembly tube to move the piston pin circlip to the correct position. The piston circlip opening should lie opposite the groove in the piston for fitting. Mark the assembly tube. Move the piston pin circlip to the correct installation position by briefly and forcefully striking the palm against the handle of the pressure pin. Move the piston pin circlip to its installation position by briefly and forcefully striking the palm against the star knob of the pressure pin.
    Fig 23: Inserting Assembly Tube With Pressure Pin Into The Crankcase Assembly Bore

    Courtesy of PORSCHE OF NORTH AMERICA, INC.
21. Visually inspect correct seating of the piston pin circlip, for example, with a shop-made electric torch with mirror.

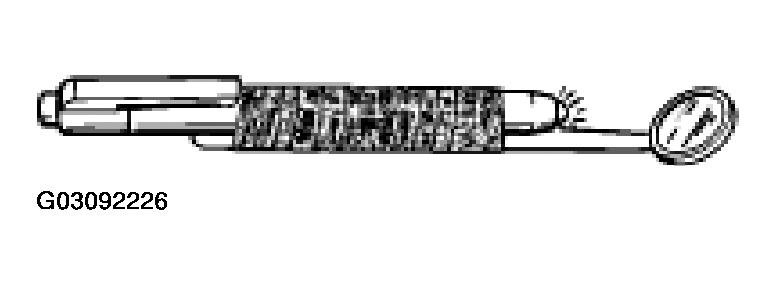

    Fig 24: Shop-Made Electric Torch With Mirror

    Courtesy of PORSCHE OF NORTH AMERICA, INC.
    Fig 25: Visually Inspect Correct Seating Of The Piston Pin Circlip

    Courtesy of PORSCHE OF NORTH AMERICA, INC.

    Drawing shows a torch with adjustable mirror.

22. Fitting piston in cylinder 5. Advance the crankshaft clockwise until bore U5 on the belt pulley is aligned with the fixing bore on the crankcase. Position or fix with fixing pin.

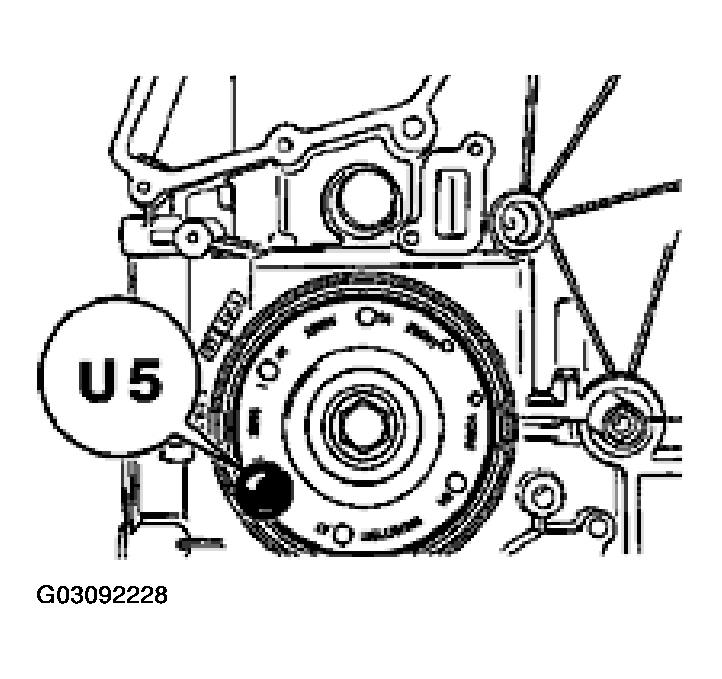

    Fig 26: Identifying Bore U5 On The Belt Pulley

    Courtesy of PORSCHE OF NORTH AMERICA, INC.
23. Perform the following assembly steps for piston installation in cylinder 5 as described from Steps  11 to  21. Deviating assembly steps as from Step  24.

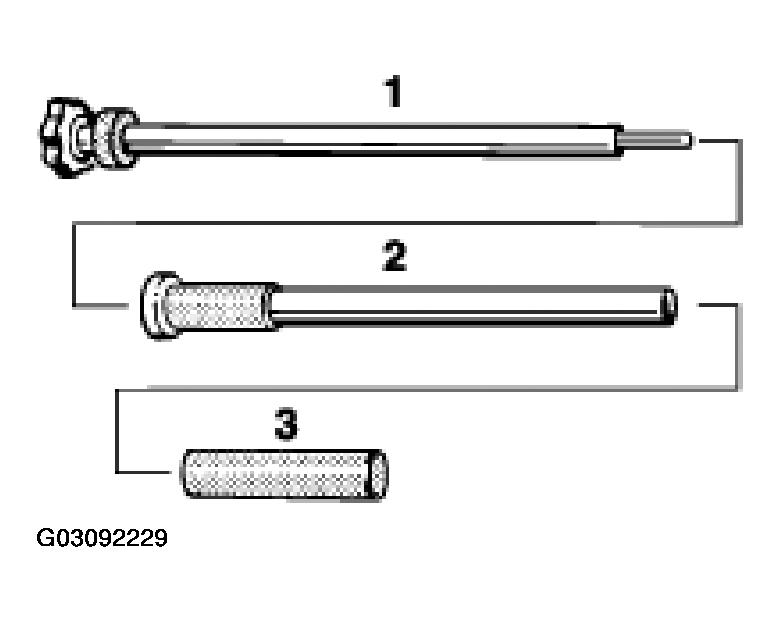

24. A spacer sleeve (3) is additionally required when fitting the piston pin circlip in the piston of cylinder 5.
    Fig 27: Identifying Spacer Sleeve

    Courtesy of PORSCHE OF NORTH AMERICA, INC.
    Fig 28: Fitting Piston Pin Circlip In Cylinder 5

    Courtesy of PORSCHE OF NORTH AMERICA, INC.
25. Fitting piston in cylinder 4. Advance the crankshaft clockwise until bore U4 on the belt pulley is aligned with the fixing bore on the crankcase. Position or fix with fixing pin.

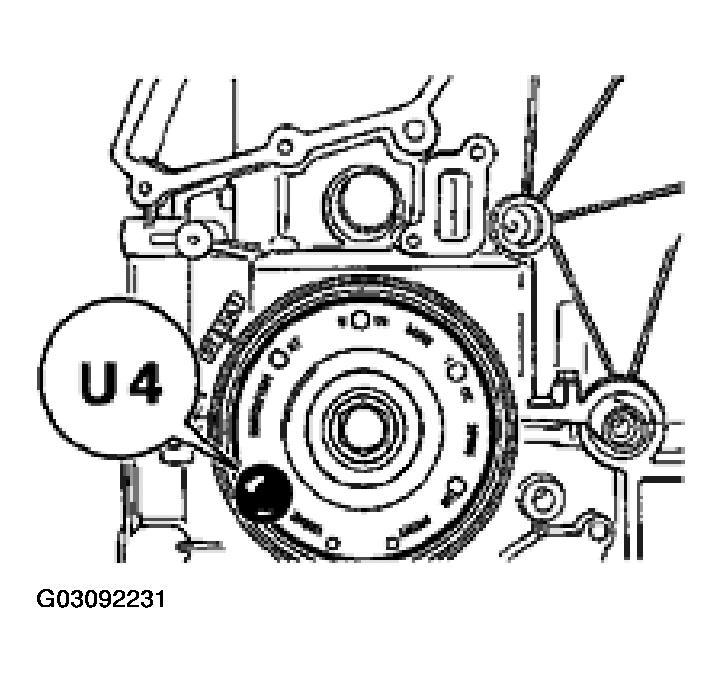

    Fig 29: Identifying Bore U4 On The Belt Pulley

    Courtesy of PORSCHE OF NORTH AMERICA, INC.
26. Perform the following assembly steps for piston installation in cylinder 4 as described from Steps  11 to  21. Deviating assembly steps as from Step  27.

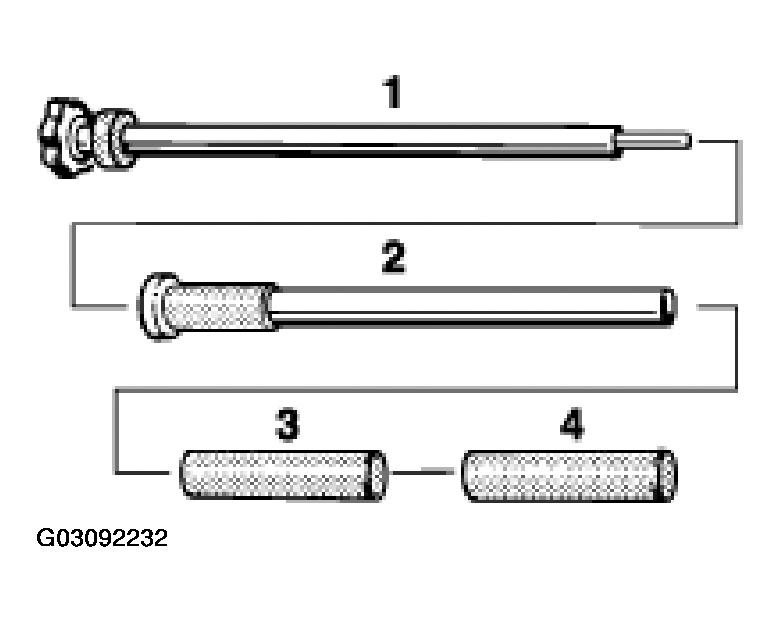

27. Two spacer sleeves (3 + 4) are additionally required when fitting the piston pin circlip in the piston of cylinder 4.
    Fig 30: Identifying Spacer Sleeve

    Courtesy of PORSCHE OF NORTH AMERICA, INC.
    Fig 31: Fitting Piston Pin Circlip In Piston Of Cylinder 4

    Courtesy of PORSCHE OF NORTH AMERICA, INC.

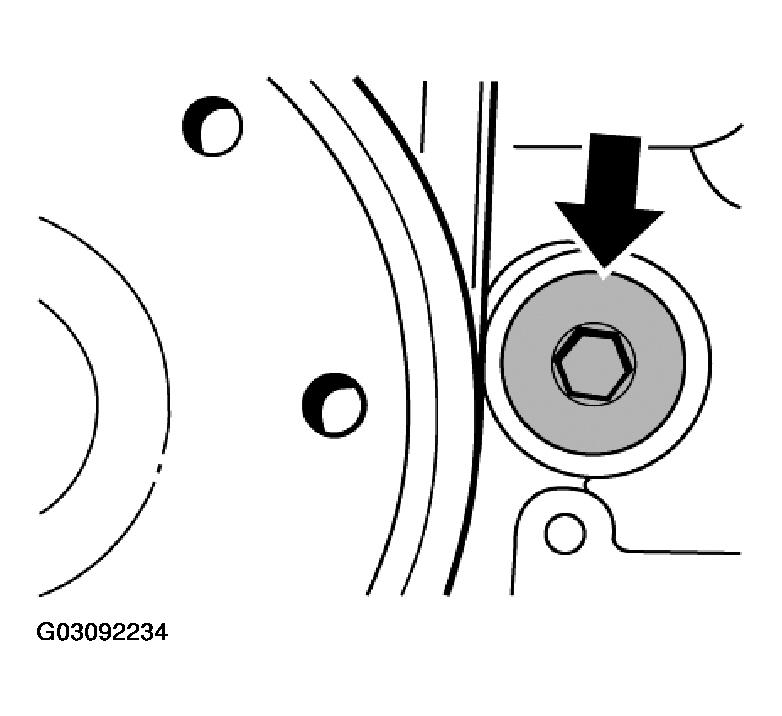

28. After fitting the pistons, fit a screw plug and new sealing ring in the assembly bore. Use a 12 mm hexagon socket wrench insert. Tightening torque: 80 Nm (59 ft.lb)
    Fig 32: Fitting A Screw Plug And New Sealing Ring In The Assembly Bore

    Courtesy of PORSCHE OF NORTH AMERICA, INC.
29. Fit guide rails of cylinder bank 1 - 3 (flywheel side); fit guide rails in correct position.

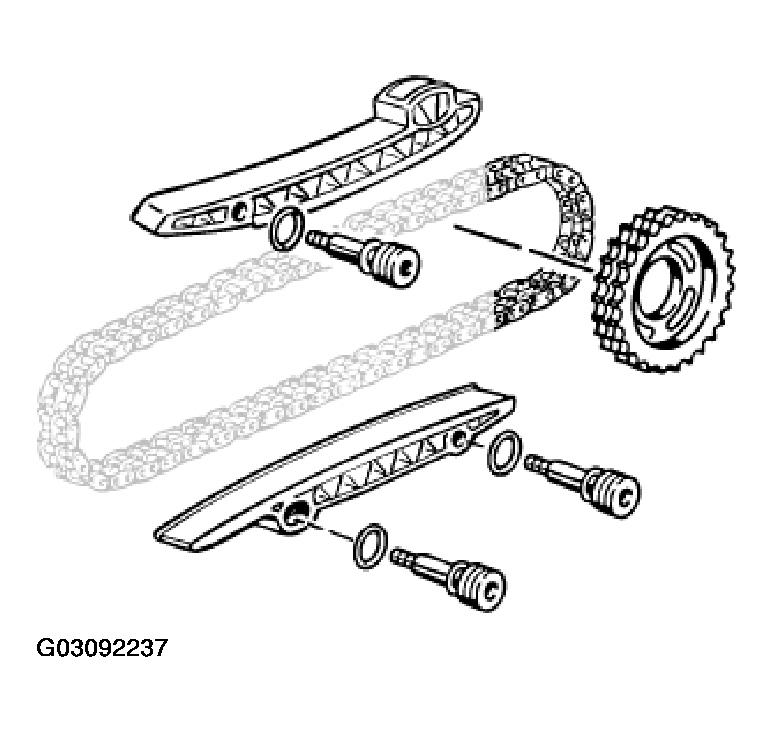

    Fig 33: Exploded View Of Guide Rails - Cylinder Bank 1-3

    Courtesy of PORSCHE OF NORTH AMERICA, INC.

    View from the belt pulley side

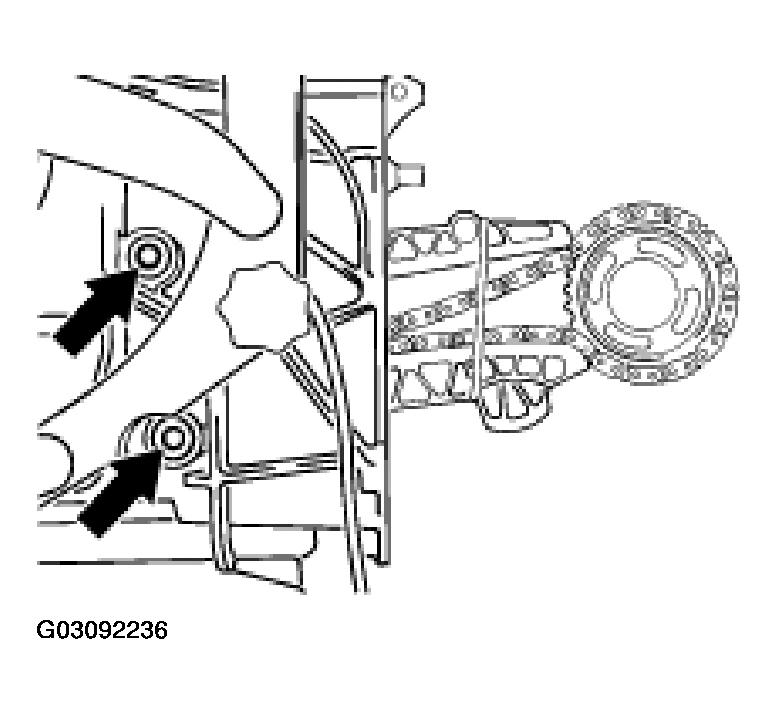

    Fig 34: View Of Guide Rails From Belt Pulley Side - Cylinder Bank 1-3

    Courtesy of PORSCHE OF NORTH AMERICA, INC.

    View from the flywheel side

30. Fit guide rails of cylinder bank 4-6 (pulley side); fit guide rails in correct position.
    Fig 35: Exploded View Of Guide Rails Of Cylinder Bank 4-6

    Courtesy of PORSCHE OF NORTH AMERICA, INC.

    View from the belt pulley side

    Fig 36: View Of Guide Rails Of Cylinder Bank 4-6 From Belt Pulley Side

    Courtesy of PORSCHE OF NORTH AMERICA, INC.

    View from the belt pulley side

31. Fit oil pump with coolant guide housing. See REMOVING AND INSTALLING OIL PUMP WITH COOLANT GUIDE HOUSING .
    Fig 37: Fitting Oil Pump With Coolant Guide Housing Assembly

    Courtesy of PORSCHE OF NORTH AMERICA, INC.
32. Fit intermediate shaft flange. Grease sealing ring in area of intermediate shaft flange. Grease receiver bore in area of the crankcase. Carefully press in the intermediate flange. Screw in new micro-encapsulated hexagon-head bolts M6 x 20 (3 ea.). Tightening torque: 10 Nm (7.5 ft.lb) Tighten locknut with the socket wrench, special tool 9110. For this purpose, hold with a slotted screwdriver 7.0 x 1.1 at the slotted threaded pin. Tightening torque: 10 Nm (7.5 ft.lb). Further assembly instructions see REMOVING AND INSTALLING SEALING RING FOR INTERMEDIATE SHAFT .

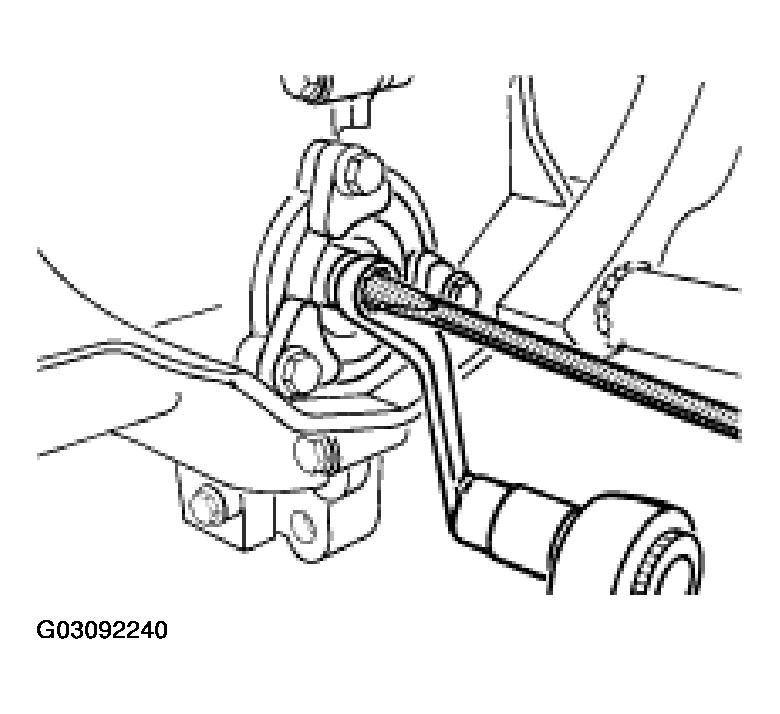

    Fig 38: Installing Special Tool (9110) To Intermediate Shaft Flange

    Courtesy of PORSCHE OF NORTH AMERICA, INC.
33. Fit belt pulley.

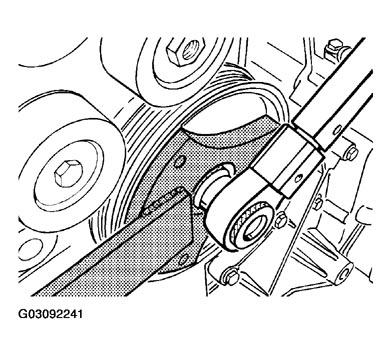

Tighten hexagon-head bolt using the socket wrench insert 9594; simultaneously hold with retaining device 9593.

Tightening torque: 50 Nm (37 ft.lb)

Fig 39: Tightening Hexagon-Head Bolt On Belt Pulley

Courtesy of PORSCHE OF NORTH AMERICA, INC.

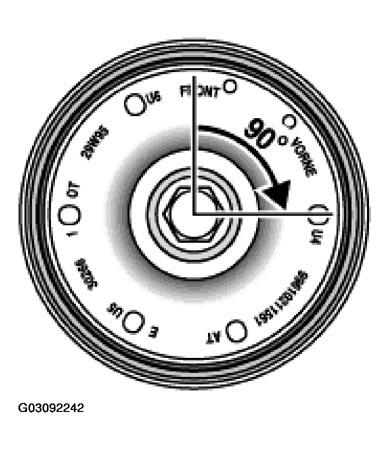

Fig 40: Illustrating Angle Tightening
