Removing And Installing Oil Protection Tube - Engine Removed: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Coat sealing rings with tire mounting paste. Push tube onto pressure piece, special tool 9605. Place hand pressure piece, special tool 9604, onto the pressure piece.

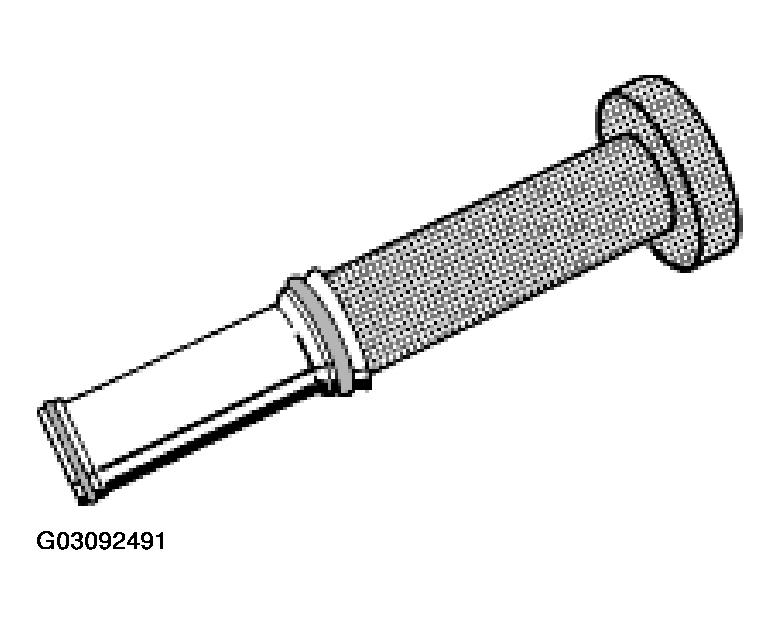

Fig 1: Pushing Oil Protection Tube Onto Pressure Piece
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Manually press the oil protection tube as far as it will go into the fitted cylinder-head cover.

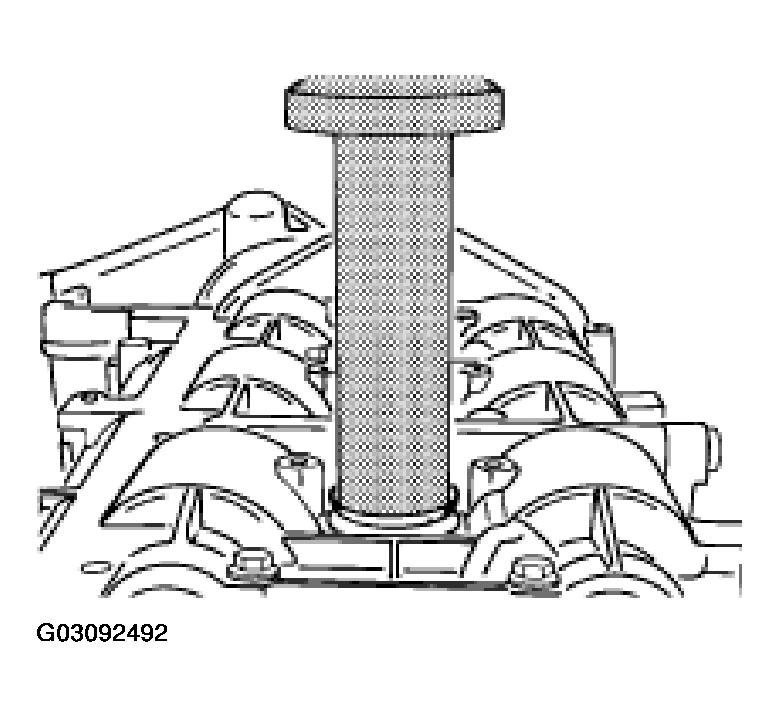

Fig 2: Pressing Oil Protection Tube Into The Fitted Cylinder-Head Cover
Courtesy of PORSCHE OF NORTH AMERICA, INC.
