Removing And Installing Oil Protection Tube - Engine Installed: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

INSTALLING PROCEDURE OF OIL PROTECTION TUBE

No.

Procedure

Instructions

5⁽¹⁾

Pulling off oil protection tube

Fit washer (approx. 40 mm) and hexagon nut (M10) on the threaded rod. Press oil protection tube outward using two mounting levers, always using a suitable wooden support.

6⁽¹⁾

Fitting oil protection tube

Fit new sealing rings and coat with tire mounting paste. Using the pressure piece (special tool 9605/1) and hand pressure piece (special tool 9604), manually press in the oil protection tube as far as it will go.

Fitting spark plug

Fit spark plug with the prescribed spark-plug wrench. Tightening torque 25 5 Nm (19 3.5 ft.lb)

Fitting ignition coil

Tightening torque 10 Nm (7.5 ft.lb)

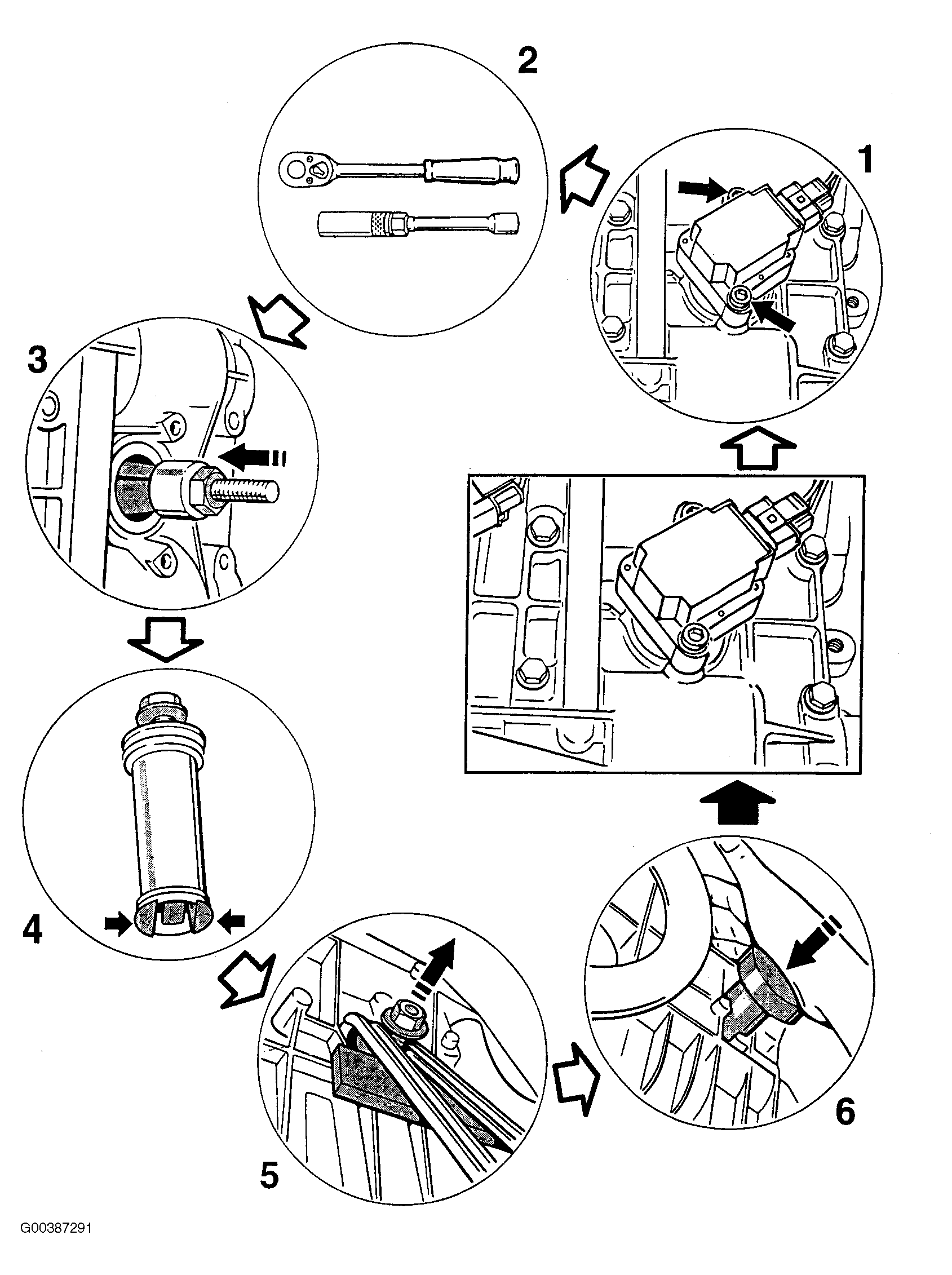

⁽¹⁾	For explanation see Figure.
