Installing Drive Belt

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
INSTALLATION PROCEDURE FOR DRIVE BELT

No. Procedure Instructions
4 Fit and tension the drive belt Fit drive belt by hand, slightly pre-tensioned, in the following sequence:
  1. Coolant pump drive pulley (1)
  2. Alternator drive pulley (2)
  3. Deflection roller 1 (3)
  4. Power steering pump drive pulley (4)
  5. Air-conditioning compressor drive pulley (5)
  6. Crankshaft pulley (6)
  7. Tensioning roller (7)
    Then turn the tensioning roller (7) clockwise and simultaneously fit the drive belt onto the tensioning roller 2 (8). Slowly relieve the tensioning roller.
Check that the belt is correctly seated on all drive pulleys.
  Fit rear wall lining, rear wall cover and left seat Insert rear wall lining in the lower area behind the heel sheet metal coating.
Secure rear wall lining with seven hexagon head bolts and two hexagon nuts.
Tightening torque: 10 Nm (7.5 ft.lb).
Connect electrical plug connection and secure seat. Tightening torque of the Torx screws: 20 Nm (15 ft.lb).

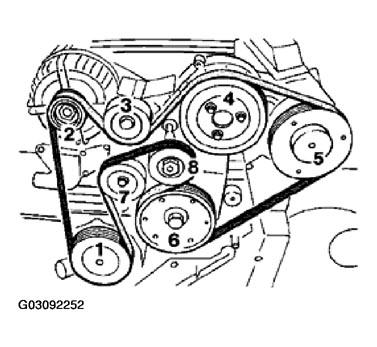

(1) For drive belt component identification, see Figure.
