Removing And Installing Deflection Rollers For Drive Belt
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

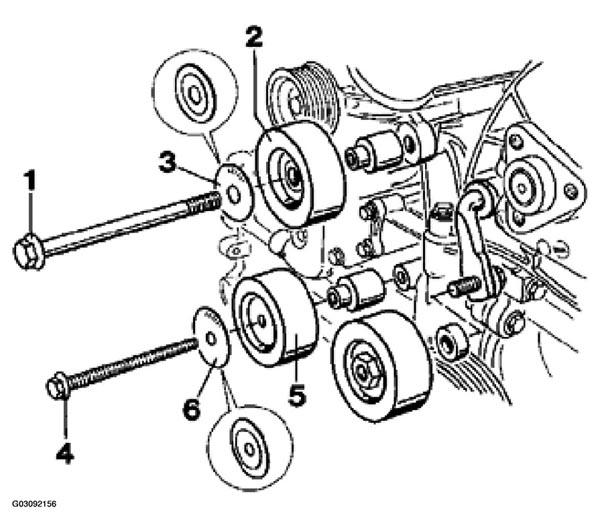

REMOVAL AND INSTALLATION PROCEDURE OF DEFLECTION ROLLERS
| No. | Designation | Qty. | Removal | Installation | ||
|---|---|---|---|---|---|---|
| 1(1) | Hexagon-head bolt M10 x 145 | 1 | Tightening torque 65 Nm (48 ft.lb) | |||
| 2(1) | Deflection roller 1 with spacer pin | 1 | Check for smooth running or roughness before undoing | |||
| 3(1) | Cover plate | When fitting a curved cover plate, observe the installation position. The inscription must face the bolt head. | ||||
| 4(1) | Hexagon-head bolt M8 x 55 | 1 | Tightening torque 23 Nm (17 ft.lb) | |||
| 5(1) | Deflection roller 2 with spacer pin | 1 | Check for smooth running or roughness before undoing | |||
| 6(1) | Cover plate | 1 | When fitting a curved cover plate, observe the installation position. The inscription must face the bolt head. | |||
|
||||||
