Removing And Installing Crankshaft Sealing Ring - Flywheel Side: Tools

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

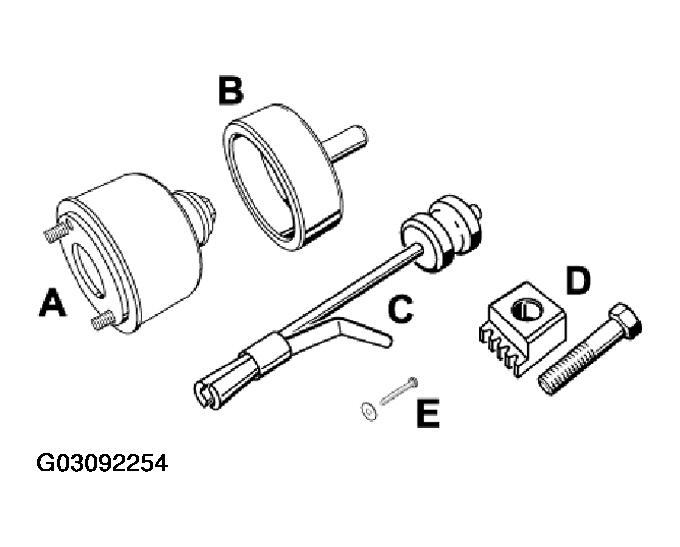

Fig 1: Identifying Special Tools

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SPECIAL TOOLS

Item

Designation

Remarks

-A- ⁽¹⁾

for installing shaft seal in correct position

-B- ⁽¹⁾

for checking the correct crankshaft position to the crankcase

-C- ⁽¹⁾

-D- ⁽¹⁾

Fasten with hexagon-head bolt M12 x 50

-E- ⁽¹⁾

Sheetmetal screw with washer

⁽¹⁾	For explanation see Fig 1
