Tightening Sequence

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

TIGHTENING SEQUENCE - BELT PULLEY

Initial tightening	50 Nm (37 ft.lb.)
Final tightening	1 x 90° turn

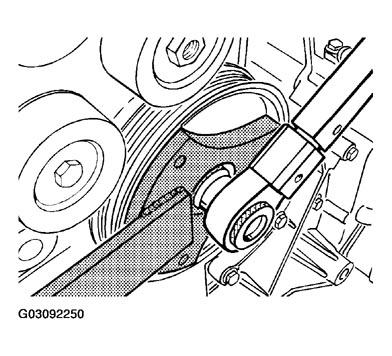

Fig 1: Tightening Belt Pulley Hexagon-Head Bolt

Courtesy of PORSCHE OF NORTH AMERICA, INC.

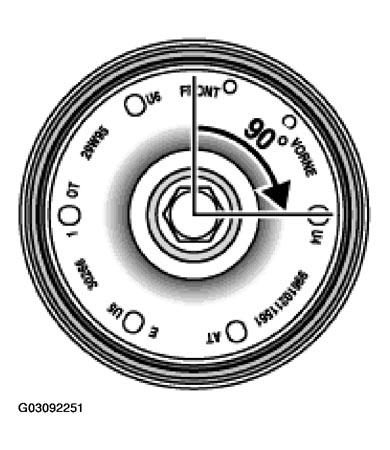

Fig 2: Ilustrating Angle Tightening

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

Visually inspect the condition of the belt; remove foreign objects from the grooves if necessary.

Observe running direction (color pen marking).
