Removing And Installing Crankshaft Sealing Ring - Engine Installed (Pulley Side): Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect battery.
Remove left-hand seat. Disconnect the electrical plug connection. Undo four Torx screws with socket TX 50 (3/8 inch). Put on floor protection cover.
Remove rear wall lining and rear wall cover

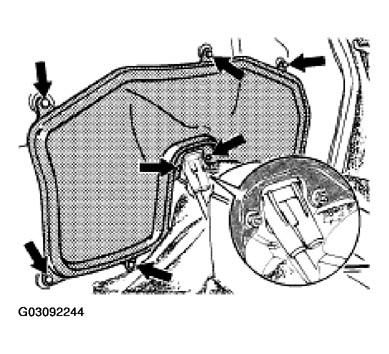

Fig 1: Removing Rear Wall Lining
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Remove drive belt. Mark the running direction of the belt with a colored pen. Relieve the belt tension. To do this, turn the tensioning roller (wrench size 24 mm) clockwise and simultaneously remove the belt from the drive pulleys.

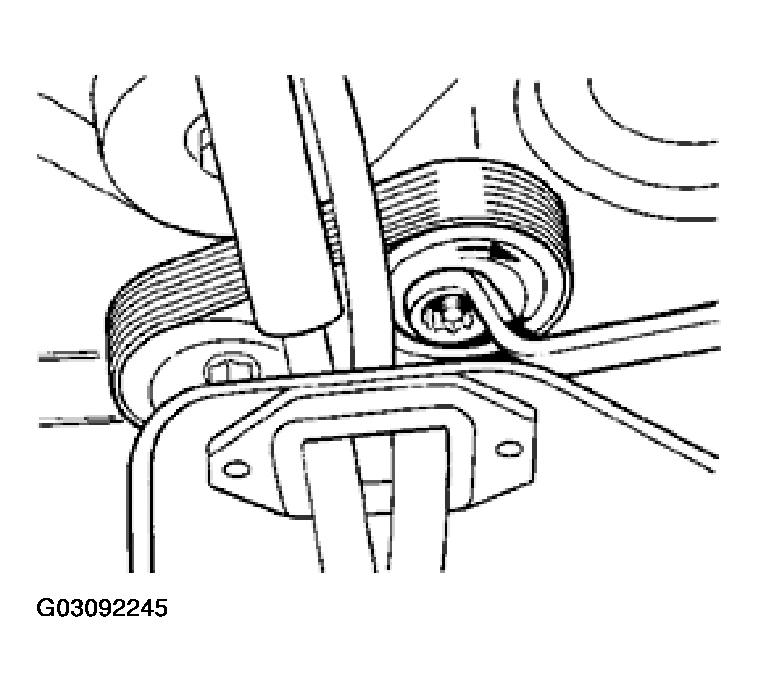

Fig 2: Removing Drive (Serpentine) Belt
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Loosen belt pulley. Undo hexagon-head bolt (M16 x 1.5 x 60) with special tool 9594 (socket wrench insert); to do this, hold with special tool 9593 (retaining device).

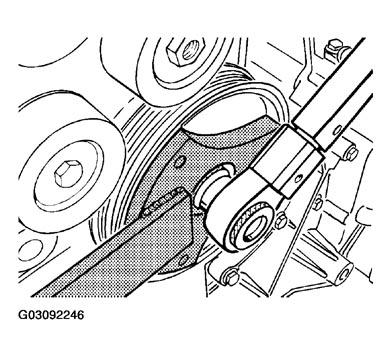

Fig 3: Loosening Belt Pulley Hex Head Bolt
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Remove crankshaft sealing ring. The following tools and parts are required for removal of the crankshaft sealing ring:
- Angle drill
- Drill bit, $$ 3 mm
- Mounting lever, for example, special tool 9182
- Sheetmetal screw with hexagon head (5.5 x 15)
- Washer
- Support, for example, wooden block 50 x 30 x 20 mm
  Removal procedure:
- Drill sealing ring on face side. See Fig 4

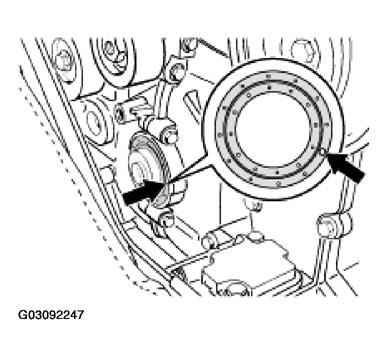

  Fig 4: Locating Crankshaft Front Sealing Ring
  Courtesy of PORSCHE OF NORTH AMERICA, INC.
- Screw sheetmetal screw with washer approx. 5 mm into the bore.
- Position mounting lever on the sheetmetal screw; place support between the mounting lever and crankcase.
Lever crankshaft sealing ring out of the crankcase.

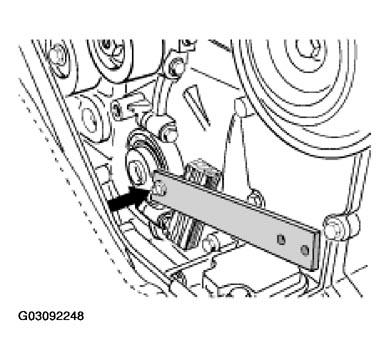

Fig 5: Removing Crankshaft Front Sealing Ring
Courtesy of PORSCHE OF NORTH AMERICA, INC.
