Engine Installed (Pulley Side): Tools

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

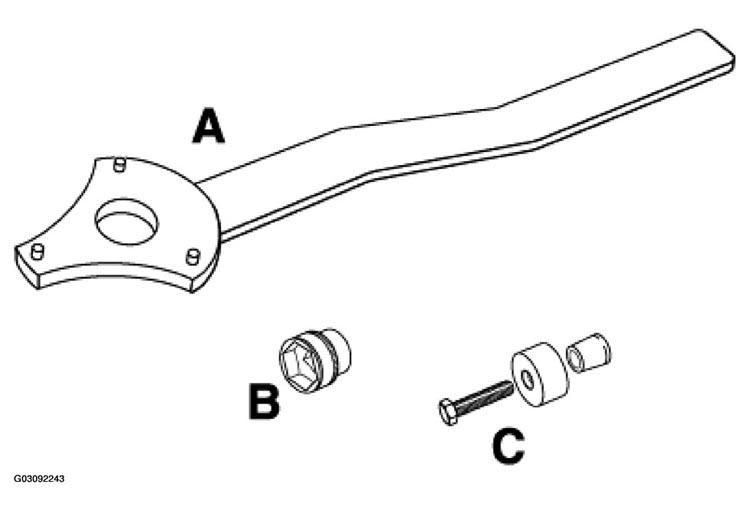

Fig 1: Identifying Special Tools

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SPECIAL TOOLS

Item

Designation

Special tool

A⁽¹⁾

Retaining device

9593

B⁽¹⁾

Socket wrench insert

9594

C⁽¹⁾

Insertion tool

9610

⁽¹⁾	For explanation see Fig 1
