Removing Closure Caps At Pulley Side Of Cylinder Head 4 - 6

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear wall lining and rear wall cover. To do this, unscrew the hexagon nuts and screws. Refer to ENGINE MAINTENANCE: OPENING AND CLOSING ENGINE COMPARTMENT .

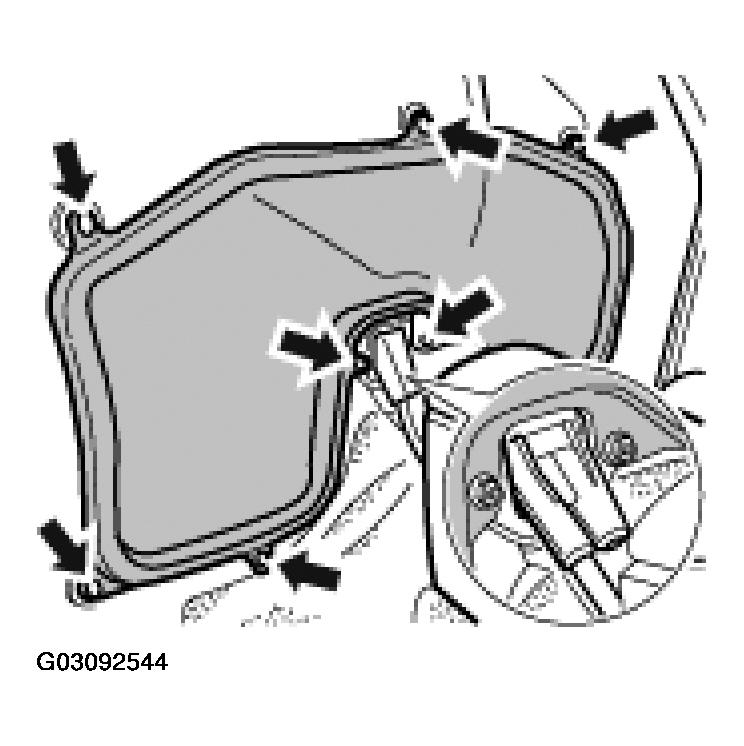

    Fig 1: Removing Rear Wall Lining And Rear Wall Cover
    G03092544Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Carefully push a suitable screwdriver in the Centre of the closure cap and lever it off.

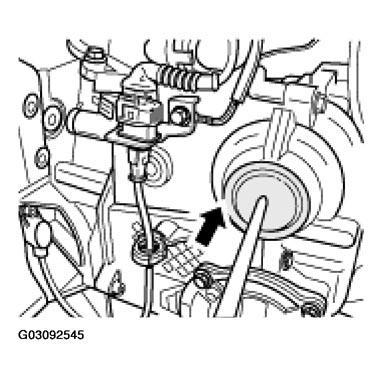

    Fig 2: Locating Centre Of Closure Cap - Cylinder Head 4-6
    G03092545Courtesy of PORSCHE OF NORTH AMERICA, INC.
