Removing Closure Caps At Pulley Side Of Cylinder Head 1 - 3

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear wall lining and rear wall cover. To do this, unscrew the hexagon nuts and screws. Refer to ENGINE MAINTENANCE: OPENING AND CLOSING ENGINE COMPARTMENT .

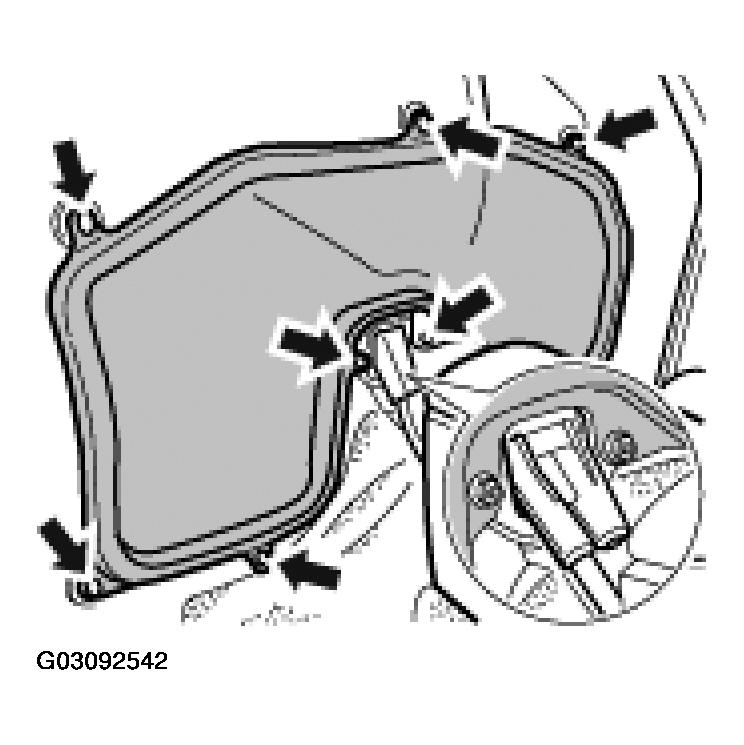

Fig 1: Removing Rear Wall Lining And Rear Wall Cover
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Carefully push a suitable screwdriver in the Centre of the closure caps and lever them off -arrows- . See Fig 2.

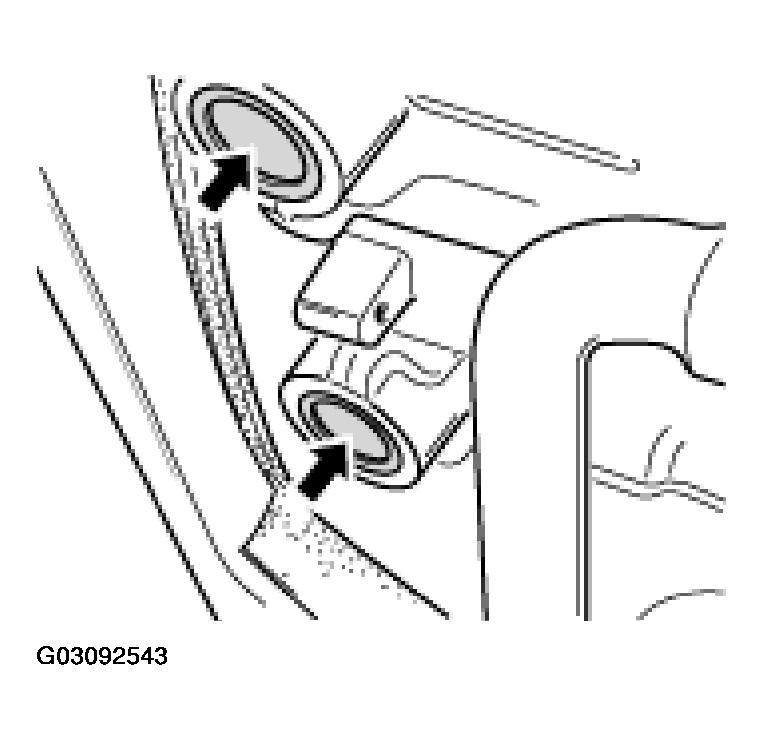

Fig 2: Locating Centre Of Closure Caps - Cylinder Head 1-3

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Installing closure caps at pulley side of cylinder head 1 - 3

Clean receiving bore. Fit new caps dry and press in as far as they will go.
Install rear wall lining and rear wall cover.

Tightening torque 10 Nm (7.5 ft.lb)
