Removing Closure Caps At Flywheel Side Of Cylinder Head 4 - 6

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear wheels. To do this, use the socket wrench insert P 300 to avoid damaging the wheel.
Detach cable between engine and rear-axle carrier at the rear-axle support. When loosening, hold with a second wrench (a/f 13).

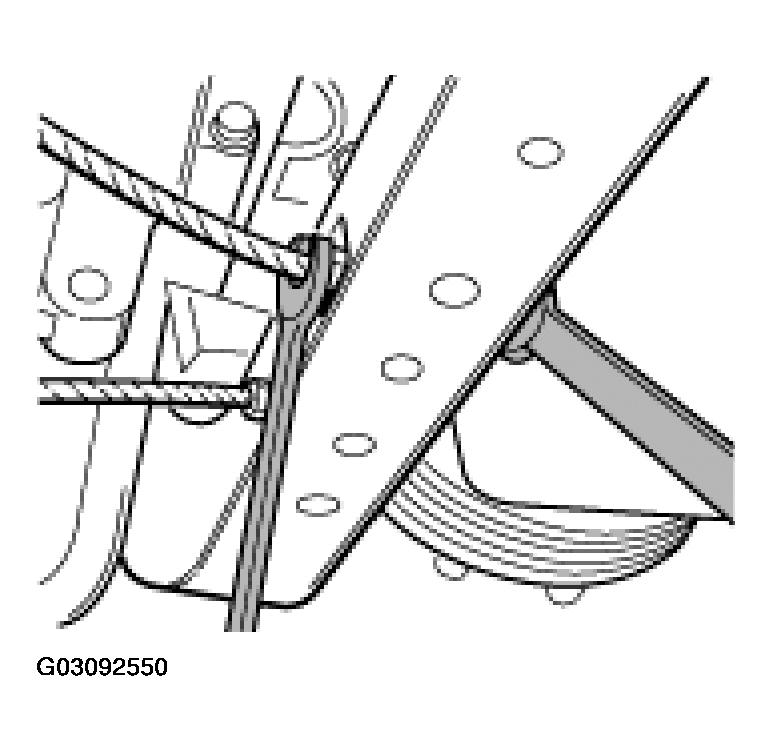

Fig 1: Detaching Cable Between Engine And Rear-Axle Carrier At The Rear-Axle Support
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Unscrew four fastening screws on both sides of the rear-axle support (a/f 15).

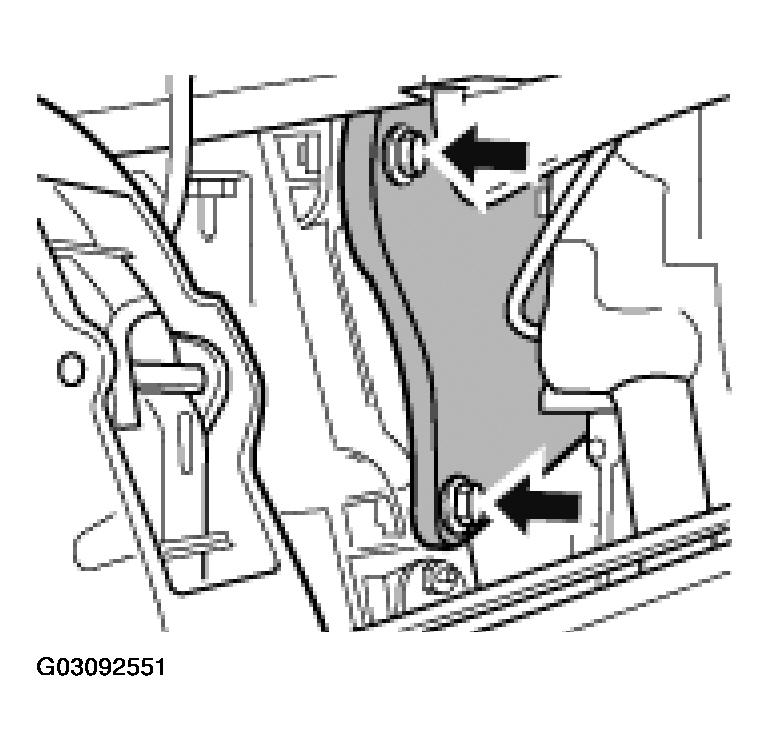

Fig 2: Locating Fastening Screws On Both Sides Of The Rear-Axle Support
Courtesy of PORSCHE OF NORTH AMERICA, INC.
A shop-made tool is required in order to pull off the cap.
Making the tool:
- Weld a 6.3 x 14 sheetmetal screw with hexagon head onto a 1000 mm long iron rod, e.g. 8 mm round steel bar. See Fig 3.

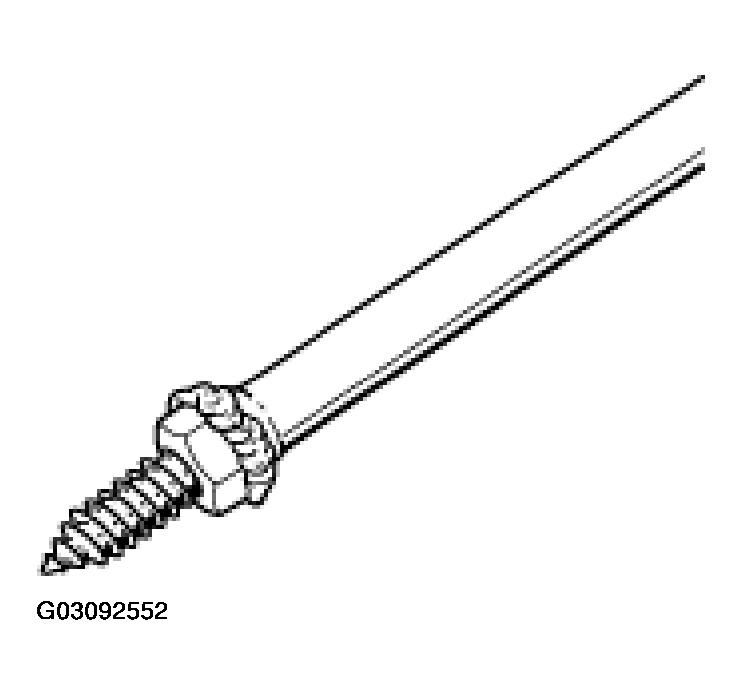

Fig 3: Identifying Steel Bar Tool With Sheetmetal Screw
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Shift the loosened rear-axle support accordingly until the closure cap becomes accessible.
Turn puller into Centre of the closure cap and pull off the cap.
