Installing Closure Caps At Flywheel Side Of Cylinder Head 4 - 6
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

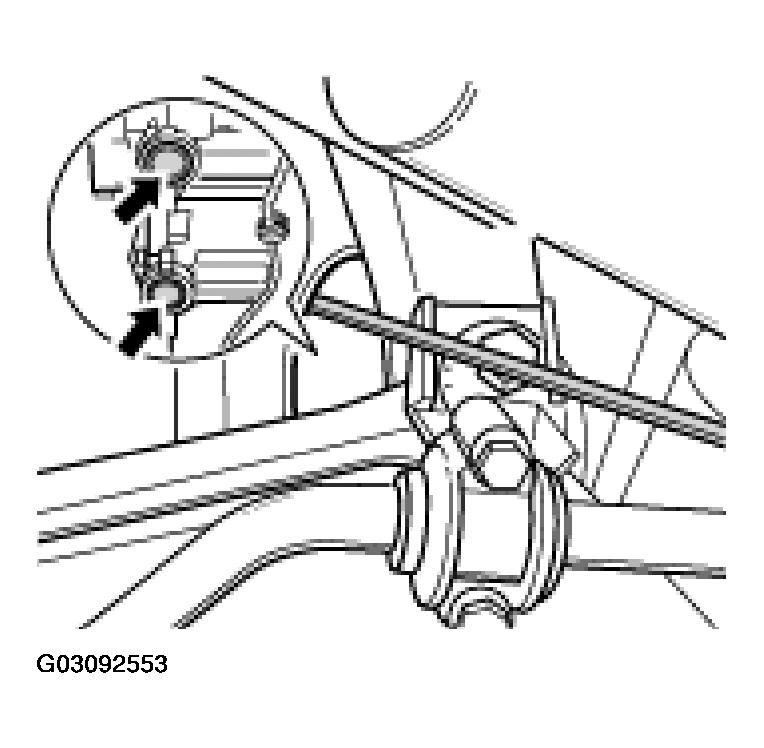

- Clean receiving bore. Fit new cap dry and press in as far as it will go.
- Fit rear-axle supports.
Tightening torque 65 Nm (48 ft.lb).
- Fasten cable.
Tightening torque 23 Nm (17 ft.lb)
- Mount rear wheels. To do this, use the socket wrench insert P 300 to avoid damaging the wheel.
Tightening torque 130 Nm (96 ft.lb).
- Measure vehicle axle.
TIGHTENING TORQUE SPECIFICATIONS - CLOSURE CAP FOR CAMSHAFT BORE
| Location | Thread | Tightening torque (Nm) (ft.lb.) |
|---|---|---|
| Fastening screws rear-axle support | M10 x 1.5 | 65 (48) |
| Cable | M8 | 23 (17) |
| Wheel bolts | M14 x 1.5 | 130 (96) |
| Maintenance cover | M6 | 10 (7.5) |
