SPECIAL TOOLS

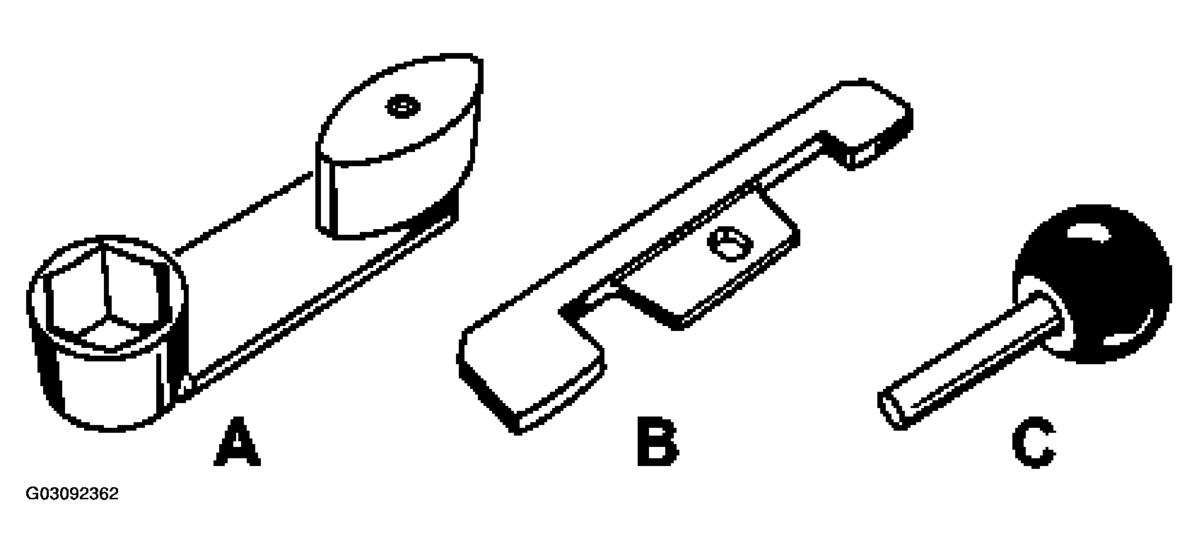

| Item | Designation | Special tool | Remarks | ||
|---|---|---|---|---|---|
| A(1) | Retaining tool for central screw on camshaft adjuster | 9685 | |||
| B(1) | Adjustment gauge for camshafts | 9686 | Only use as a blocking tool during the pre-tightening phase of the central screw (50 Nm (37 ft.lb) | ||
| C(1) | Locating pins for belt pulley | 9595/1 | Use short locating pin | ||
|
|||||
