Allocation Of Chain TENSIONERS

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Chain tensioner on crankcase (oil filter area). Identification: 1 ring

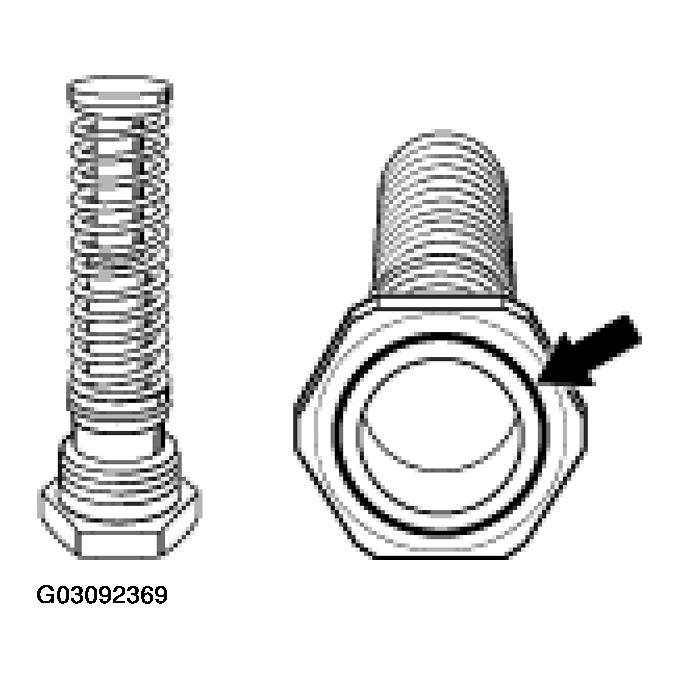

Fig 1: Identifying Chain Tensioner On Crankcase (Identification: 1 Ring)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Chain tensioner on cylinder head, cylinder bank 1-3. Identification: 2 rings

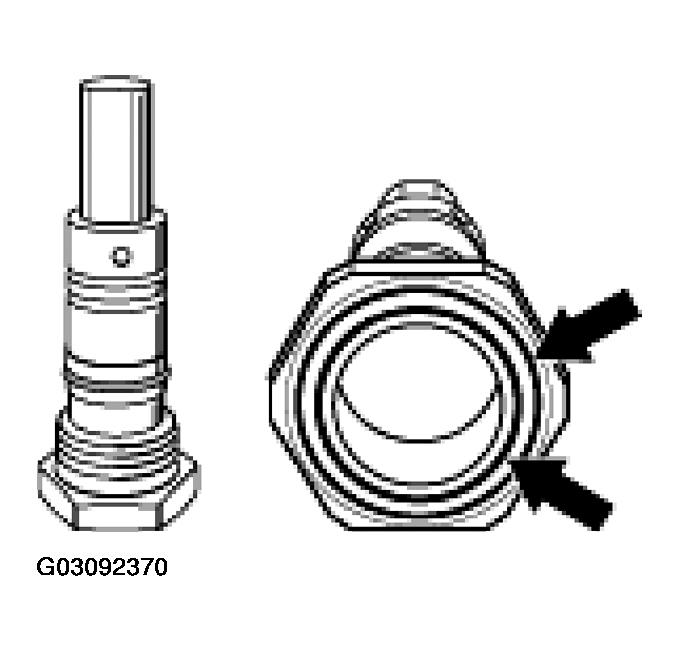

Fig 2: Identifying Ring Chain Tensioner On Cylinder Head, Cylinder Bank 1-3 (Identification: 2 Rings)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Chain tensioner on cylinder head, cylinder bank 4 - 6. No identification. Fastened with hexagon socket.

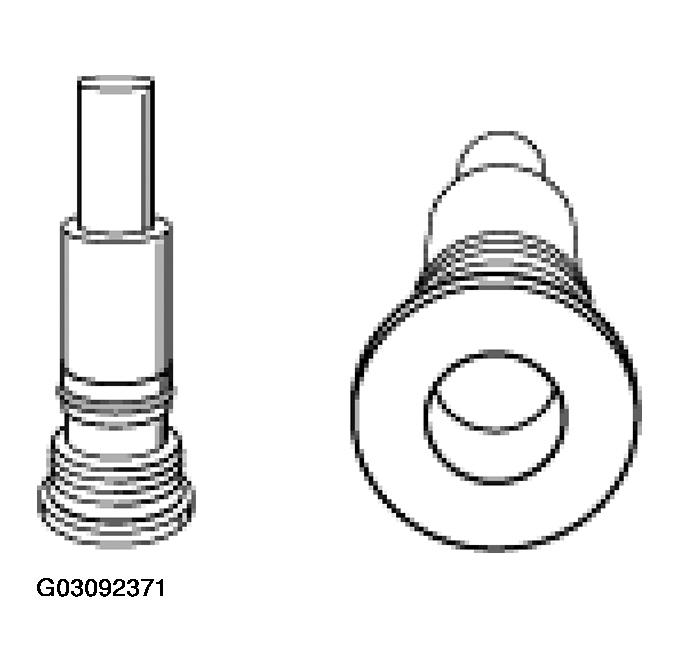

Fig 3: Identifying Chain Tensioner On Cylinder Head, Cylinder Bank 4-6
Courtesy of PORSCHE OF NORTH AMERICA, INC.

Tightening torque for chain tensioners: 80 Nm (59 ft.lb.)
