Installing Belt TENSIONER
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

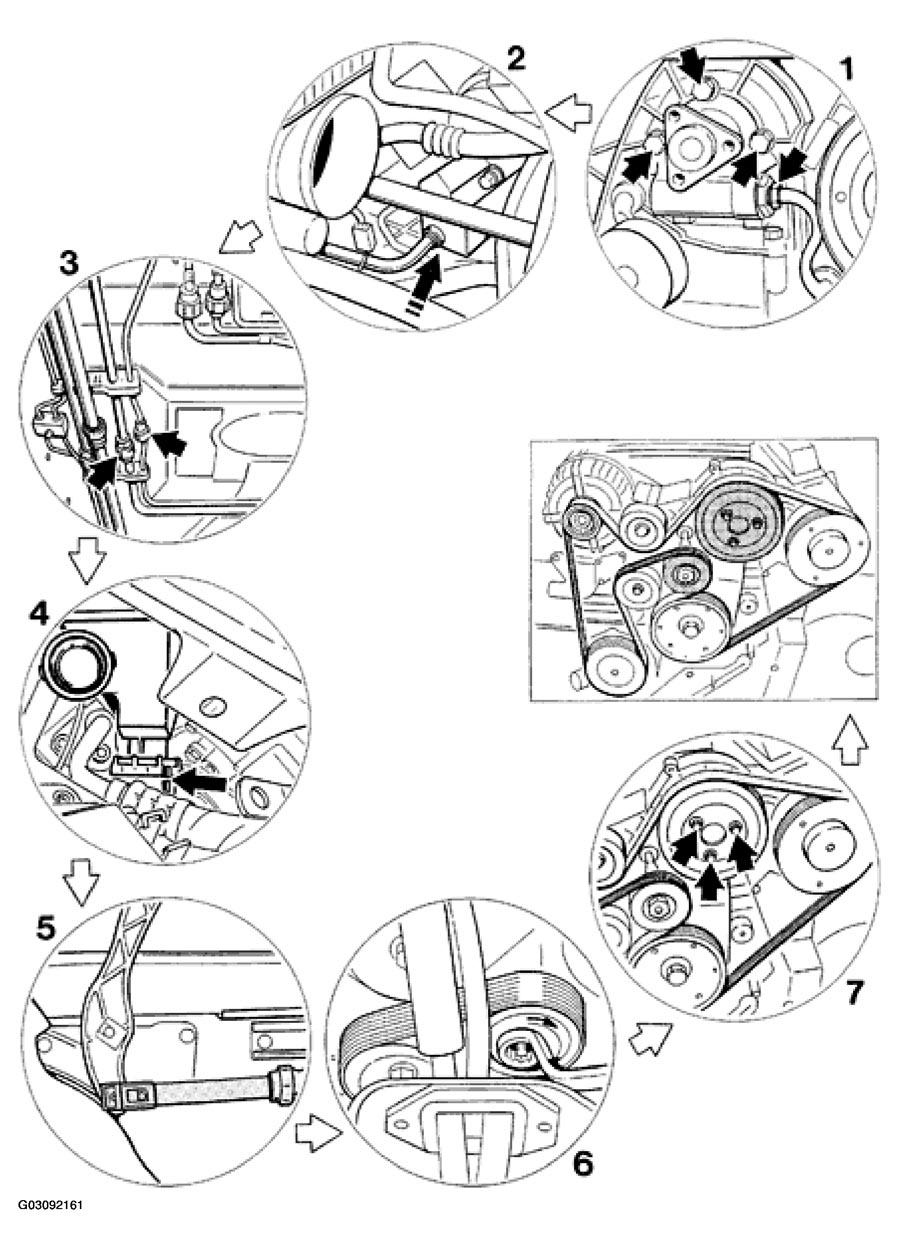

REMOVAL AND INSTALLATION PROCEDURE OF BELT TENSIONER
| No. | Procedure | Instructions | ||
|---|---|---|---|---|
| 1(1) | Installing hydraulic pump | Fasten bracket with tensioning element on the crankcase. Insert hydraulic pump from behind and fasten. Tightening torque 23 Nm (17 ft.lb). | ||
| 2(1) | Fitting steering return line | Push line straight into the coupling. Then pull slightly to ensure it is engaged properly. | ||
| 3(1) | Fitting steering pressure line and steering return line | Fit by plugging together. Refer to PLUG-IN COUPLINGS FOR STEERING HYDRAULIC SYSTEM
and PLUG-IN COUPLINGS FOR PIPELINES
. |
||
| 4(1) | Fitting power steering supply tank | Put container into place (observe marks) Lock bayonet lock. | ||
| 5(1) | Fitting retainer for convertible top compartment cover hinge | Insert retainer into the fitting tool. Push fitting tool with retainer onto the pin and slide off. | ||
| 6(1) | Fitting drive belt | Fit belt pulley on the hydraulic pump and tighten hexagon head bolts. Fit drive belt. |
||
| 7(1) | Fitting belt pulley for hydraulic pump | Tighten three hexagon head bolts. Tightening torque 23 Nm (17 ft.lb). |
||
|
||||
