Engine Installed: Tools

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

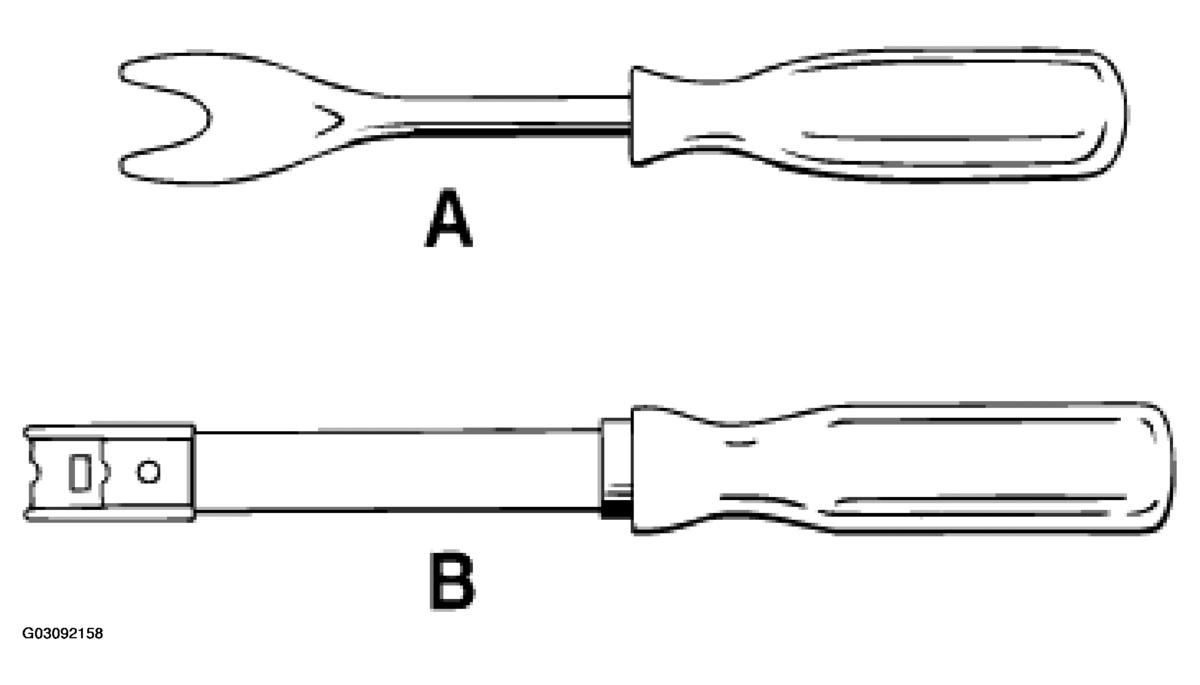

Fig 1: Identifying Tools
G03092158Courtesy of PORSCHE OF NORTH AMERICA, INC.
SPECIAL TOOLS

No. Designation Special tool
A(1) Removal tool Commercially available, e.g. Snap - on Order No. A177A
B(1) Fitting tool for pin retainer, Springfix system Commercially available, Art. No. 1 089 001 018 for retainer 85XN 58/59
(1) For explanation see Fig 1.
