Removing And Installing Bearing Cover For Intermediate Shaft - As Of My 2002: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

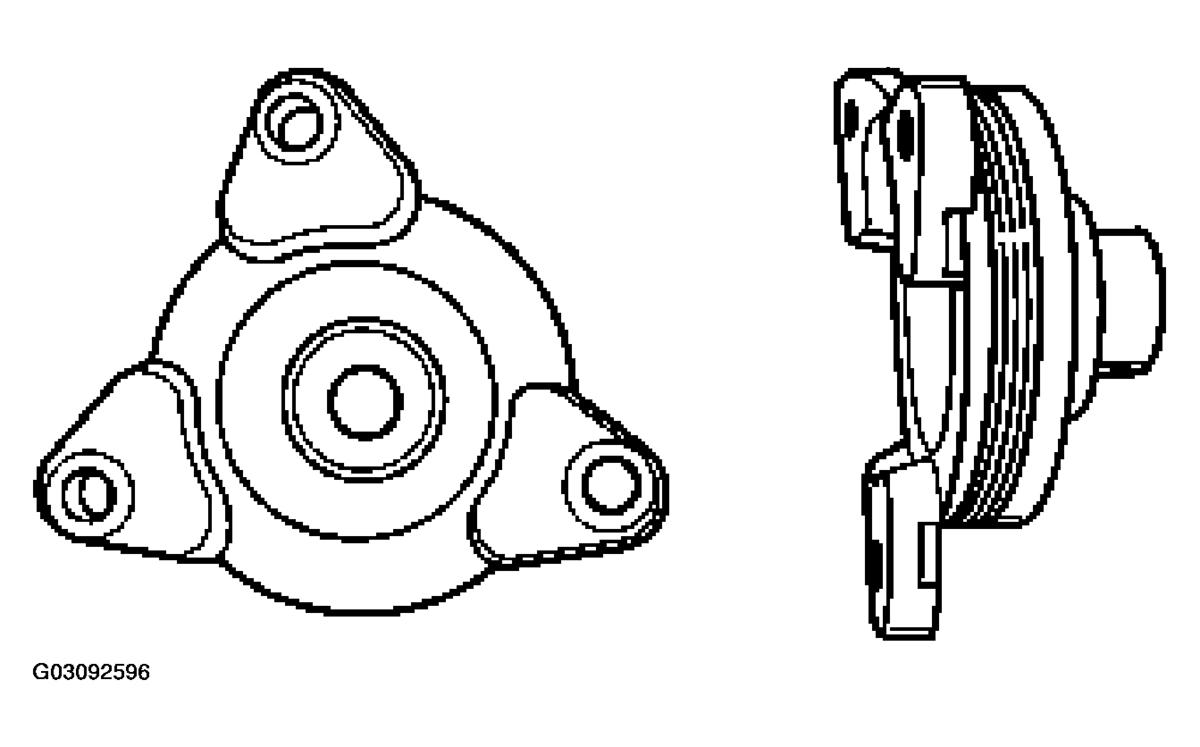

Fig 1: Identifying Bearing Cover For Intermediate Shaft - As Of MY 2002

Courtesy of PORSCHE OF NORTH AMERICA, INC.

CAUTION:

After removal of the chain tensioner, the crankshaft must not be turned under any circumstances, because otherwise the timing chain may jump over!
Danger of engine damage
