Installing Bearing Cover

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Replace bearing cover!

Before installing the new bearing cover, check the fitted bore on the crankcase for sharp edges and burrs. They should be removed with an oilstone or a polishing cloth. Remove any existing residue and clean the bore with a clean cloth soaked in solvent naphtha or acetone.
NOTE:
- Replace hexagon collar nut M8 x 1 and micro-encapsulated screws for bearing cover!
Grease fitted bore and new bearing cover with special grease Optimoly MP3 (available from Porsche Parts Service) and place bearing cover in position.
Position 3 new M6 x 20 hexagon-head bolts (micro-encapsulated) on the crankcase and pull in the bearing cover by screwing in the screws uniformly. Tighten screws to the specified torque.
Tightening torque 10 Nm (7.5 ft.lb)
Position new M8 x 1 hexagon nut on the threaded pin of the intermediate shaft. Tighten the nut with special tool socket wrench 9110 to the correct tightening torque. At the same time, counter with a suitable screwdriver in the slotted threaded pin of the intermediate shaft.

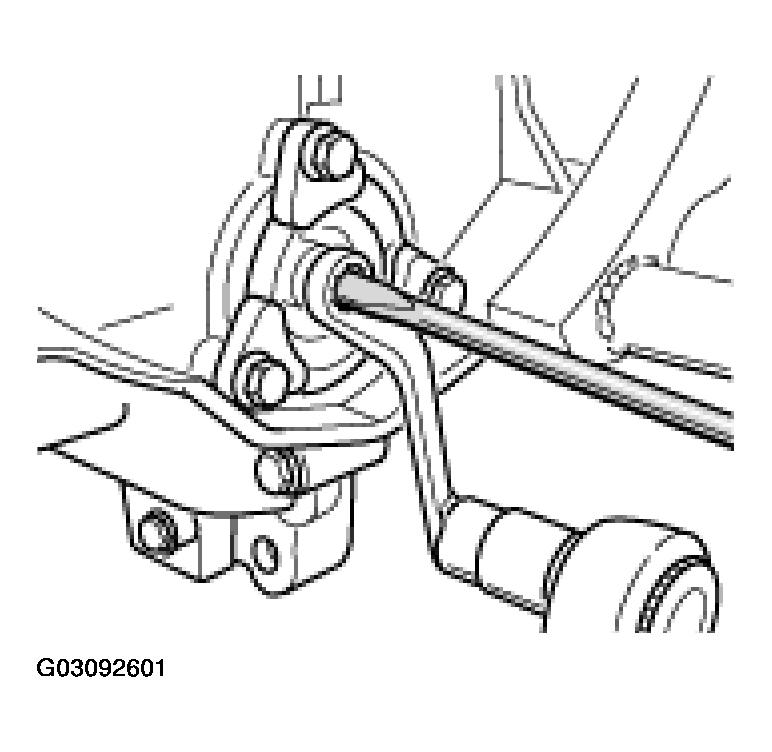

Fig 1: Tightening Intermediate Shaft Nut With Special Tool
Courtesy of PORSCHE OF NORTH AMERICA, INC.

Tightening torque 12 + 1 Nm (9 + 0.5 ft.lb).
Install both primary chain tensioner and chain tensioner cylinder bank 1 - 3 with a new aluminum sealing ring (hexagon a/f 32) and tighten to the correct tightening torque.

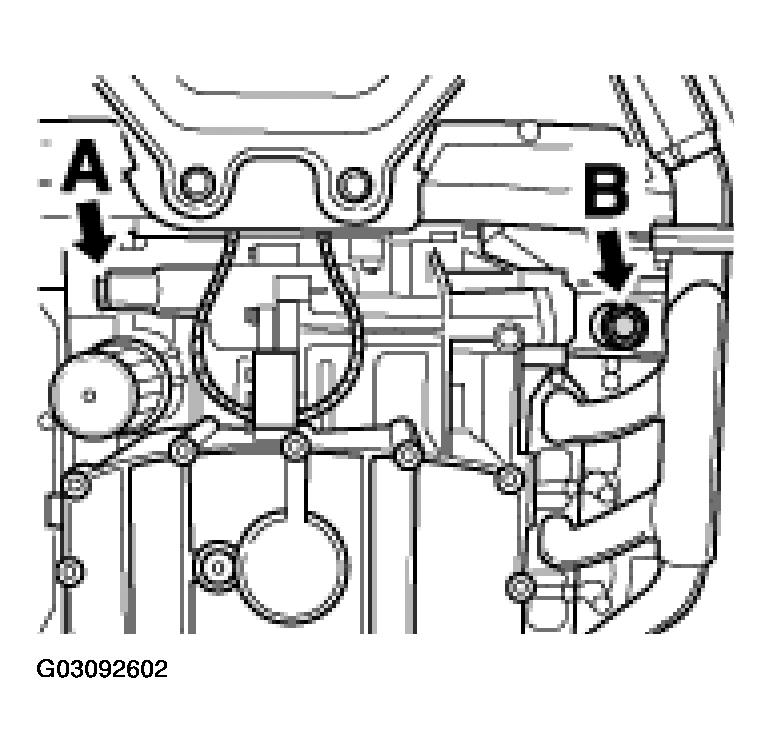

-A- Primary chain tensioner ; -B- chain tensioner, cylinder bank 1 - 3

Fig 2: Locating Primary Chain Tensioner And Chain Tensioner
Courtesy of PORSCHE OF NORTH AMERICA, INC.

Tightening torque 80 Nm (59 ft.lb)
Fasten coolant pipe (heating), cylinder side 4 - 6, with 2 M6 x 12 hexagon-head bolts.
Tightening torque 10 Nm (7.5 ft.lb)
Pull fixing pin out of the fixing bore.
NOTE:
- Fastening screws for drive plate for the torque converter or the double-mass flywheel must be replaced!
- Drill open the bore of the toothed segment to 15 mm to counter against the toothed ring.
Install double-mass flywheel or drive plate for torque converter with new screws. Fit special tool toothed segment 9538/1 for countering using an M12 x 50 screw.

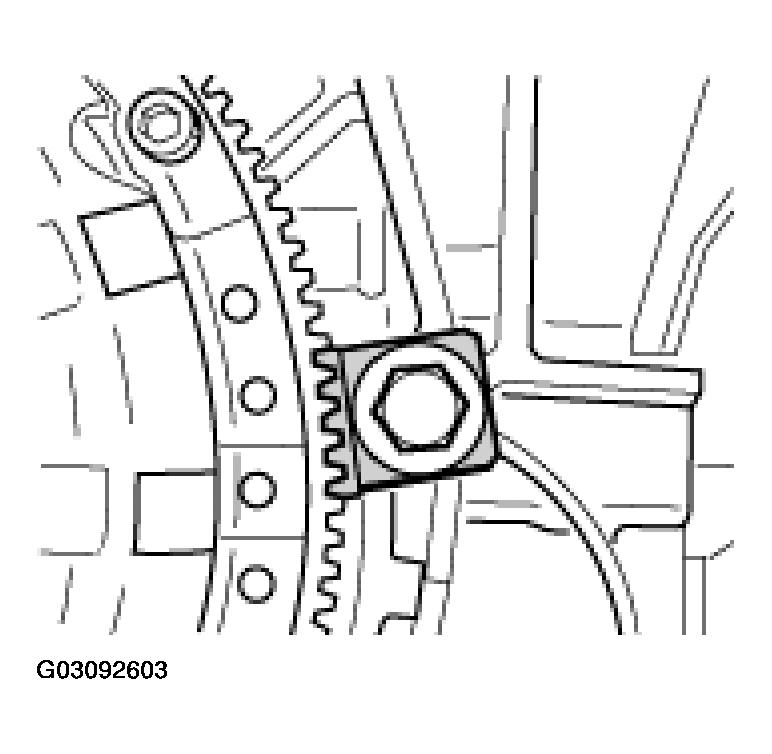

Fig 3: Installing Special Tool (9538) On Double-Mass Flywheel Or Drive Plate
Courtesy of PORSCHE OF NORTH AMERICA, INC.

Tightening torque 25 Nm (19 ft.lb) + 120° torque angle
NOTE:
- In order to avoid deforming the thrust plate housing, always tighten the pan-head screws on the clutch pressure plate in several stages and in diametrically opposite sequence.
Manual transmission: Install thrust plate and drive plate. Tighten 6 M8 pan-head screws to the prescribed torque.
Tightening torque: 23 Nm (17 ft.lb.)
Install Tiptronic transmission. Refer to REMOVING AND INSTALLING TIPTRONIC TRANSMISSION and REMOVING AND INSTALLING TRANSMISSION G 86 .
Fill engine oil. Refer to ENGINE MAINTENANCE: OIL CHANGE WITH FILTER CHANGE or CHANGING THE ENGINE OIL AND OIL FILTER -- AS 2003
Install the engine compartment lid and the maintenance cover in the passenger compartment. Refer to ENGINE MAINTENANCE: OPENING AND CLOSING ENGINE COMPARTMENT .

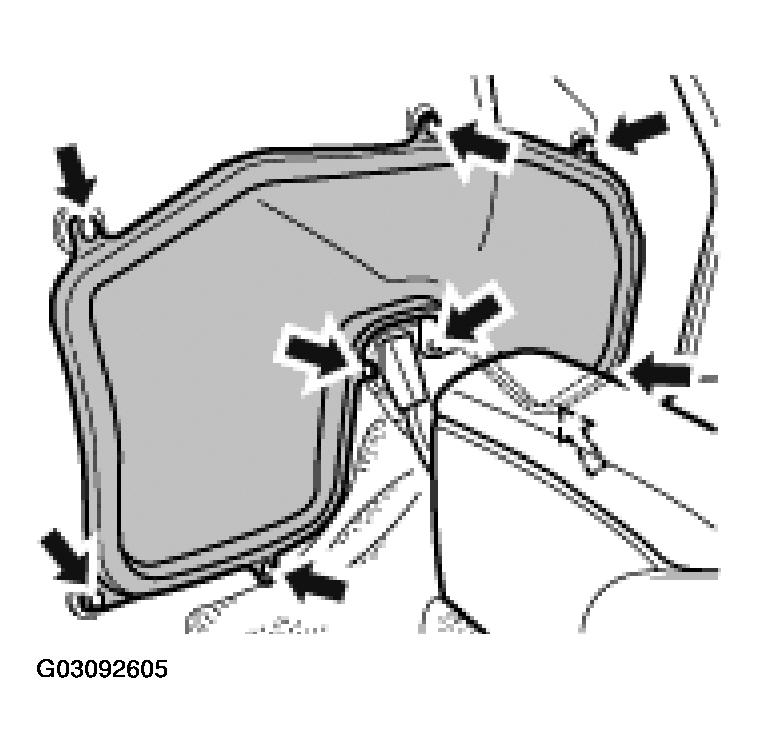

Fig 4: Removing Engine Compartment Lid
Courtesy of PORSCHE OF NORTH AMERICA, INC.

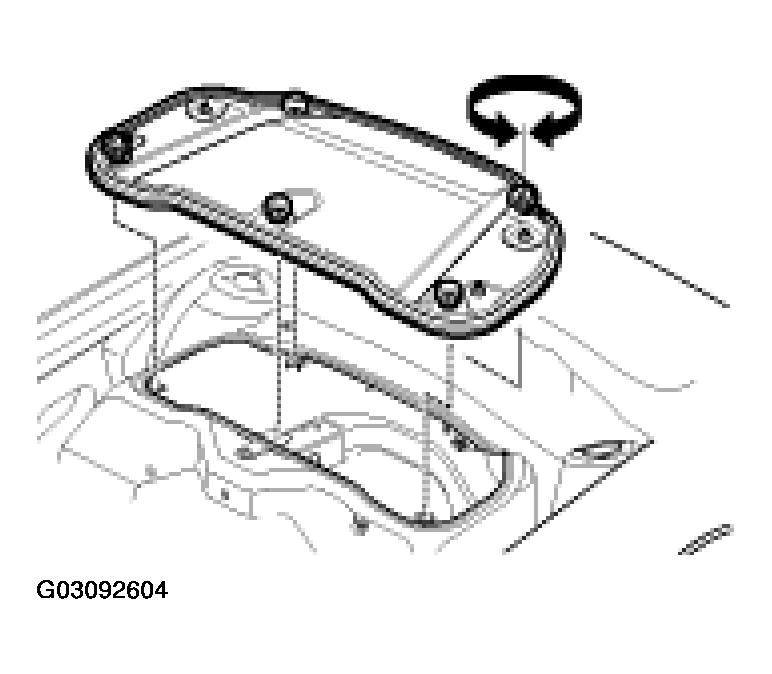

Fig 5: Removing Maintenance Cover In Passenger Compartment
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Connect the battery. Refer to WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY .
Close convertible top, see REMOVING AND INSTALLING CONVERTIBLE TOP (Model year 2003).
