Removing Oil-Water Heat EXCHANGER

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Remove cap on coolant expansion tank.
Undo drain plug on the coolant guide housing and drain the coolant.

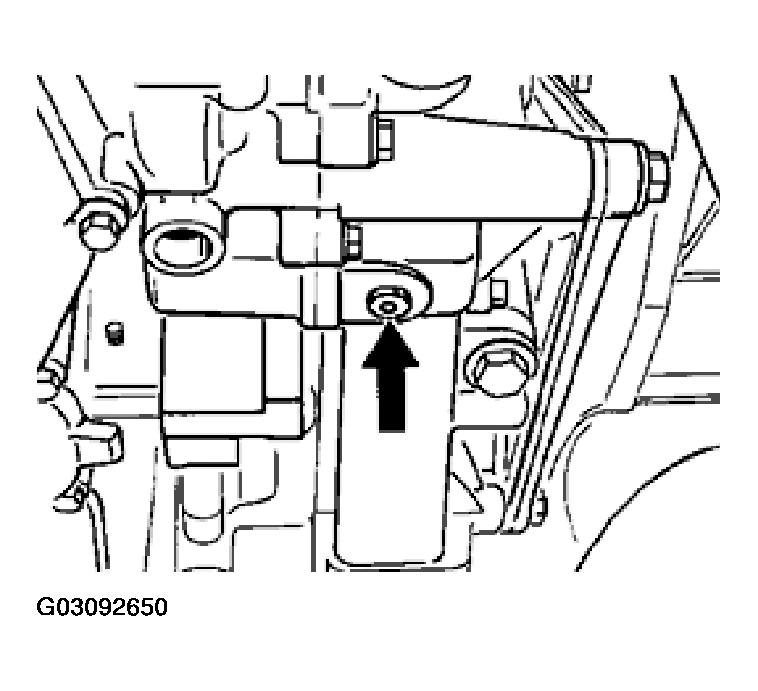

Fig 1: Removing Coolant Drain Plug
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Equip drain plug with a new sealing ring and fit in the coolant guide housing. Tightening torque: 10+5 Nm (7.5+3.5 ft.lb)
Raise convertible top compartment lid.
Remove engine-compartment cover.
Remove throttle body with intake distributor intermediate piece.
Remove oil-water heat exchanger.

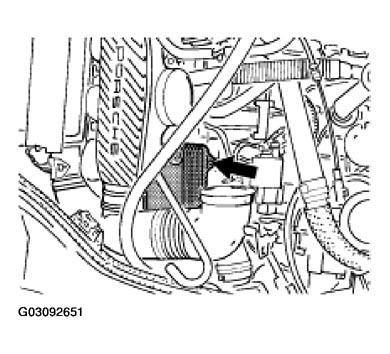

Fig 2: Removing Oil-Water Heat Exchanger
Courtesy of PORSCHE OF NORTH AMERICA, INC.
