Installing Oil-Water Heat EXCHANGER

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert new sealing rings and fit oil-water heat exchanger. Tightening torque: 10 Nm (7.5 ft.lb)
  2. Fit throttle body with intake distributor intermediate piece. Align rubber sleeves with the markings (arrows) and tighten inner hose clamps. Shift or align the distributor pipe between the intake distributors so that dimension X is identical on the right and left sides. Tighten outer hose clamps. Fasten support between the throttle body and crankcase.

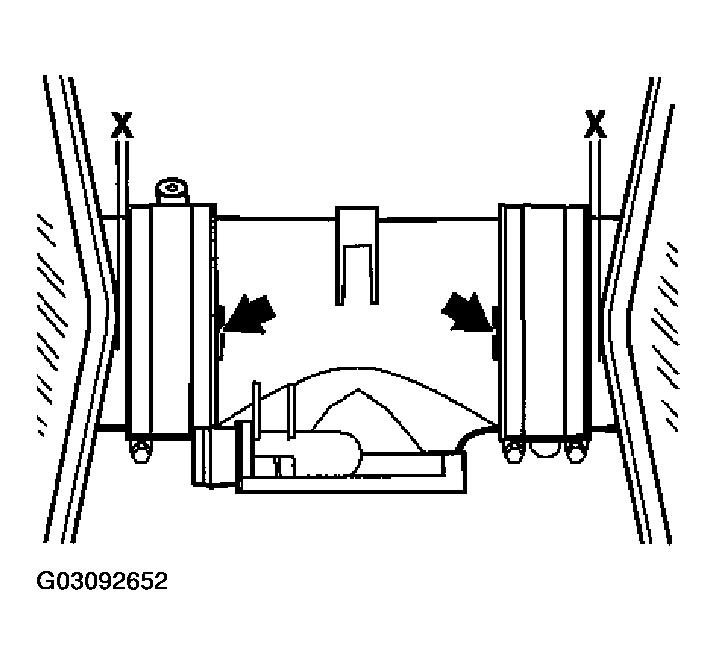

    Fig 1: Locating Rubber Sleeve
    G03092652Courtesy of PORSCHE OF NORTH AMERICA, INC.
  3. Check whether the vacuum control line is seated properly. The vacuum control line must be securely seated in the left rubber sleeve.

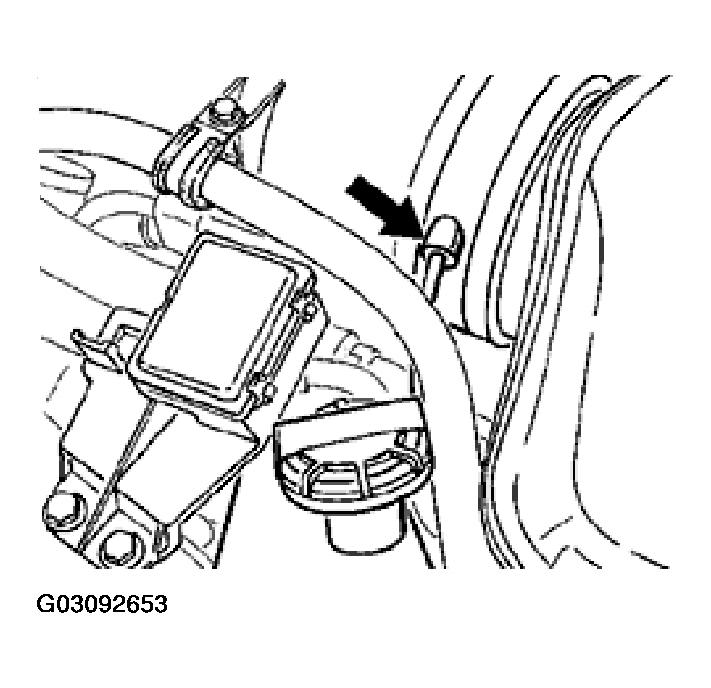

    Fig 2: Locating Vacuum Control Line Rubber Sleeve
    G03092653Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Fit engine compartment cover.
  5. Fill in coolant and bleed the system; refer to DRAINING AND FILLING IN COOLANT (INCLUDES: BLEEDING) .
