Removing Oil Pump

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place pan under the engine to collect any remaining engine oil and coolant which runs out.
  2. Drain engine oil. Unscrew the oil drain plug (hexagon socket a/f 8) and drain emerging oil into an oil collection container. Insert plug with a new sealing ring and tighten.

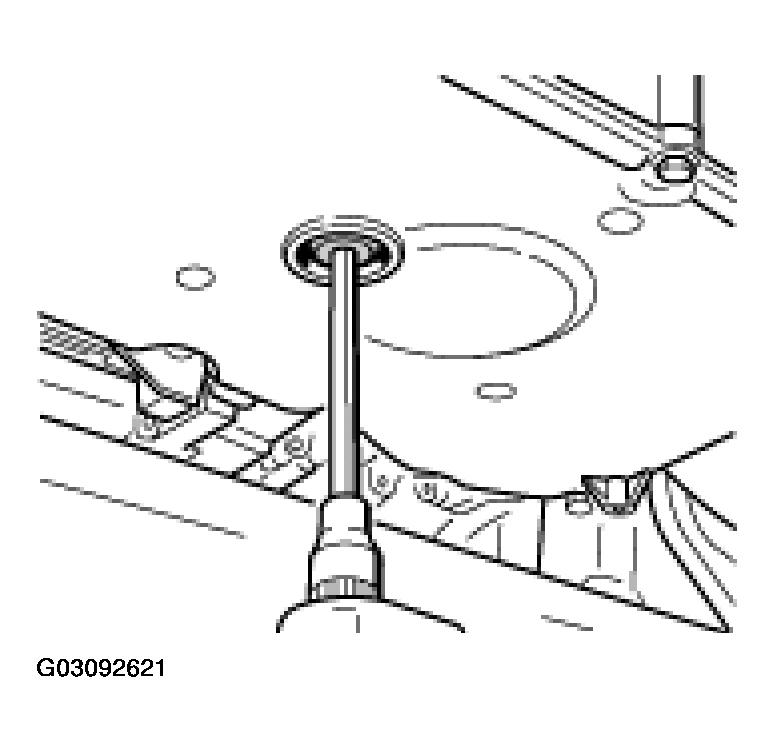

    Fig 1: Draining Engine Oil
    G03092621Courtesy of PORSCHE OF NORTH AMERICA, INC.

    Tightening torque 50 Nm (37 ft.lb)

  3. Remove engine carrier by undoing the four hexagon-head bolts M10 (a/f 15) -arrows-  . See Fig 2.

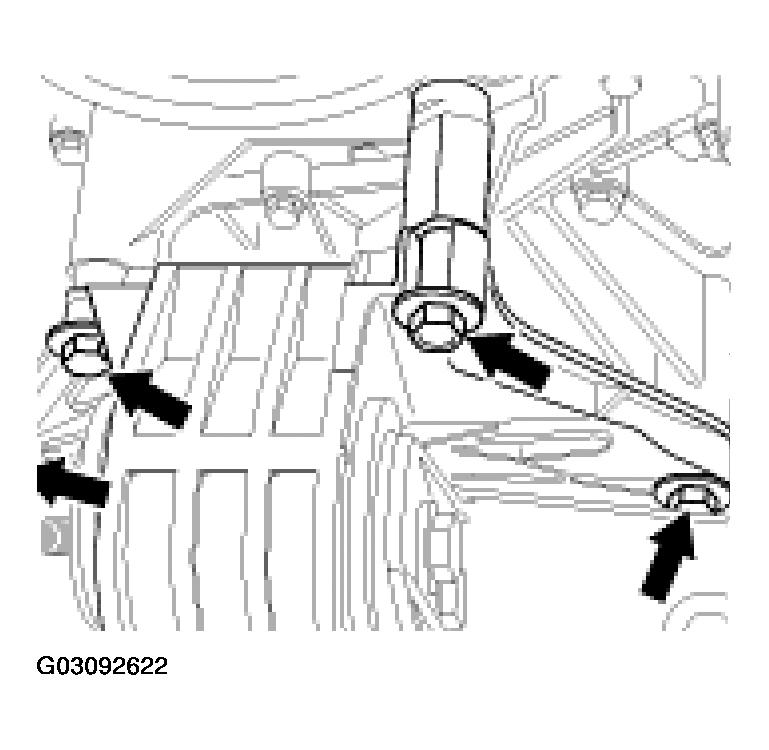

    Fig 2: Removing Engine Carrier
    G03092622Courtesy of PORSCHE OF NORTH AMERICA, INC.
  4. Turn engine at the hexagon-head bolt (a/f 24) of the crankshaft belt pulley clockwise to the TDC mark -arrow-  . Fix belt pulley with special tool fixing pins 9595/1 (use short fixing pin). See Fig 3.

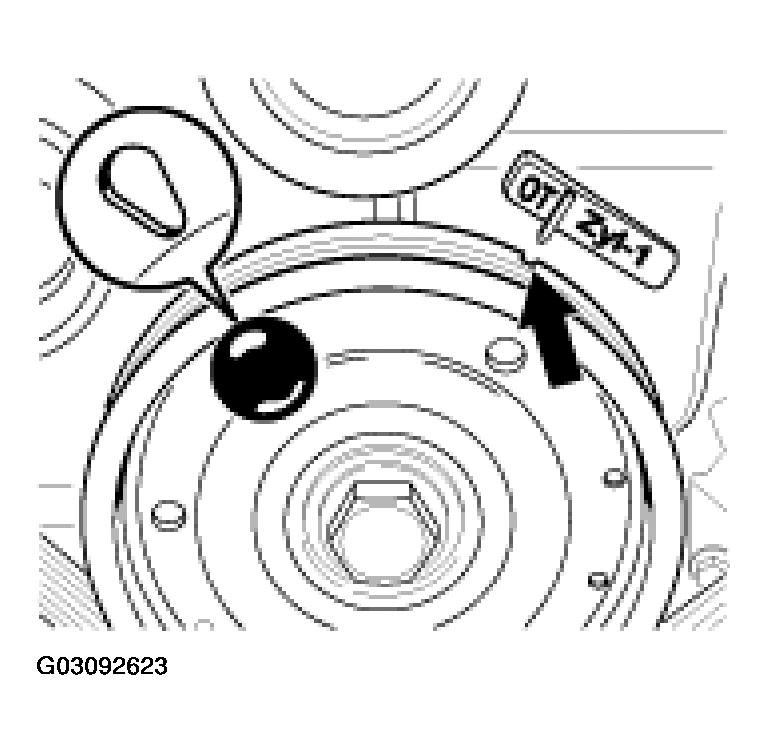

    Fig 3: Installing Special Tool (9595) Into Belt Pulley
    G03092623Courtesy of PORSCHE OF NORTH AMERICA, INC.
    NOTE:
    • After removal of the chain tensioner, the crankshaft must not be turned under any circumstances, otherwise the timing chain may jump over. By altering the timing, damage to the engine may occur!
  5. Remove the chain tensioner, cylinder bank 4 - 6 -arrow-  . See Fig 4. To do so, release and unscrew with a socket wrench insert (hexagon a/f 14).

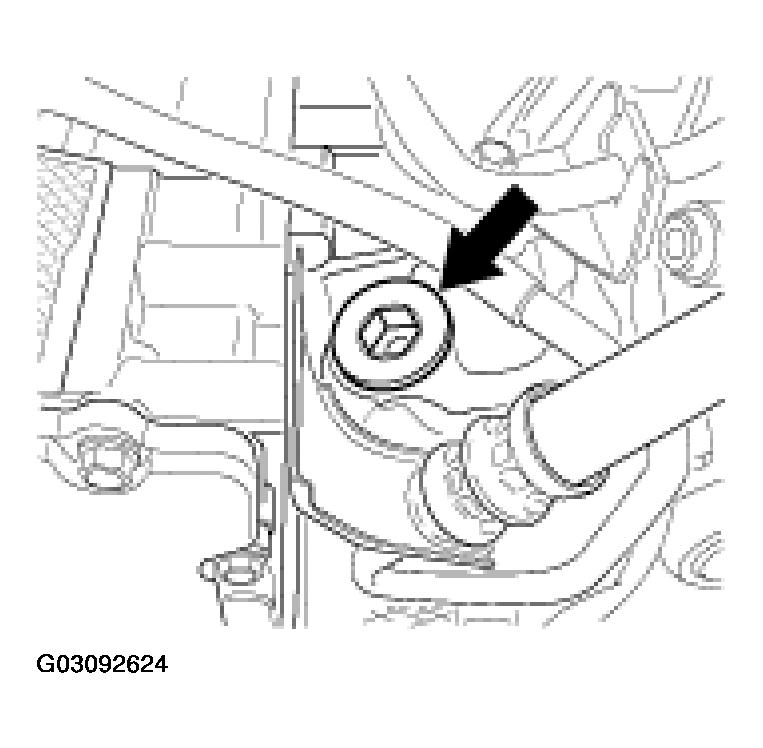

    Fig 4: Locating Chain Tensioner - Cylinder Bank 4-6
    G03092624Courtesy of PORSCHE OF NORTH AMERICA, INC.
  6. Remove chain tensioner, cylinder bank 1 - 3 (hexagon socket a/f 32) -arrow-  . See Fig 5.

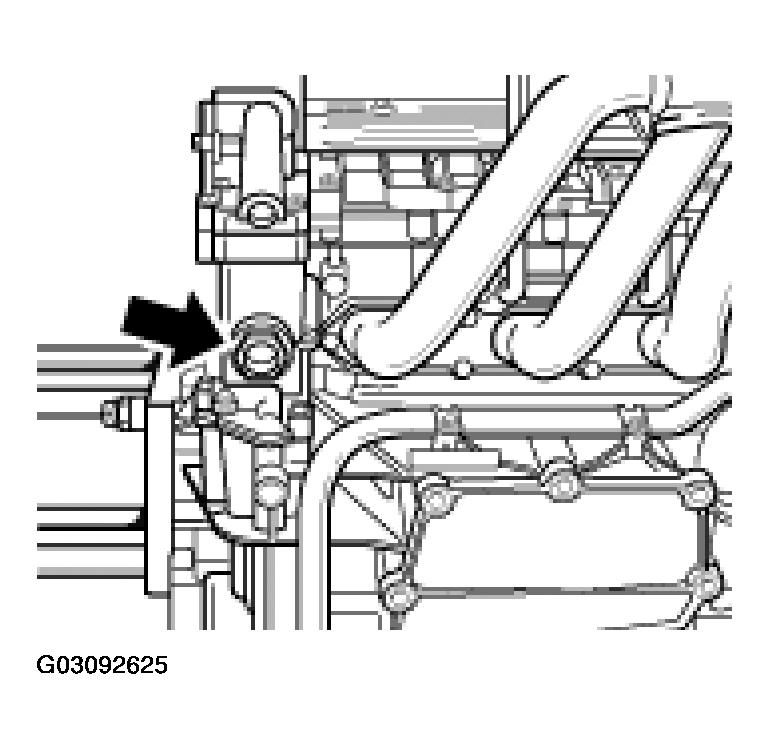

    Fig 5: Removing Chain Tensioner - Cylinder Bank 1-3
    G03092625Courtesy of PORSCHE OF NORTH AMERICA, INC.
  7. Remove primary chain tensioner arrow (hexagon socket a/f 32, oil filter area).
  8. Remove cable plug of the coolant temperature sensor -arrow-  . Next unscrew eight M6 x 20 and two M6 x 80 hexagon-head bolts. See Fig 6.

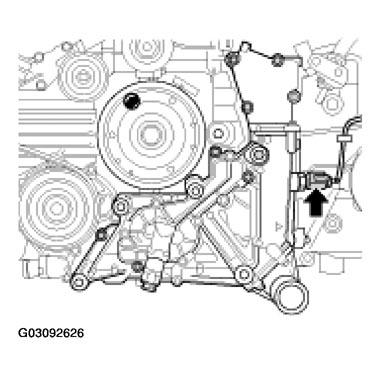

    Fig 6: Removing Cable Plug Of The Coolant Temperature Sensor
    G03092626Courtesy of PORSCHE OF NORTH AMERICA, INC.
  9. Carefully remove the oil pump.
  10. Remove old metallic gaskets. Cut through the old seal between the coolant pump and oil pump housing at the connecting webs -arrows-  . See Fig 7.

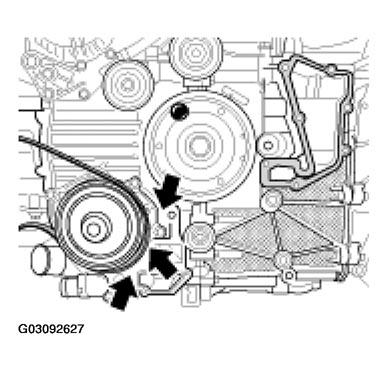

    Fig 7: Removing Old Metallic Gaskets
    G03092627Courtesy of PORSCHE OF NORTH AMERICA, INC.
