Removing Oil Pump Cover

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Place pan under the engine to collect any remaining engine oil which runs out.

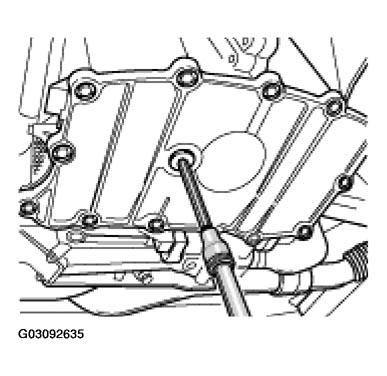

Drain engine oil. Unscrew the oil drain plug (hexagon socket a/f 8) and drain emerging oil into an oil collection container. Insert plug with a new sealing ring and tighten.

Fig 1: Draining Engine Oil
Courtesy of PORSCHE OF NORTH AMERICA, INC.

Tightening torque 50 Nm (37 ft.lb)

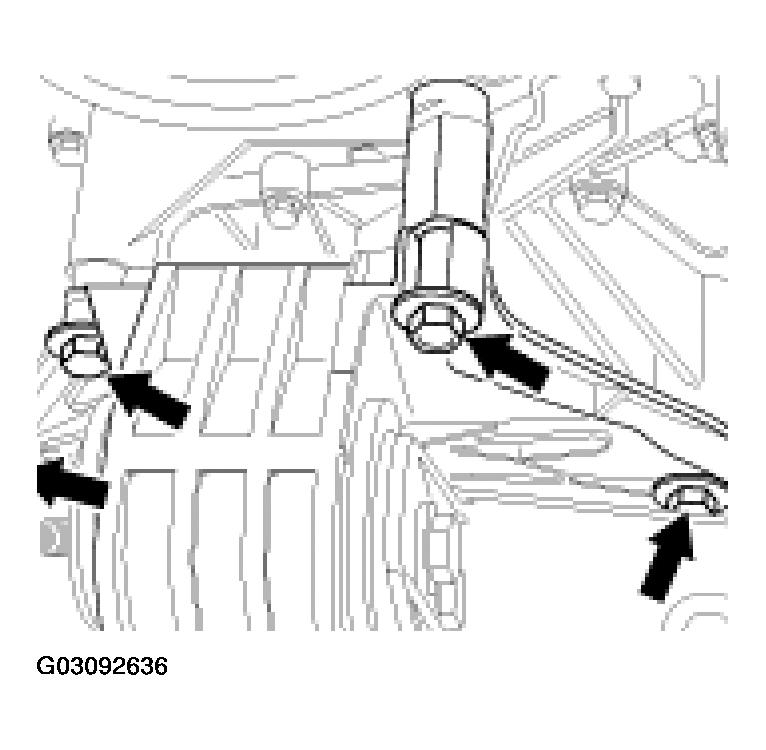

Remove engine carrier by undoing the four hexagon-head bolts M10 x 80 (a/f 15) -arrows- . See Fig 2.

Fig 2: Removing Engine Carrier
Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE:
- Undo the pressure relief valve (hexagon a/f 17) before removing the oil pump cover since the cover must not be held in a clamping device to undo the valve if the oil pump is disassembled. See Fig 3.

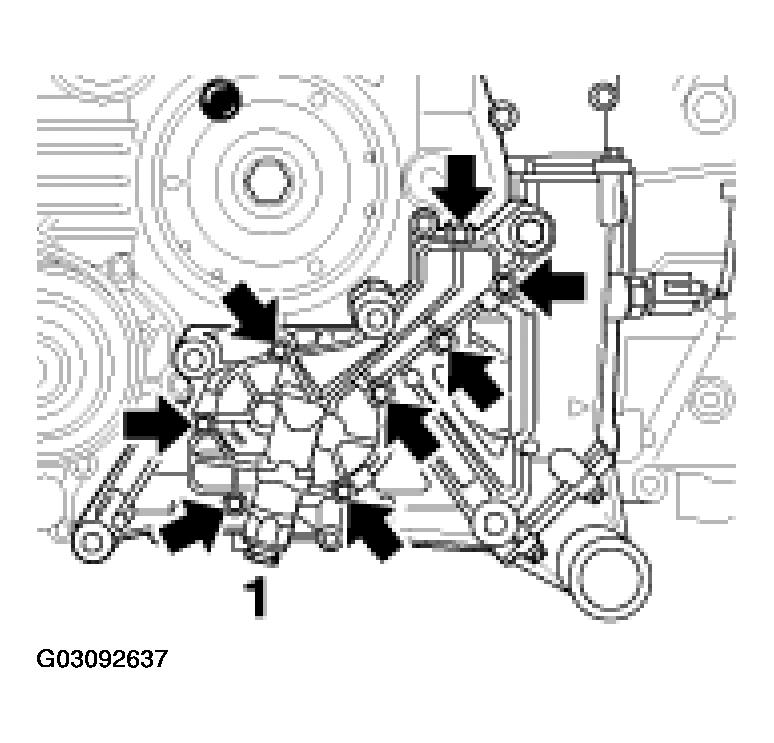

Remove oil pump cover by undoing the eight hexagon-head bolts: six M6 x 20 and two M6 x 80 -arrows- . See Fig 3.

Fig 3: Removing Oil Pump Cover Bolts
Courtesy of PORSCHE OF NORTH AMERICA, INC.

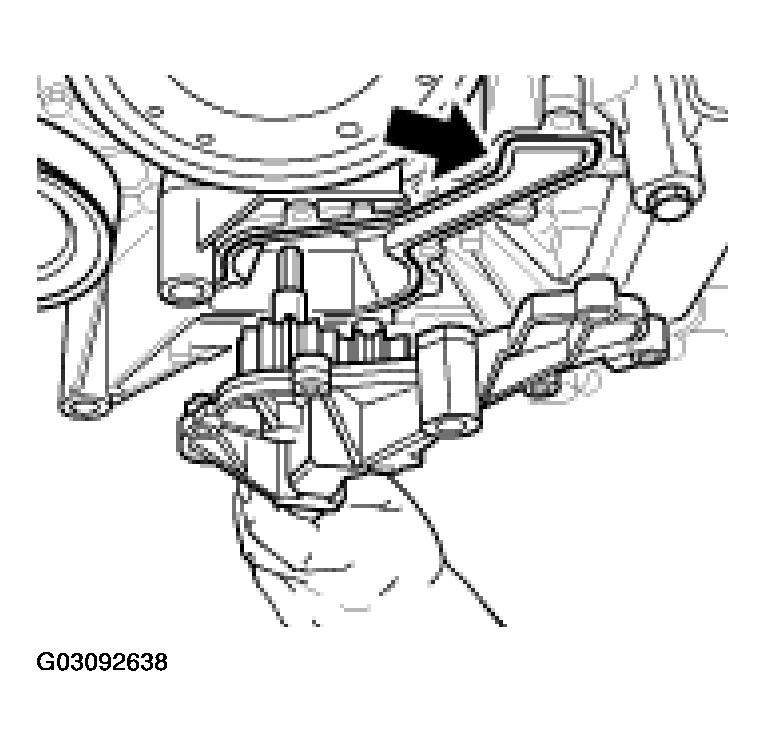

Carefully pull off oil pump cover. Do not use metal tools to lever off the cover as the sealing surface may be damaged. Remove moulded seal -arrow- . See Fig 4.

Fig 4: Removing Moulded Seal From Oil Pump Cover
Courtesy of PORSCHE OF NORTH AMERICA, INC.
