Removing And Installing Oil Extraction Pumps: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The oil extraction pumps on the cylinder heads are identical parts. Therefore, the installation position or direction of rotation must be correct.

Installation position of oil extraction pump at cylinder head 1 - 3 (flywheel side): The arrow for the direction of rotation or the marking "1 - 3" must face the crankcase.

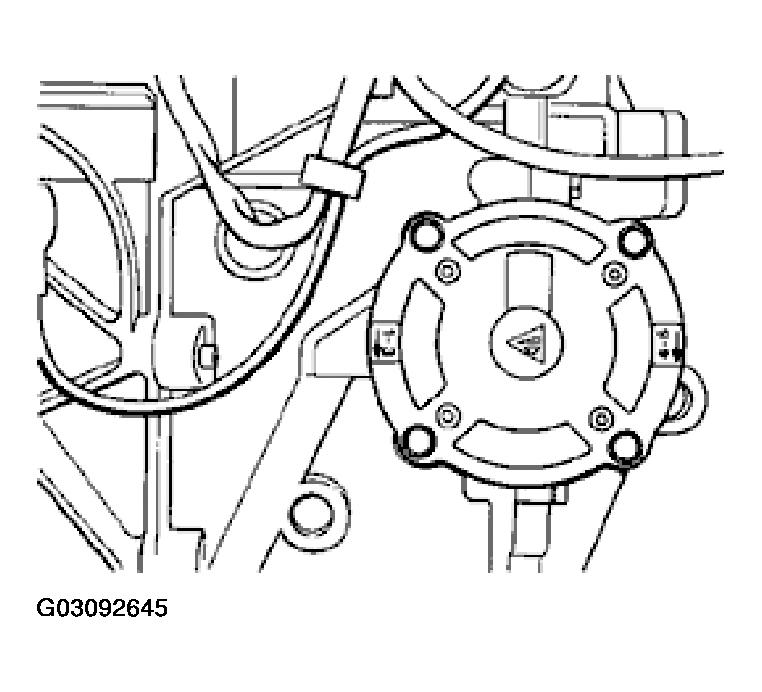

Fig 1: Identifying Installation Position Of Oil Extraction Pump - Cylinder Head 1-3 (Flywheel Side)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Installation position of oil extraction pump at cylinder head 4 - 6 (pulley side): The arrow for the direction of rotation or the marking "4 - 6" must face the crankcase or the coolant temperature sensor.

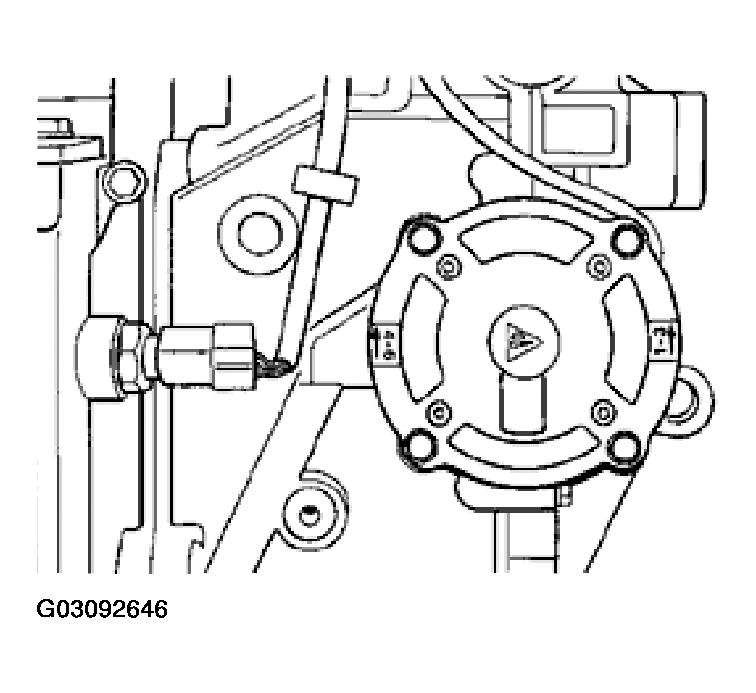

Fig 2: Identifying Installation Position Of Coolant Temperature Sensor - Cylinder Head 4-6 (Pulley Side)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

NOTE:

The oil extraction pumps on the cylinder heads are identical parts. Therefore, the installation position or direction of rotation must be correct.

Installation position of oil extraction pump at cylinder head 1 - 3 (flywheel side): The arrow for the direction of rotation or the marking "1 - 3" must face the crankcase.

Fig 1: Identifying Installation Position Of Extraction Pump - Cylinder Head 1-3 (Flywheel Side)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fig 2: Identifying Installation Position Of Extraction Pump - Cylinder Head 4-6 (Pulley Side)

Courtesy of PORSCHE OF NORTH AMERICA, INC.
