Removing And Installing Air/Oil Separator
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
Engine removed

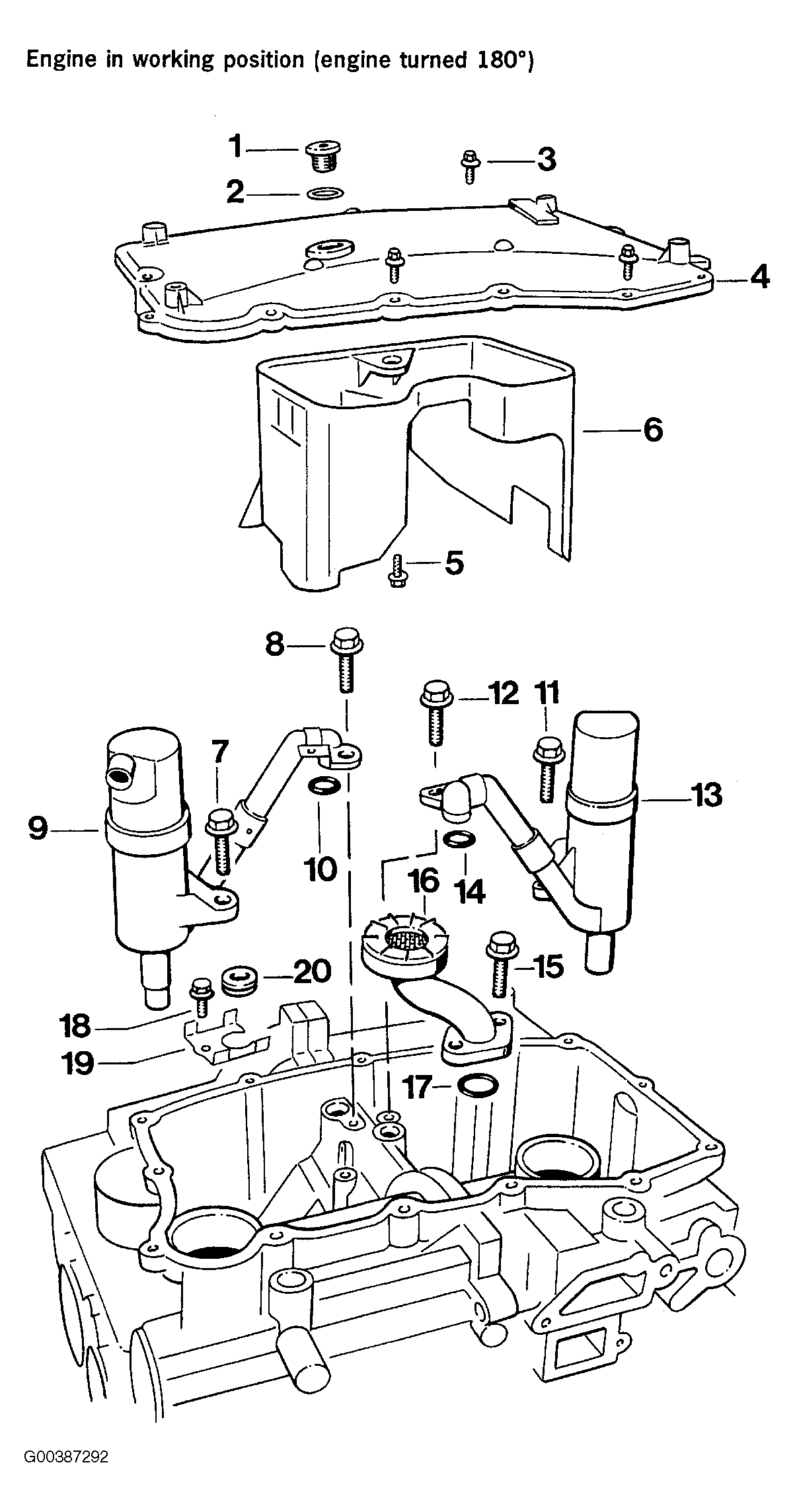

Engine in working position (engine turned 180°)
REMOVAL AND INSTALLATION PROCEDURE FOR ENGINE LUBRICATION
| No. | Designation | Qty. | Installation | ||
|---|---|---|---|---|---|
| 1(1) | Oil drain plug M18 x 1.5 | 1 | - | ||
| 2(1) | Sealing ring A18 x 24 | 1 | Always replace | ||
| 3(1) | Hexagon-head bolt M6 x 16 | 13 | - | ||
| 4(1) | Oil pan | 1 | Clean sealing surface and apply silicone bead | ||
| 5(1) | Hexagon-head bolt M6 x 16 | 3 | - | ||
| 6(1) | Bulkhead box | 1 | - | ||
| 7(1) | Hexagon-head bolt M6 x 20 | 1 | - | ||
| 8(1) | Hexagon-head bolt M6 x 20 | 1 | - | ||
| 9(1) | Air/oil separator | 1 | - | ||
| 10(1) | O-ring 12 x 2 | - | |||
| 11(1) | Hexagon-head bolt M6 x 20 | 1 | - | ||
| 12(1) | Hexagon-head bolt M6 x 12 | 1 | - | ||
| 13(1) | Air/oil separator | 1 | - | ||
| 14(1) | O-ring 12 x 2 | 1 | Lightly oiled | ||
| 15(1) | Hexagon-head bolt M6 x 20 (micro-encapsulated) | 2 | Replace | ||
| 16(1) | Oil suction pipe | 1 | - | ||
| 17(1) | O-ring 30 x 3 | - | Lightly oiled | ||
| 18(1) | Hexagon-head bolt M6 x 12 | 1 | - | ||
| 19(1) | Holder for oil probe | 1 | - | ||
| 20(1) | Grommet 9.5 x 18 x 1.2 | 1 | - | ||
|
|||||
