Application Of Silicone Bead

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

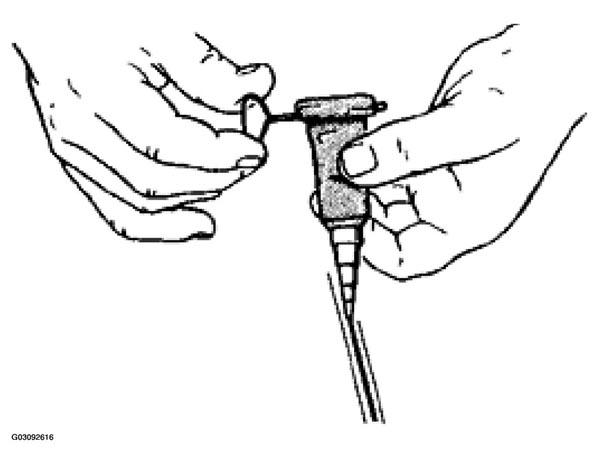

  1. At the processing nozzle, cut off the first metering step.
  2. Apply a uniform bead approximately 1.5 mm wide to the cleaned sealing surface of the oil pan.
  3. Place the oil pan in the correct position carefully, so that the sealing bead is not damaged. Screw two studs or centering pins into the corners of the crankcase housing halves as centering aids.
    Fig 1: Applying Sealant To Sealing Surface Of The Oil Pan
    G03092616Courtesy of PORSCHE OF NORTH AMERICA, INC.
