Adjusting Tool

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If the special tool 9592 is being used for the first time, (four) additional threaded holes must be applied.

Lay the support plate 9592/1 on the rear of the retainer plate 9592 and fasten with four hexagon-head bolts M8 x 25.

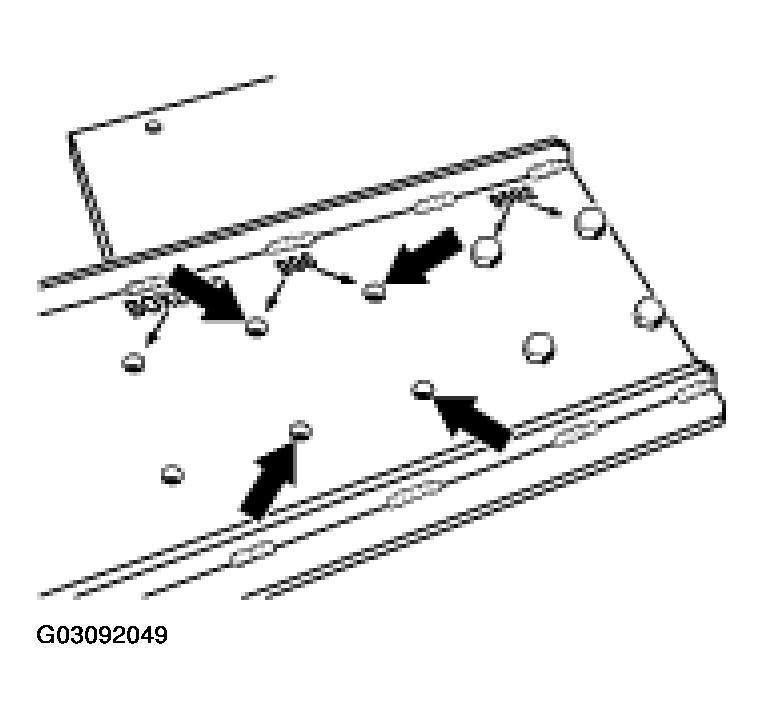

Fig 1: Locating Hexagon-Head Bolts
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Countersink the retainer plate at the designated bores -arrows- with a 9 mm drill bit. See Fig 2. The support plate serves as the drilling template.

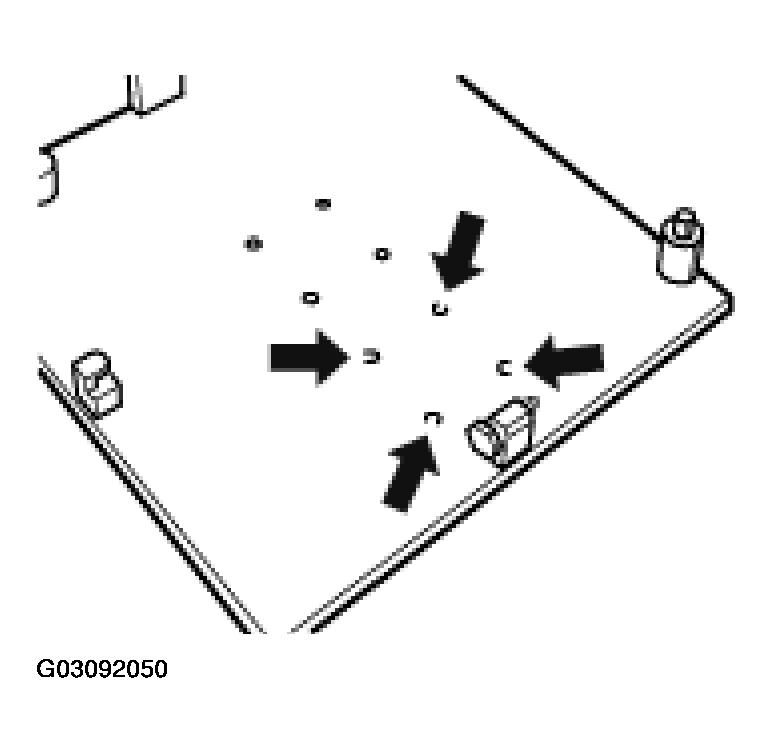

Fig 2: Locating Drilled Holes
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Drill through the countersunk bores on the retainer plate with a drill bit sized 6.8 mm and then cut an M8 thread.

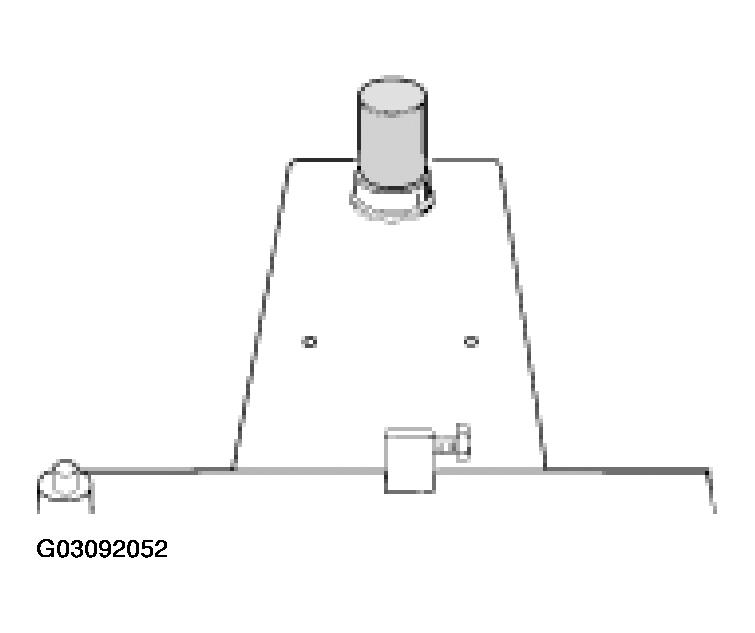

Fig 3: Locating Holes
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Fasten the special tool adapter 9163/2 with a hexagon-head bolt M8 x 25 (bolt quality 10.9) and hexagon-head bolts M8 x 16 (bolt quality 10.9) at the designated position Boxster. The adapter and the support plate are fastened on the retainer plate with the M8 x 25 hexagon-head bolts. The M8 x 16 hexagon head bolts connect the adapter with the support plate.

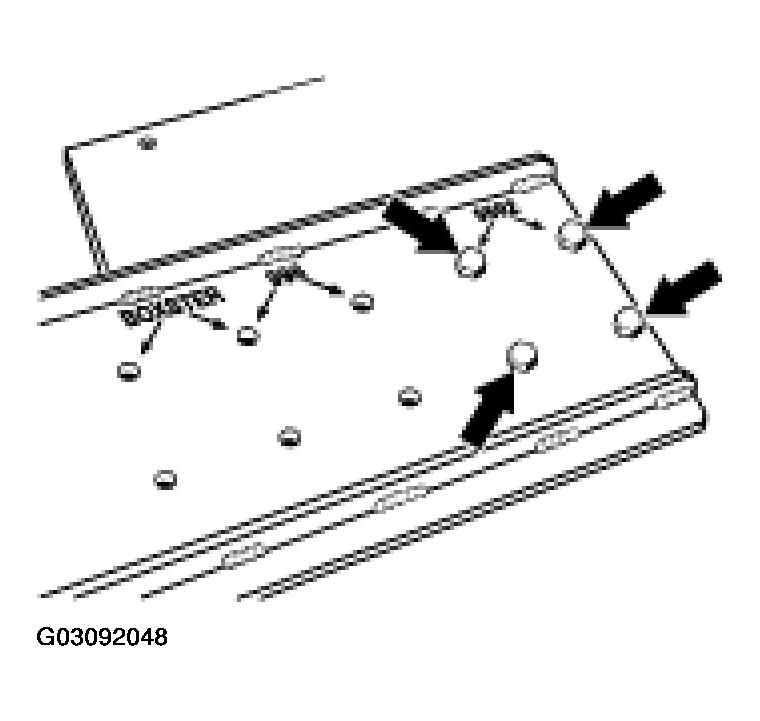

Fig 4: Fastening Special Tool Adapter 9163/2
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Support for Tiptronic transmission with three M6 x 20 (2 ea.) and M8 x 25 (1 ea.) wood screws.
Fit complete retainer plate on the workshop jack.

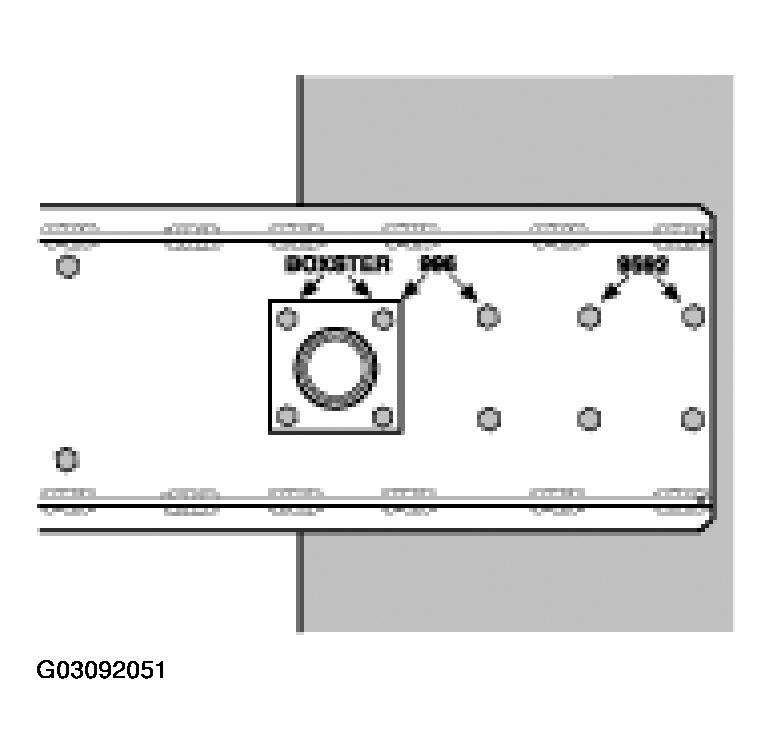

Fig 5: Fitting Engine Retainer Plate On Workshop Jack

Courtesy of PORSCHE OF NORTH AMERICA, INC.
