Special Tools

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

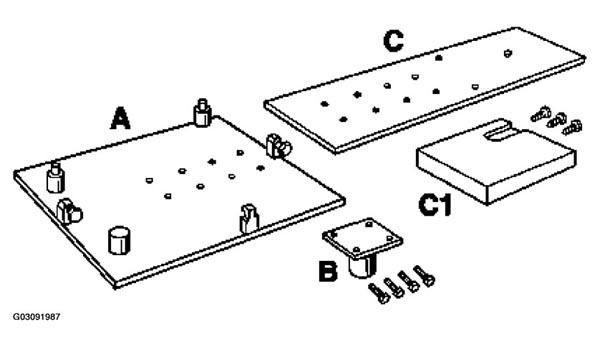

Fig 1: Identifying Special Tools
G03091987Courtesy of PORSCHE OF NORTH AMERICA, INC.
SPECIAL TOOLS

Item Designation Remarks
A(1) Retainer plate In conjunction with workshop jack
B(1) Adapter Or use adapter of transmission holding plate, special tool 9163 for the 928 model
C(1) Support plate Contained in scope of delivery of 9592/1
C1(1) Support for Tiptronic transmission Contained in scope of delivery of 9592/1
(1) For explanation see Fig 1

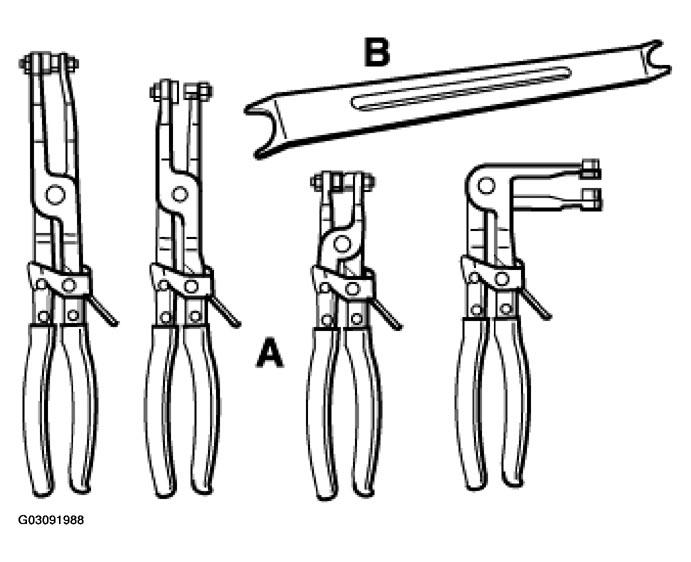

Fig 2: Identifying Special Tools
G03091988Courtesy of PORSCHE OF NORTH AMERICA, INC.
SPECIAL TOOLS

Item Designation Remarks
A(1) Spring-band clamp pliers
B(1) Testing tool for plug-in couplings Used to check whether the plug-in couplings are seated properly. Suitable for pressure and return lines (nominal diameter 6 and nominal diameter 10)
(1) For explanation see Fig 2
