Installing Engine

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

In order to facilitate the fitting of the air-conditioning compressor, it should be moved back into its installation position during the running-in of the engine.

Lift the engine-transmission unit carefully and in steps. Have a second person observe the engine-transmission clearance at the same time. When lifting, pay particular attention to the clearance between the rear-axle longitudinal support and the VarioCam cable. Place the air-conditioning compressor in its installation position at this stage.

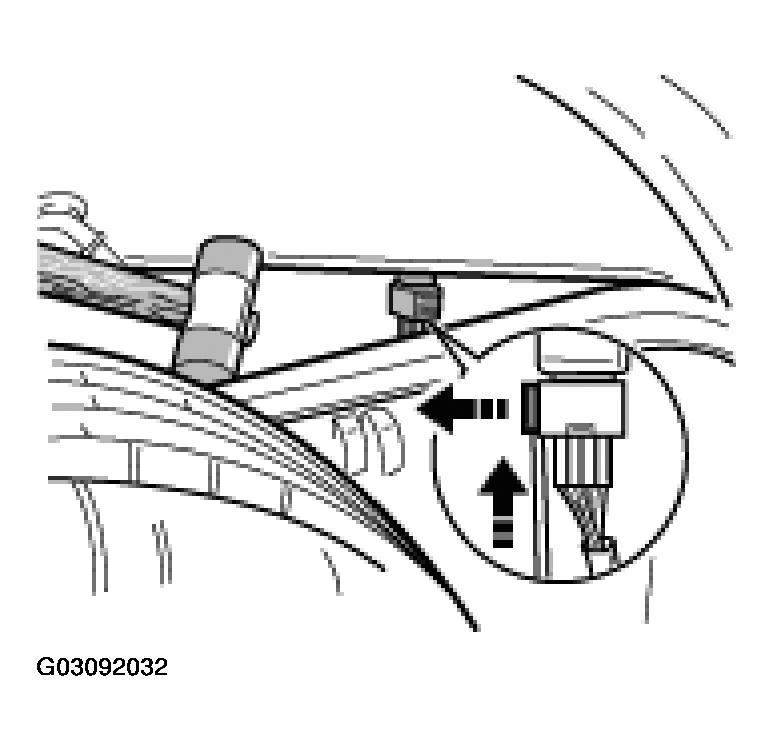

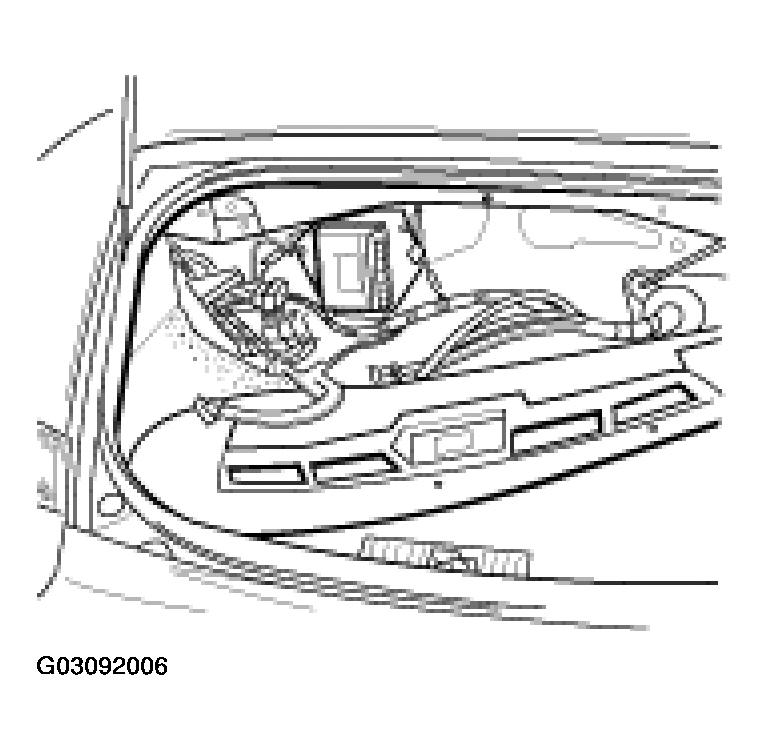

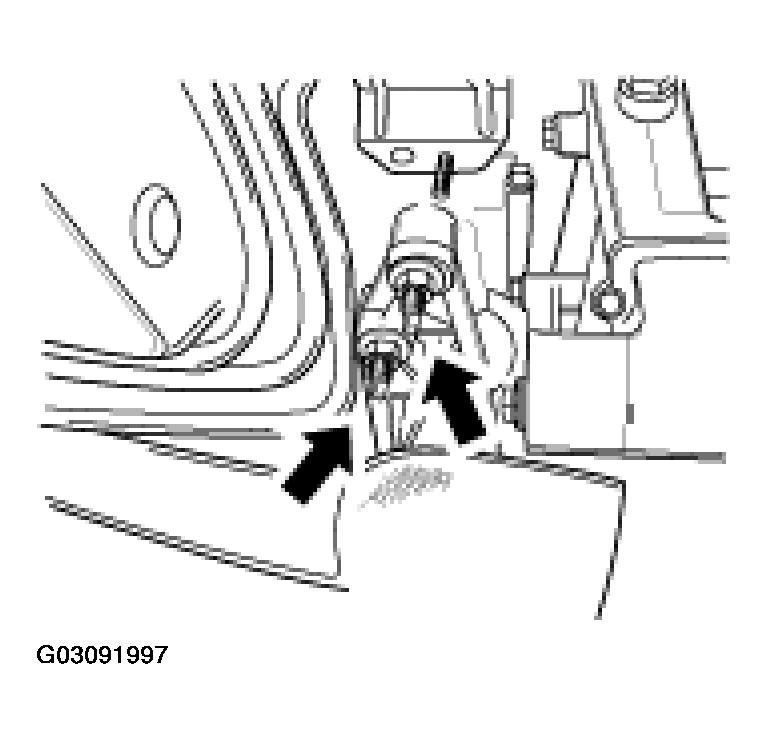

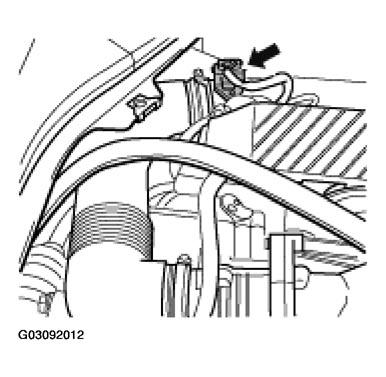

Fig 1: Locating VarioCam Cable
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Push the engine wiring harness through the bulkhead and into the luggage compartment before the final installation position is reached.

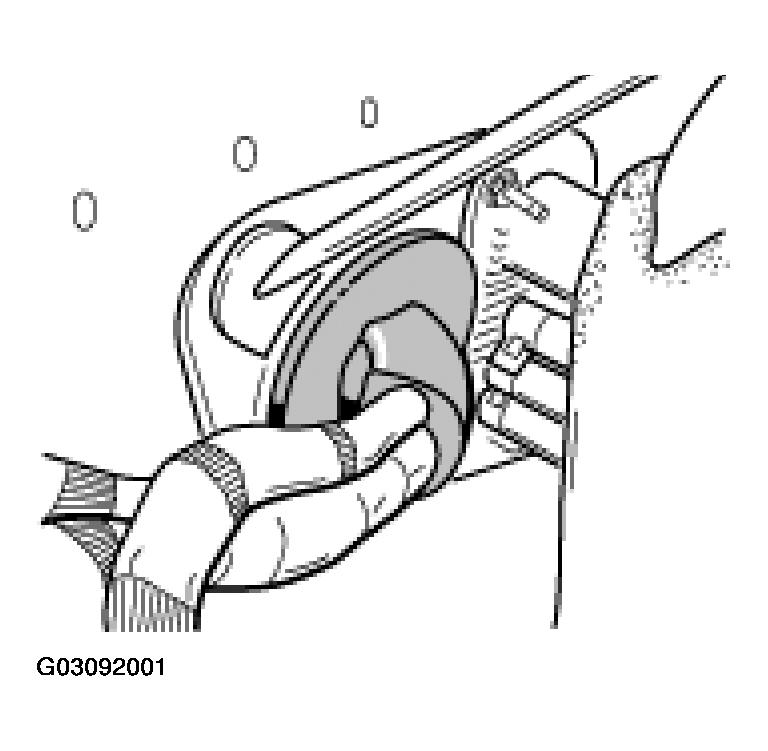

Fig 2: Pushing Engine Wiring Harness Through The Bulkhead And Into The Luggage Compartment
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Install engine carrier again. Tighten the four fastening nuts to 65 Nm (48 ft.lb).

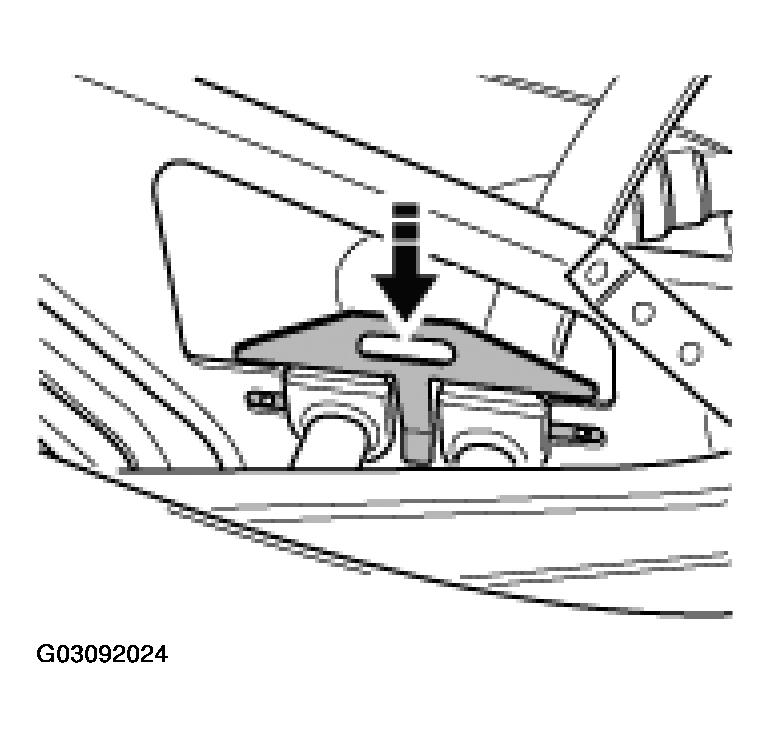

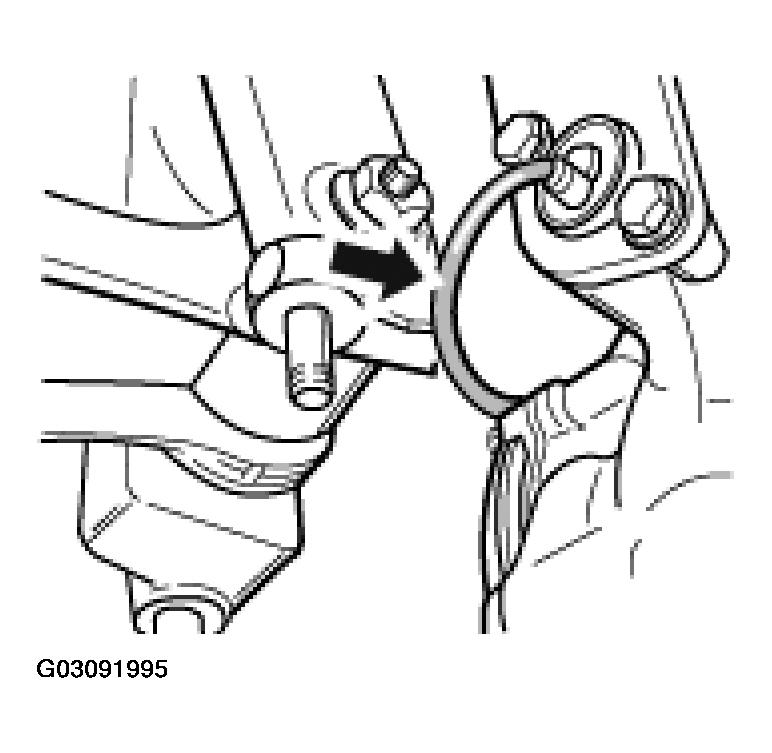

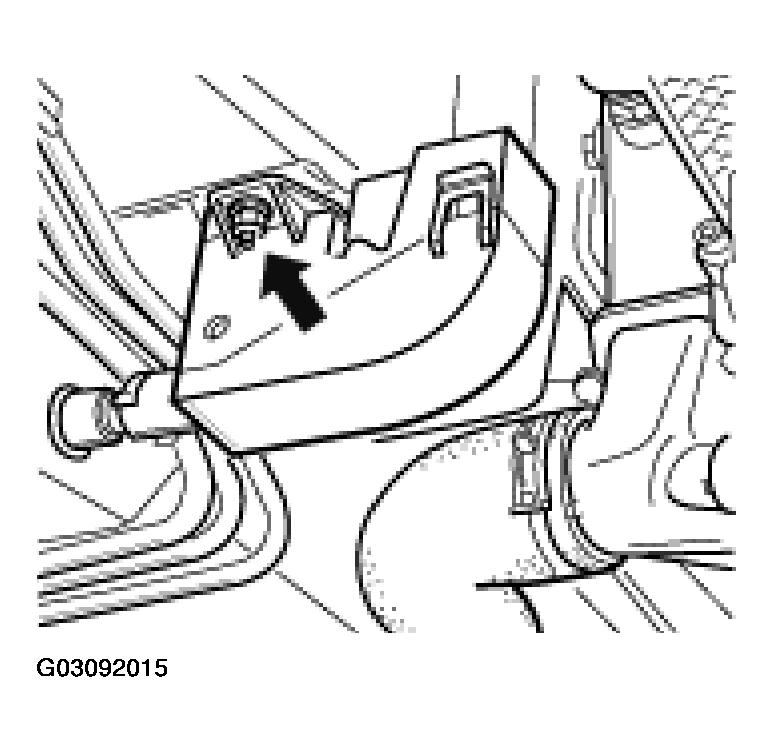

Fig 3: Installing Engine Carrier
Courtesy of PORSCHE OF NORTH AMERICA, INC.
WARNING:
Risk of damage

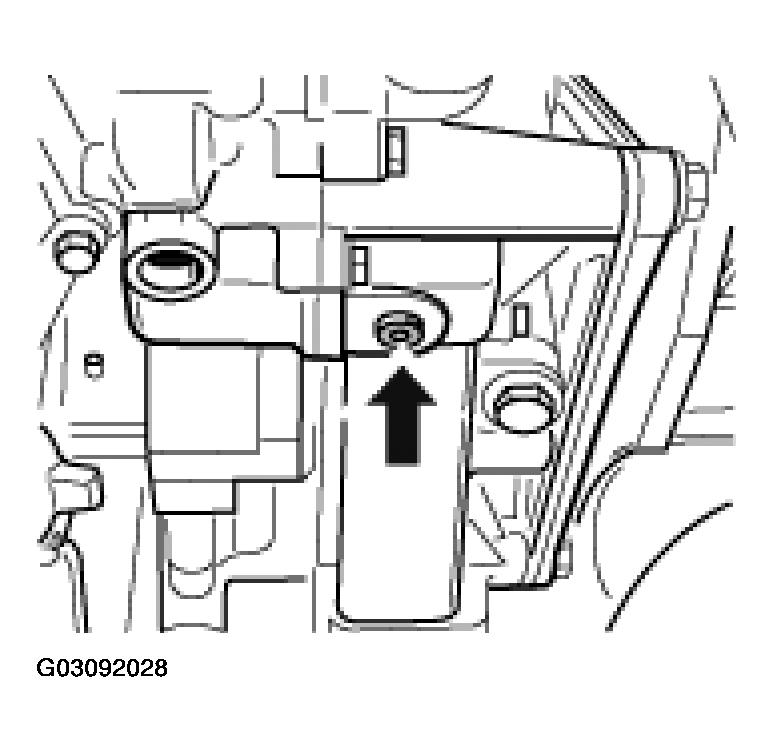

- Do not turn the multiple-tooth nut -C-!
Install the transmission carrier and the hydraulic mount again. Tighten the M8 screws to 33 Nm (24 ft.lb) and the M10 screws to 65 Nm (48 ft.lb).

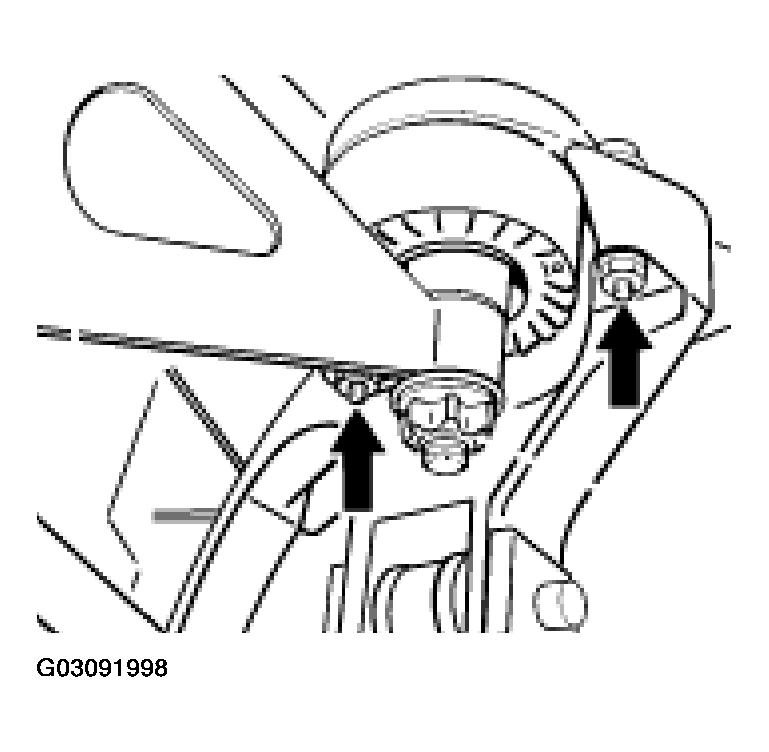

Fig 4: Installing Transmission Carrier
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Remove the engine-transmission retainer plate. As soon as the engine has been fastened again, the car jack and the retainer plate can be removed.

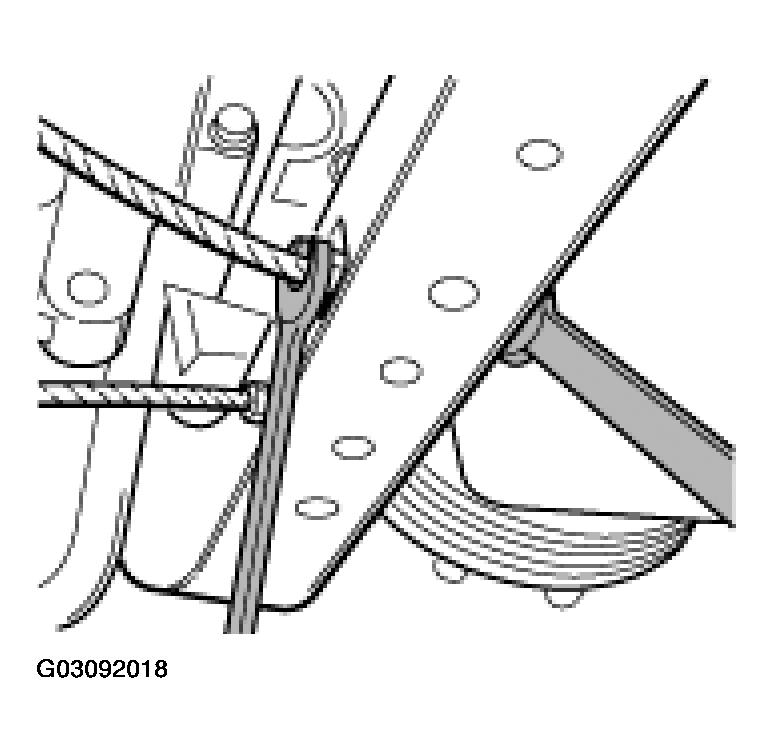

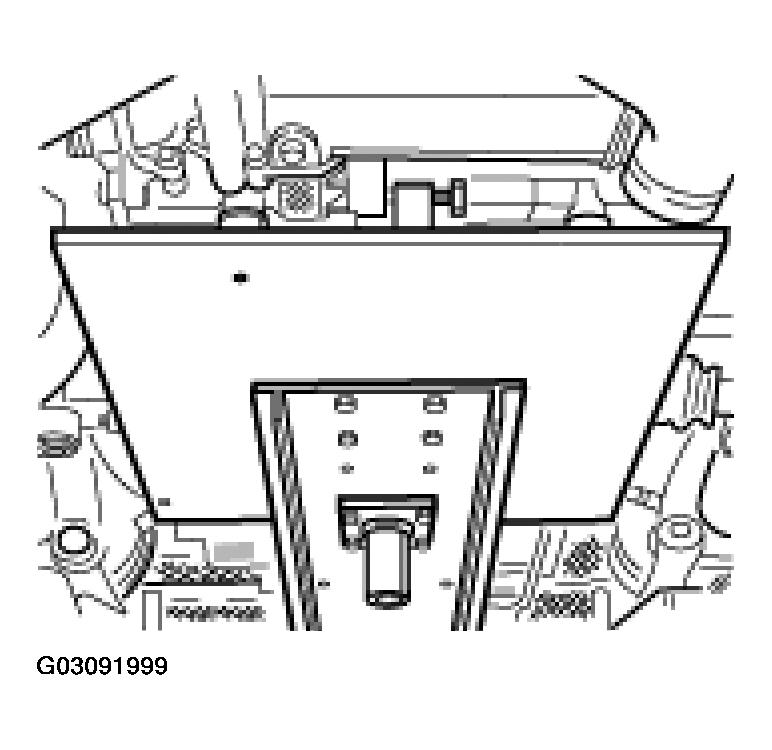

Fig 5: Removing Engine-Transmission Retainer Plate
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Clip the guide tube of the oil dip stick into the socket.

Fig 6: Clipping Guide Tube Of Oil Dip Stick Into Socket
Courtesy of PORSCHE OF NORTH AMERICA, INC.

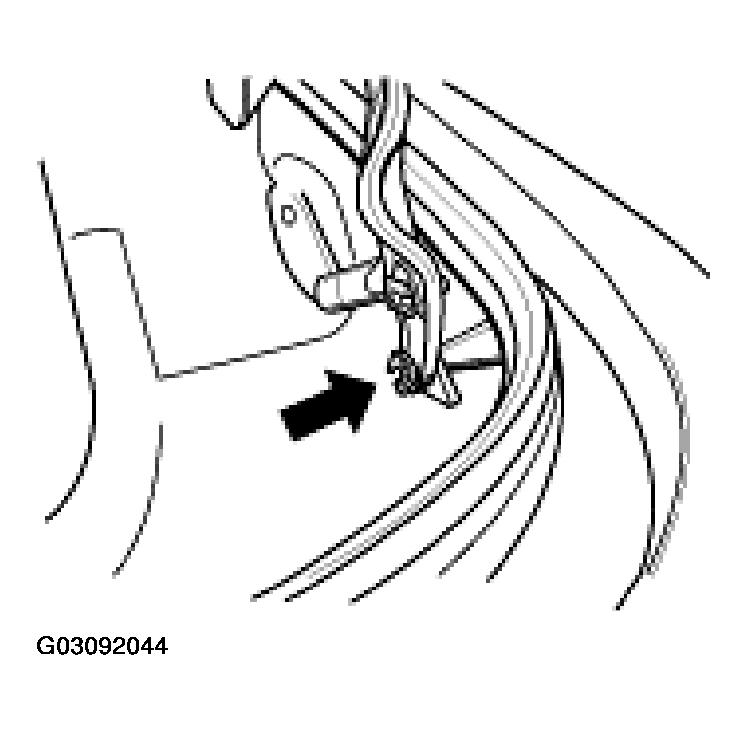

Fit the rubber sleeve of the wiring harness again.

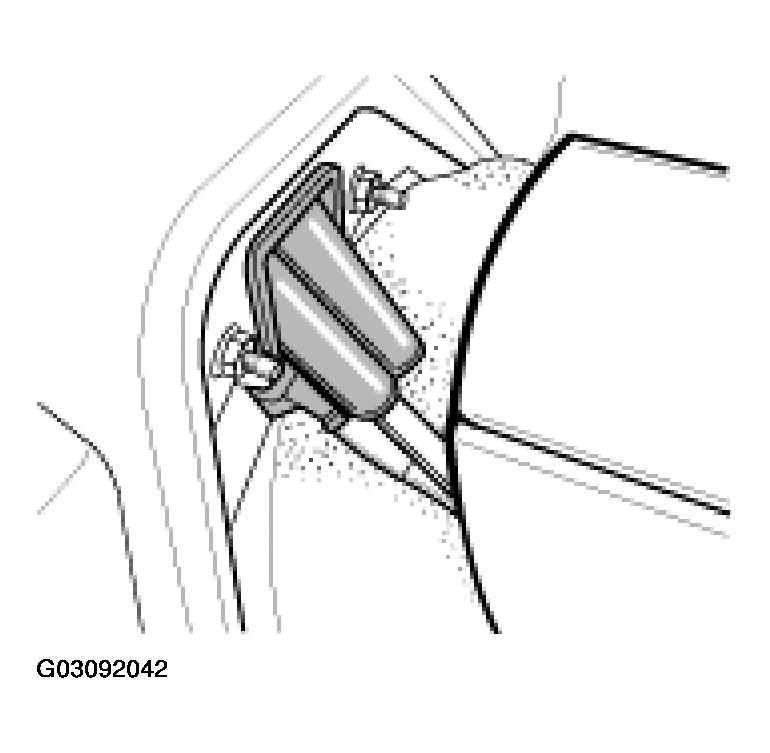

Fig 7: Fitting Rubber Sleeve Of Wiring Harness
Courtesy of PORSCHE OF NORTH AMERICA, INC.

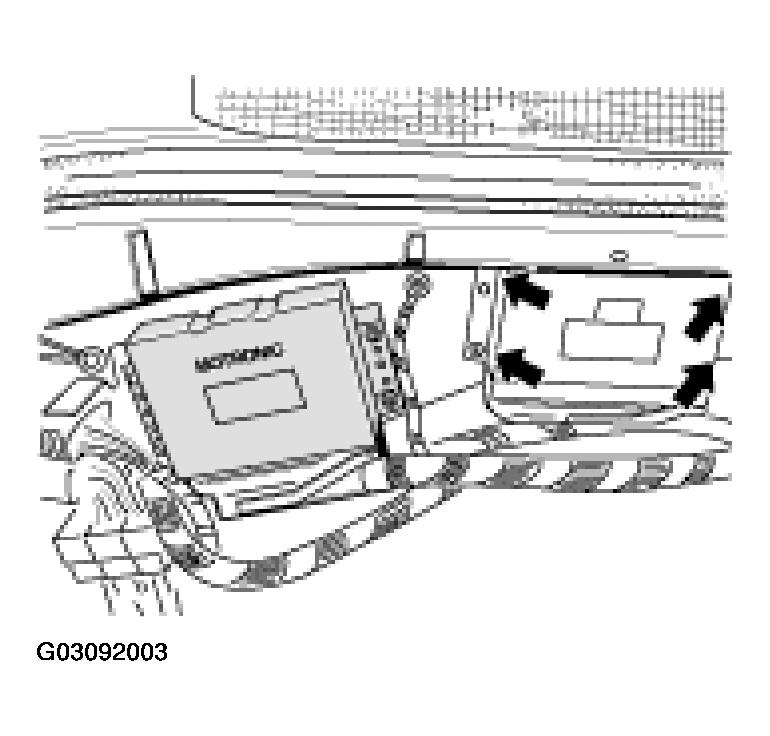

Re-connect engine control module. To do so, start at the bottom. Pay attention to the plug designations on the control module.

Fig 8: Connecting Engine Control Module
Courtesy of PORSCHE OF NORTH AMERICA, INC.

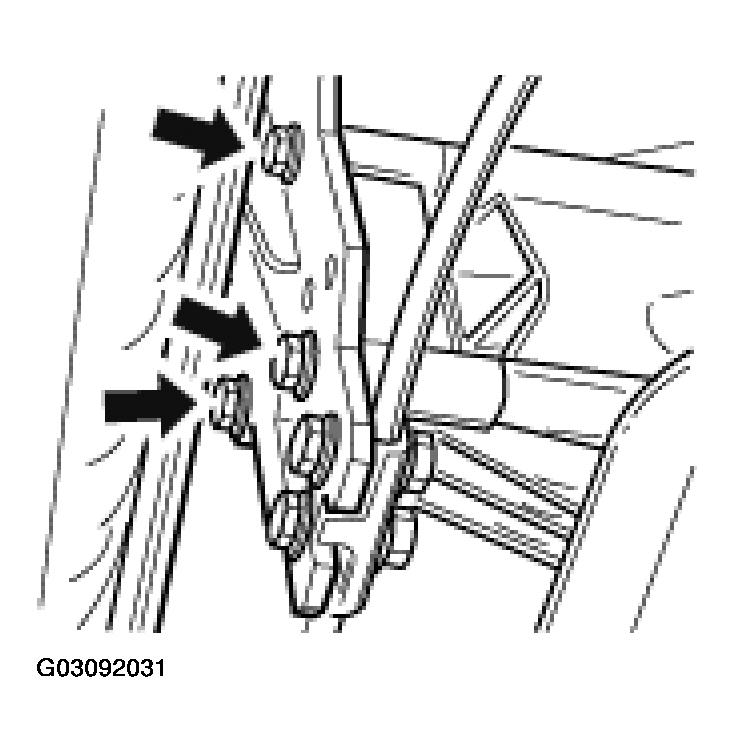

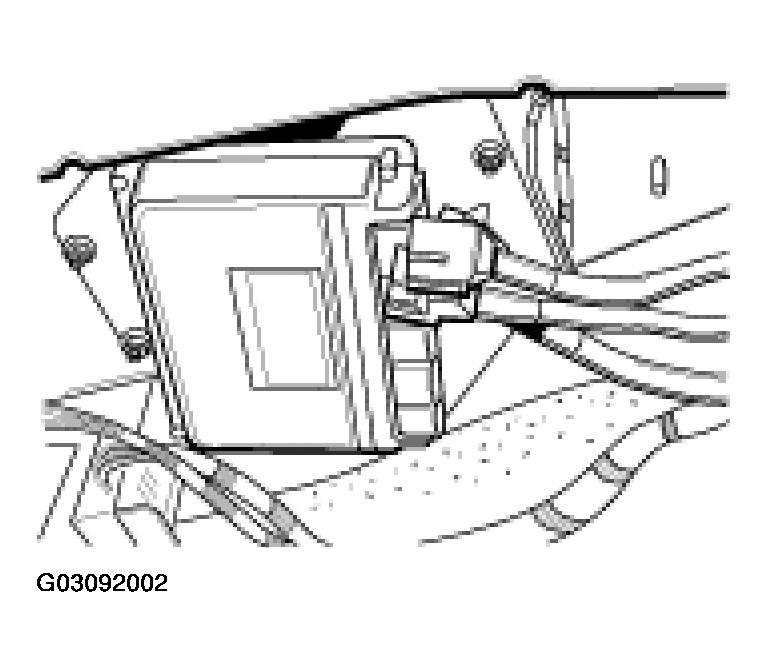

Re-connect and install the Tiptronic control module. Tighten the three fastening nuts.

Fig 9: Installing Tiptronic Control Module
Courtesy of PORSCHE OF NORTH AMERICA, INC.

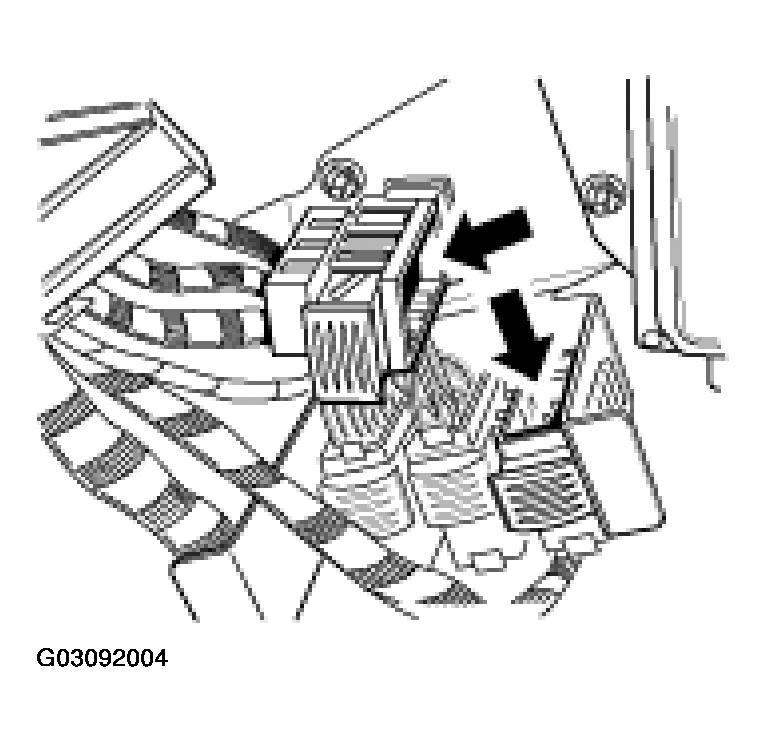

Connect the plug connections (X3/1, X3/2 and X59) of the engine wiring harness. To do so, insert the plug and lock the lateral slide.

Fig 10: Connecting Plug Connections Of The Engine Wiring Harness
Courtesy of PORSCHE OF NORTH AMERICA, INC.

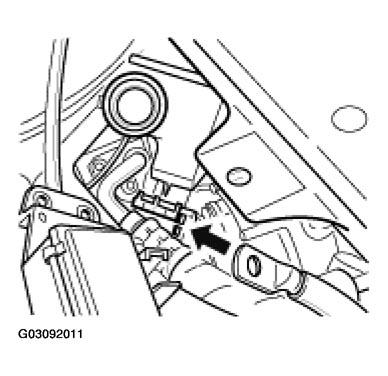

Connect the ground point of the control module again and tighten the fastening nut.

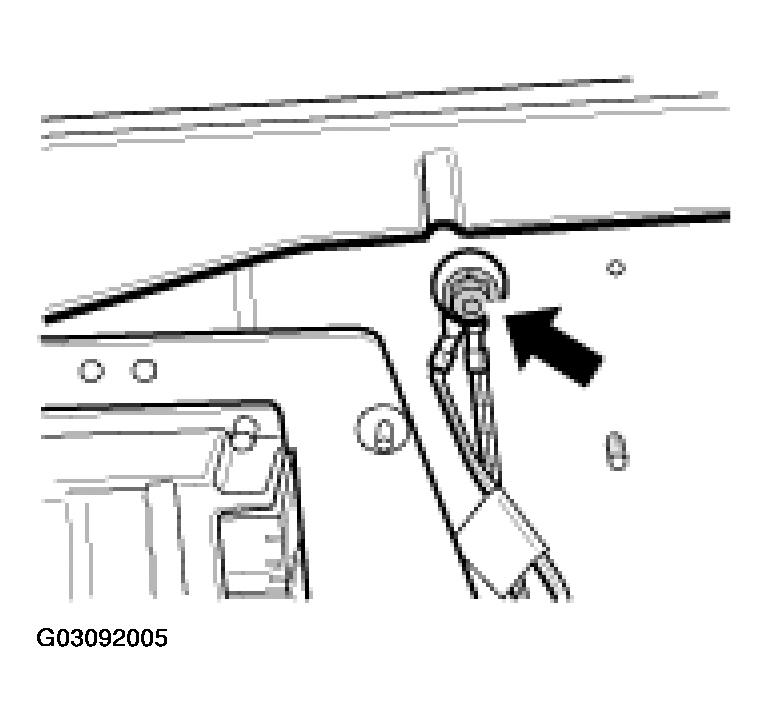

Fig 11: Connecting Ground Point Of Control Module
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Install the luggage compartment lining of the rear luggage compartment.

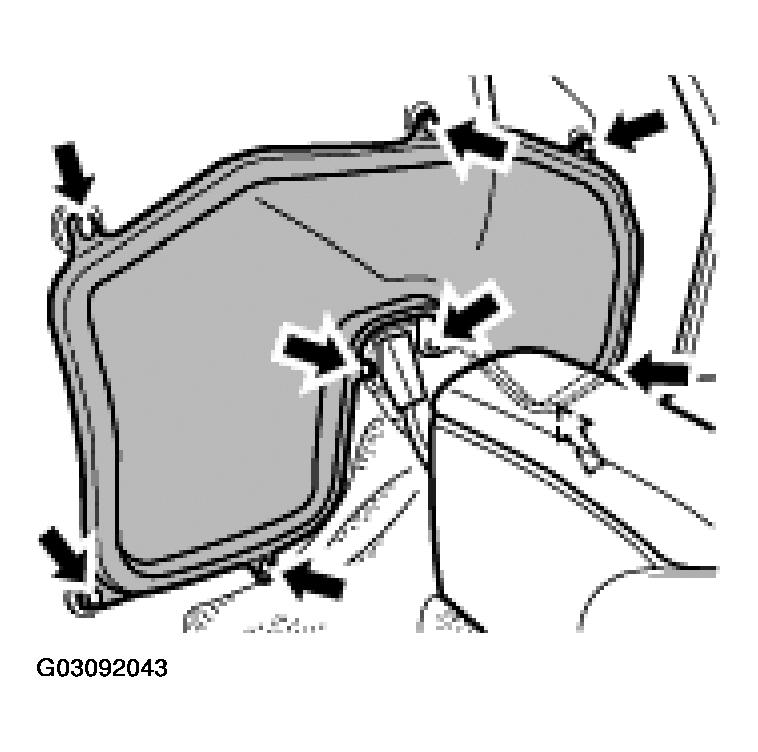

Fig 12: Installing Luggage Compartment Lining Of Rear Luggage Compartment
Courtesy of PORSCHE OF NORTH AMERICA, INC.

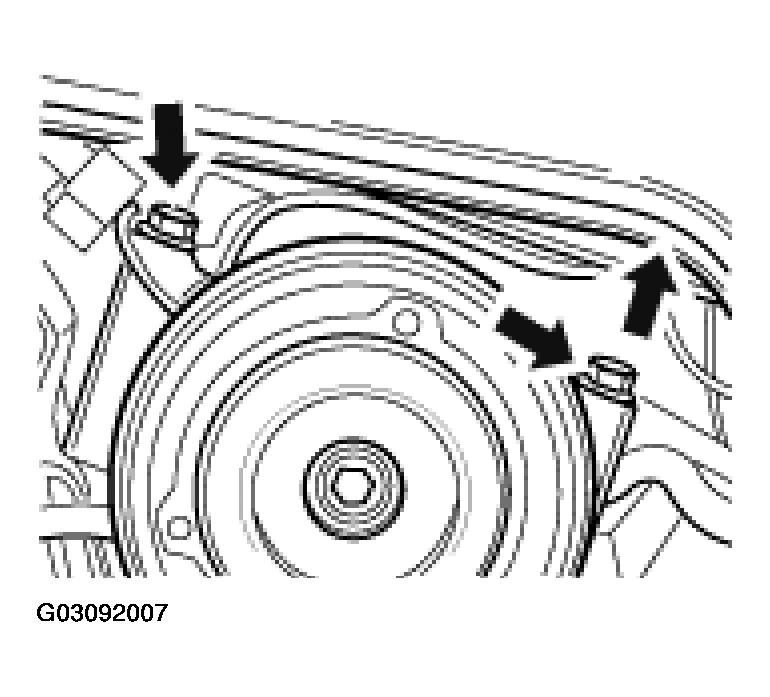

Screw air-conditioning compressor tight. Tighten the three fastening screws to 23 Nm (17 ft.lb).

Fig 13: Tightening Three Air-Conditioning Compressor Fastening Screws
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Check the drive belt for damage and replace it if necessary. Fit the belt in its original running direction once more. The fitting sequence is shown in the following illustration.

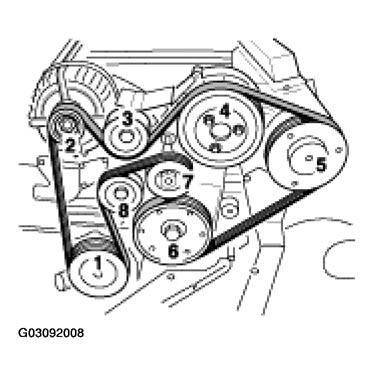

Fig 14: Identifying Drive (Serpentine) Belt Installation Sequence (2.5L)
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Tighten the fuel line on the engine and the ground cable again. Make sure without fail to counter with a wrench when tightening the fuel line. The ground cable is tightened to 23 Nm (17 ft.lb) and the fuel supply line to 30 Nm (22 ft.lb).

Fig 15: Tightening Fuel Line
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Push the vacuum line for the brake booster in a straight line onto the flange, until the plug is heard engaging. Then install the grey snap ring again. Check that the line is seated properly by pulling on it gently.

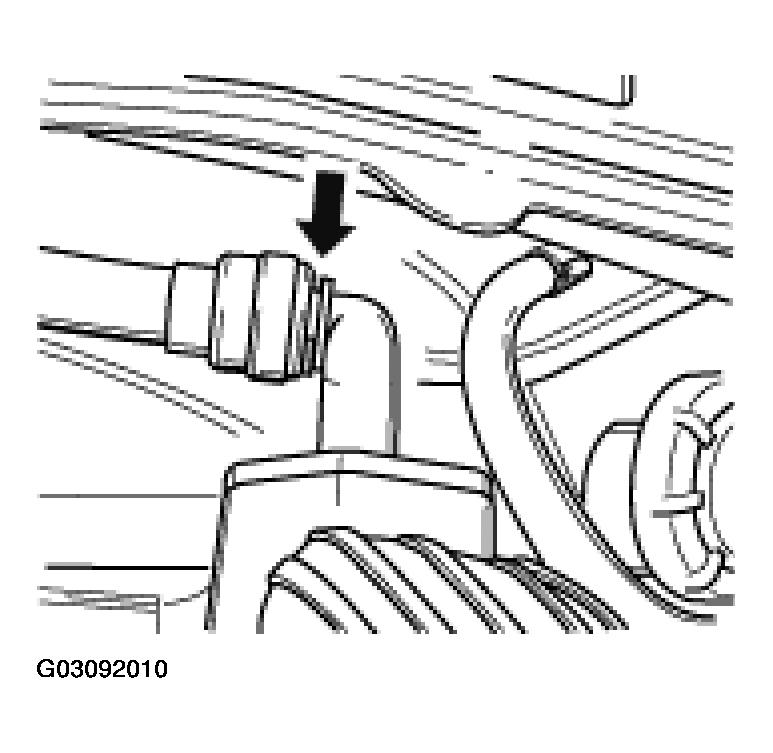

Fig 16: Installing Snap Ring For Vacuum Line For The Brake Booster
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Install the expansion tank of the power steering again. Check the sealing rings and replace, if necessary. Turn the lower adjusting ring to its original position and position the tank of the power steering. Press the tank downwards and at the same time turn the ring until the markings coincide. Then fill the tank with Pentosin according to the regulations.

Fig 17: Installing Expansion Tank Of Power Steering
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Lay the B+ line of the alternator over the connecting bolt and tighten the fastening screw to 10 Nm (7.5 ft.lb). Close the protective cap of the B+ box.
Re-connect hot film mass air flow meter. Connect the connecting tube between the hot film mass air flow meter and the intake system and tighten the hose clamp.

Fig 18: Connecting Hot Film Mass Air Flow Meter
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Attach oil filler neck. Push the oil filler neck back onto the flange and secure with a spring band clamp.

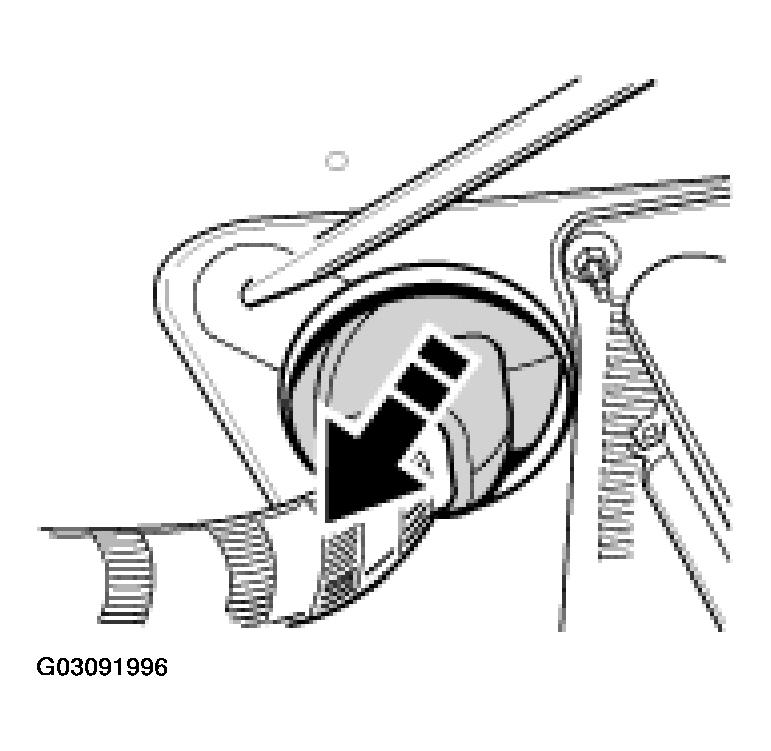

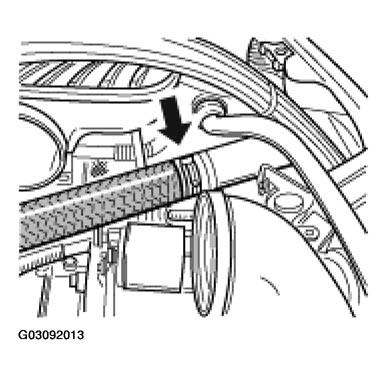

Fig 19: Attaching Oil Filler Neck
Courtesy of PORSCHE OF NORTH AMERICA, INC.

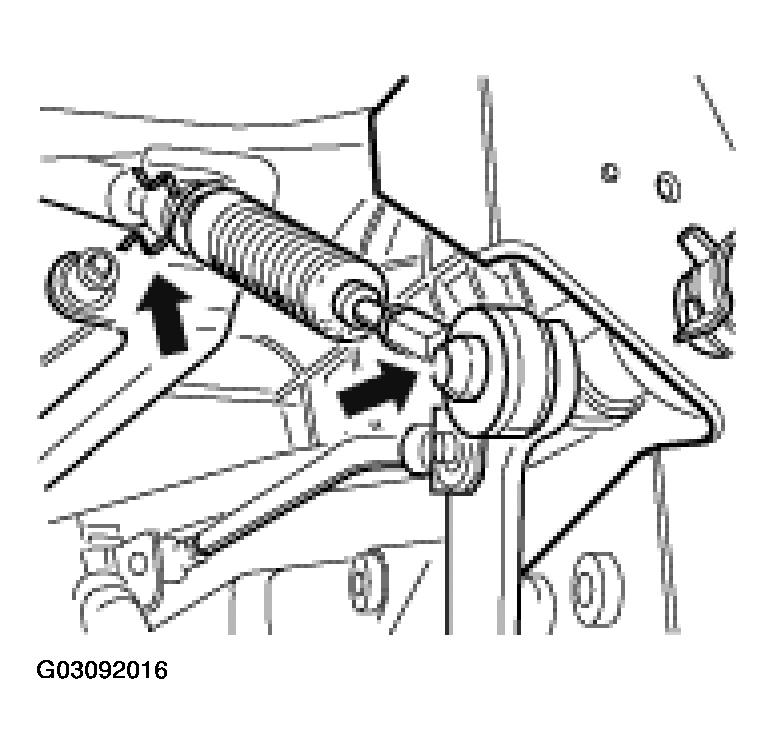

Engage the accelerator cable.

Fig 20: Engaging Accelerator Cable
Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fig 21: Closing Deflector Box
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Engage selector lever cable at deflection lever and at the transmission support.

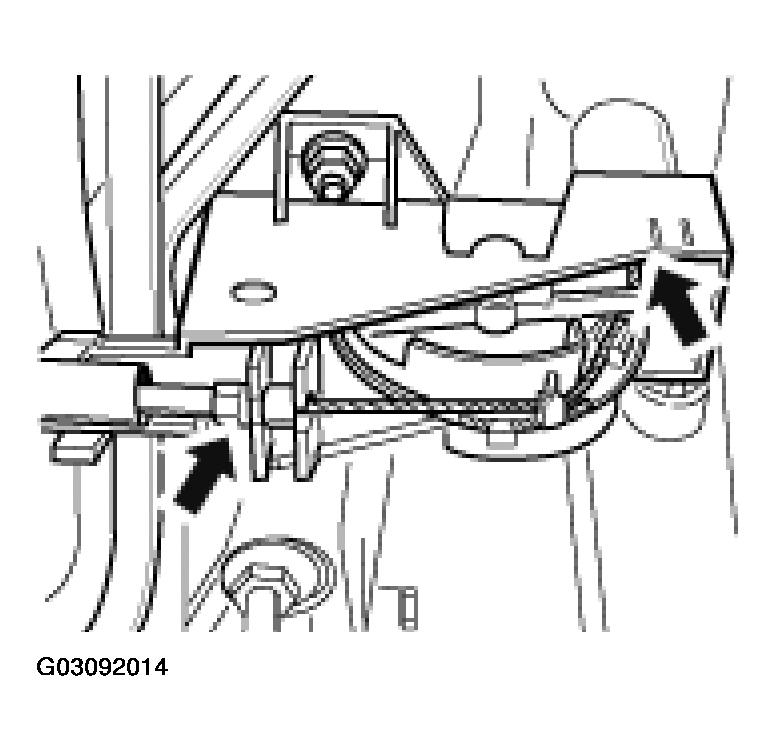

Fig 22: Engaging Selector Lever Cable
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Position the plug at the transmission socket. Disconnect the plug and turn clockwise.

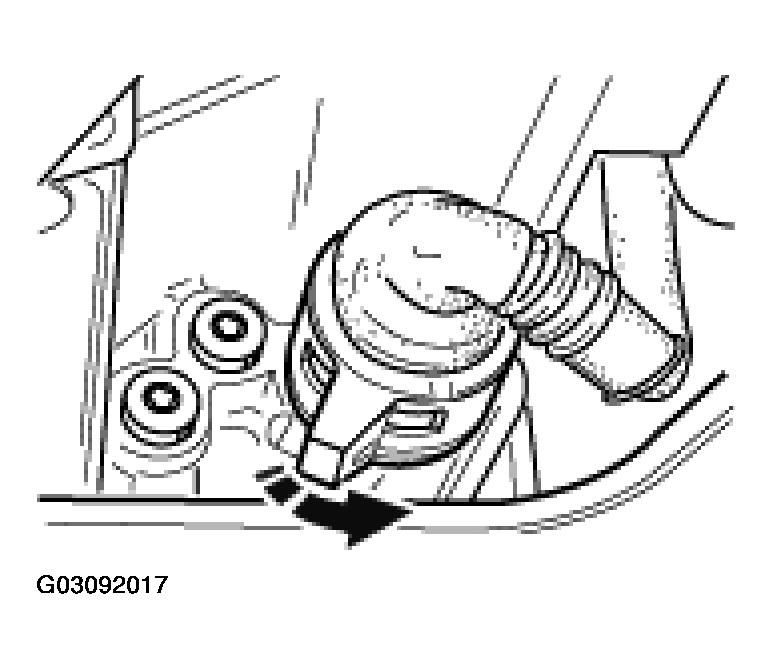

Fig 23: Disconnecting Transmission Socket Plug
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Re-connect the plug for the multifunction switch.

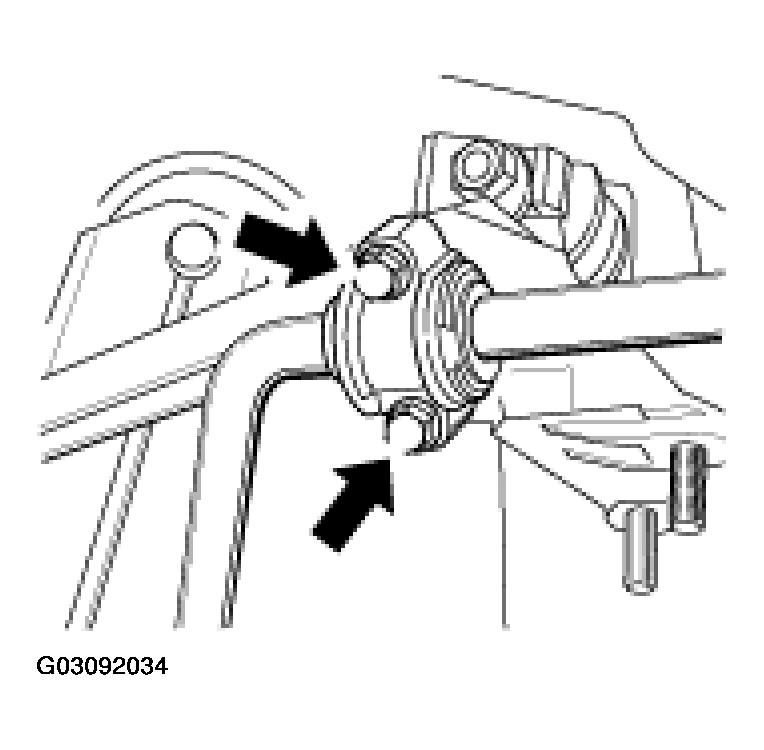

Screw the drive shafts to the transmission again. The tightening torque is 39 Nm (29 ft.lb). Then remove the protective sheaths.
Re-tighten cable. Fit the engine cables through the rear-axle support again and tighten the fastening nuts. Make sure to counter with a wrench when tightening. The tightening torque is 23 Nm (17 ft.lb).

Fig 24: Tightening Engine Cable
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Connect the power-assisted steering lines. To do so, tilt the holder on one side and pull out simultaneously.

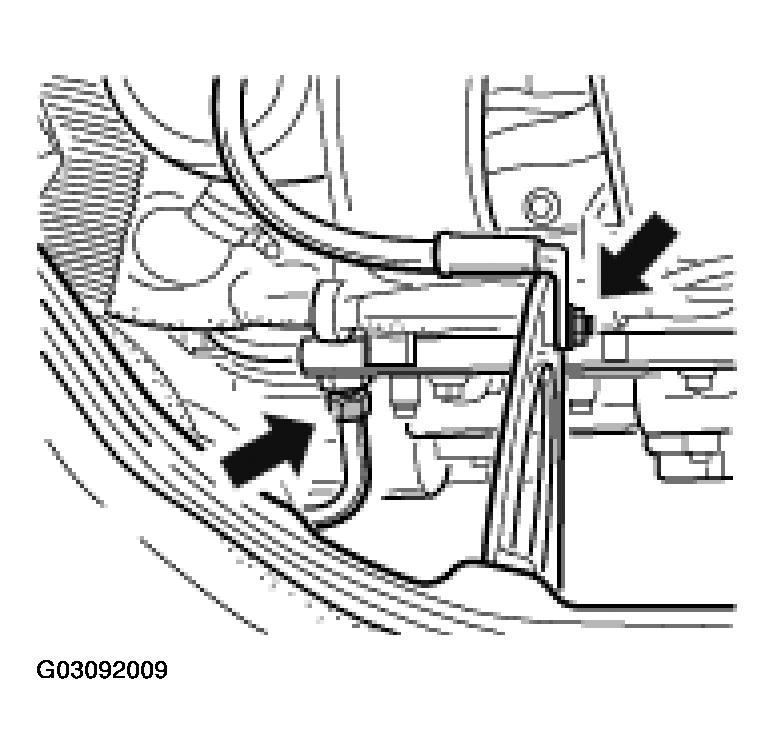

Fig 25: Connecting Power-Assisted Steering Lines
Courtesy of PORSCHE OF NORTH AMERICA, INC.

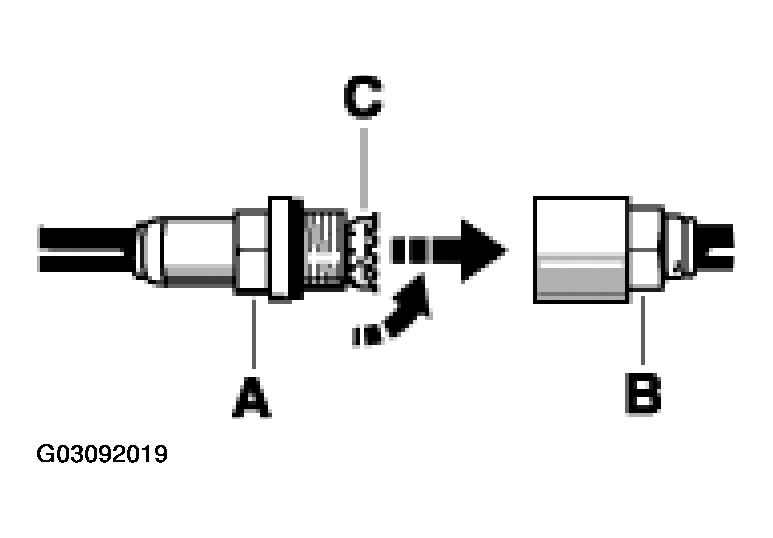

Detach threaded part -A- by pulling it off the nipple. See Fig 26.

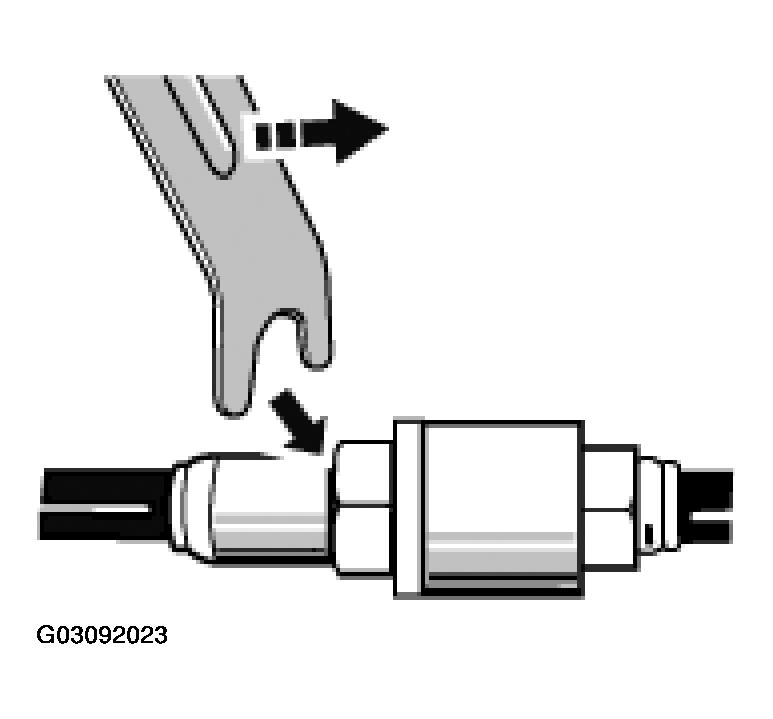

Fig 26: Detaching Threaded Part - A
Courtesy of PORSCHE OF NORTH AMERICA, INC.

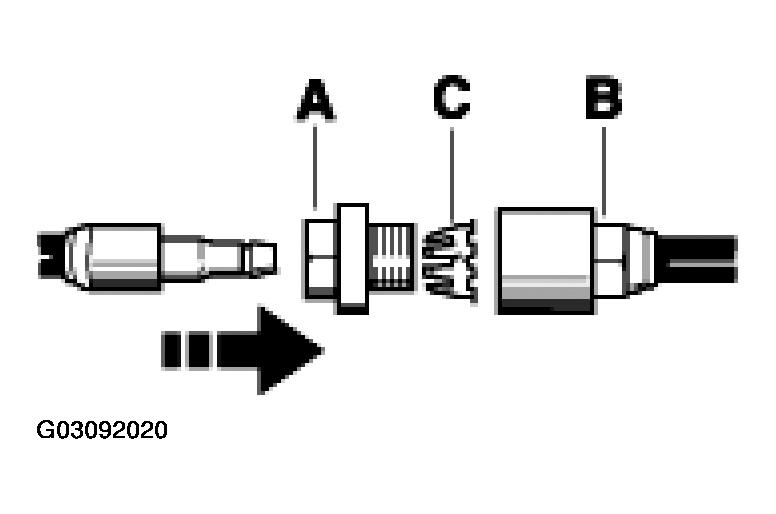

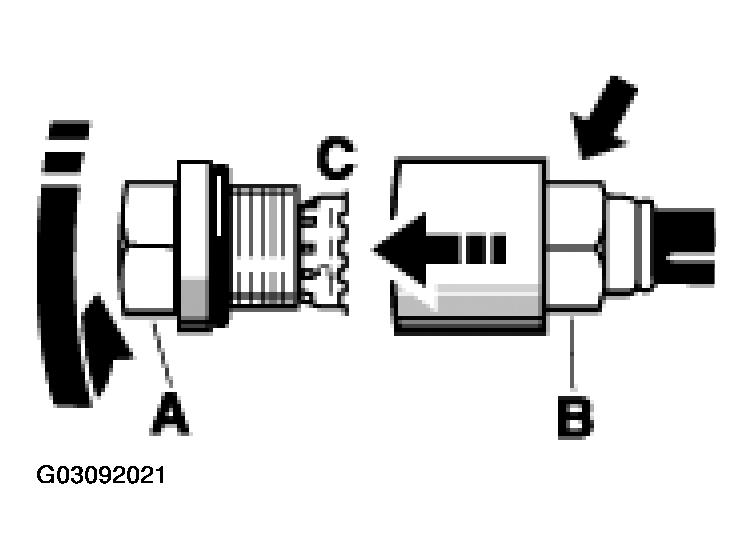

Insert the holder -C- into the threaded part -A- and screw both into the plug-in coupling -B- and tighten. See Fig 27. Make sure to counter with a wrench when tightening. The tightening torque for the steering pressure line is 30 Nm (22 ft.lb) (wrench size 15). The tightening torque for the steering return line is 40 Nm (30 ft.lb) (wrench size 19).

Fig 27: Inserting Holder - C
Courtesy of PORSCHE OF NORTH AMERICA, INC.

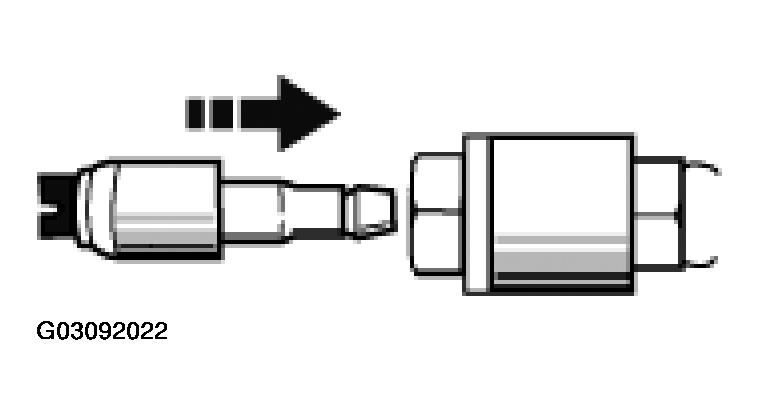

Insert the screwed plug into the plug-in coupling in a straight line. The plug must audibly engage in the holder.

Fig 28: Inserting Screwed Plug Into Plug-In Coupling
Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE:
- The plug-in connection is designed so that the plug can be shifted in the plug-in coupling by approx. 1 mm in axial direction by slightly pulling or pressing.
The correct engagement of the plug-in couplings should be checked using the special tool 9623. To check this, insert the special tool 9623 between the plug-in coupling and the screwed plug and tilt the tool slightly. The plug must not slide out.

Fig 29: Inserting Special Tool 9623
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Install the servo lines, the return line and the vacuum hose for the brake booster again and insert the retaining clip.

Fig 30: Installing Servo Lines
Courtesy of PORSCHE OF NORTH AMERICA, INC.

CAUTION: Risk of damage. The fuel lines must not be kinked.
Connect the fuel lines. Re-connect the fuel lines on the vehicle floor. The connector must engage audibly. Check correct seating by pulling gently.
CAUTION: Danger of slipping hoses.
Never apply a lubricant to the coolant hoses to make fitting easier!

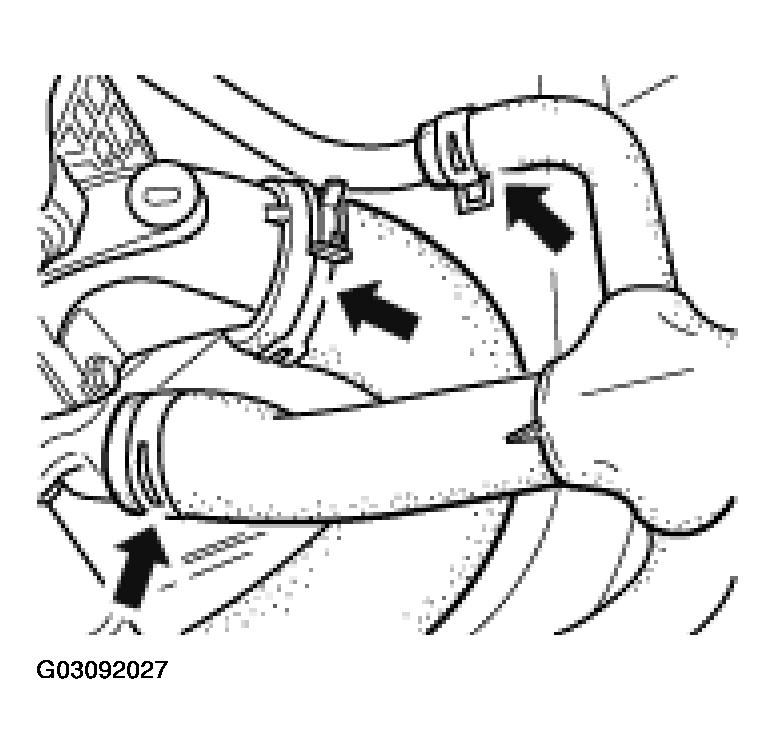

Fit all the coolant hoses again. To make fitting easier, the coolant hoses can be wetted with water in the fitting area.

Fig 31: Connecting Coolant Hose
Courtesy of PORSCHE OF NORTH AMERICA, INC.

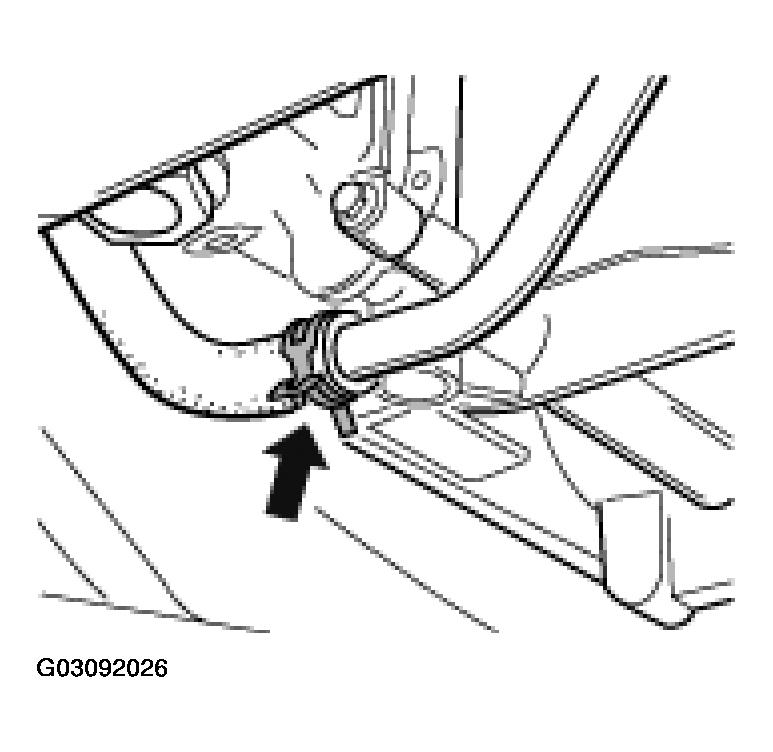

Fig 32: Connecting Coolant Hose Clip
Courtesy of PORSCHE OF NORTH AMERICA, INC.

Fig 33: Connecting Coolant Hoses
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Check coolant drain plug. If the drain plug is removed, it should be equipped with a new seal and re-mounted. The tightening torque for the screw is from 10 to 15 Nm (7.5 to 11 ft.lb).

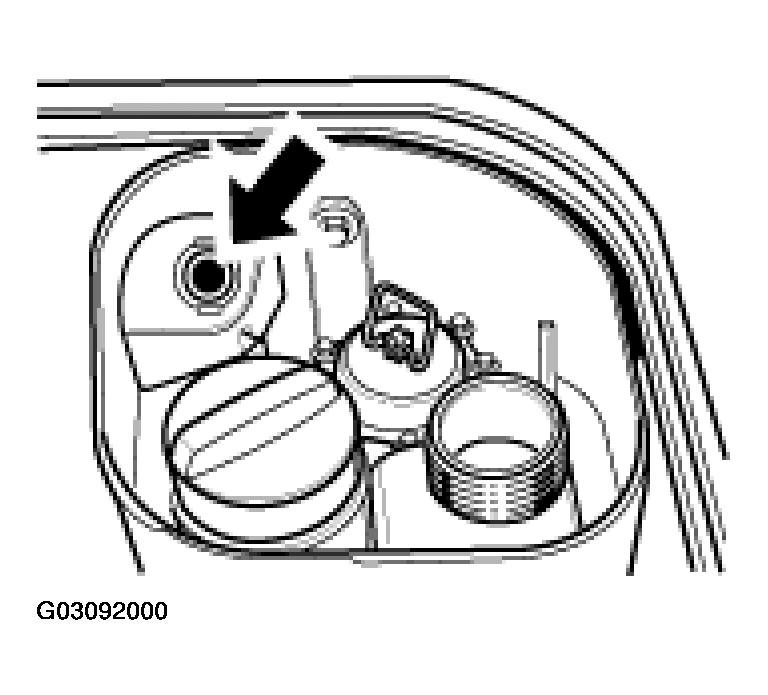

Fig 34: Locating Coolant Drain Plug
Courtesy of PORSCHE OF NORTH AMERICA, INC.

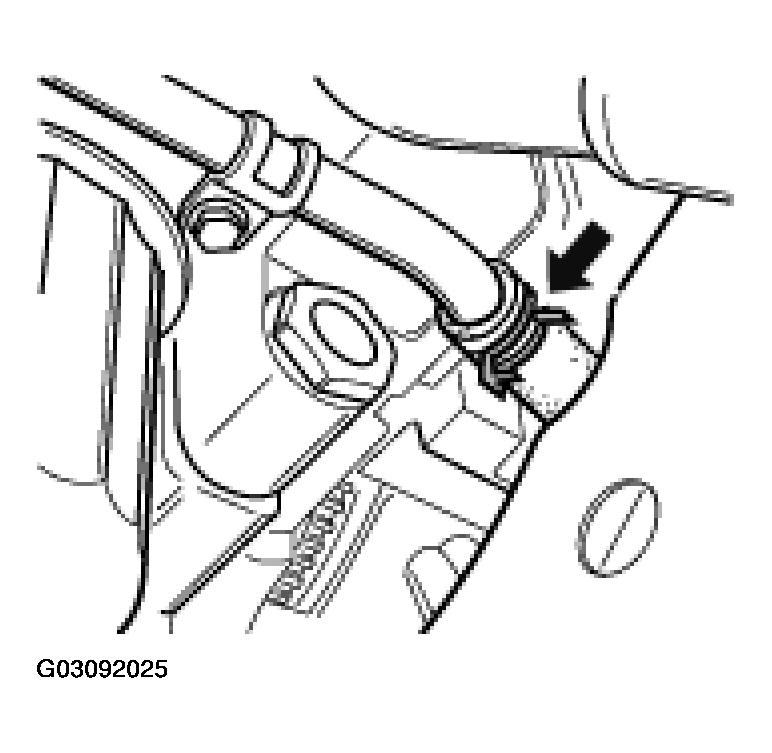

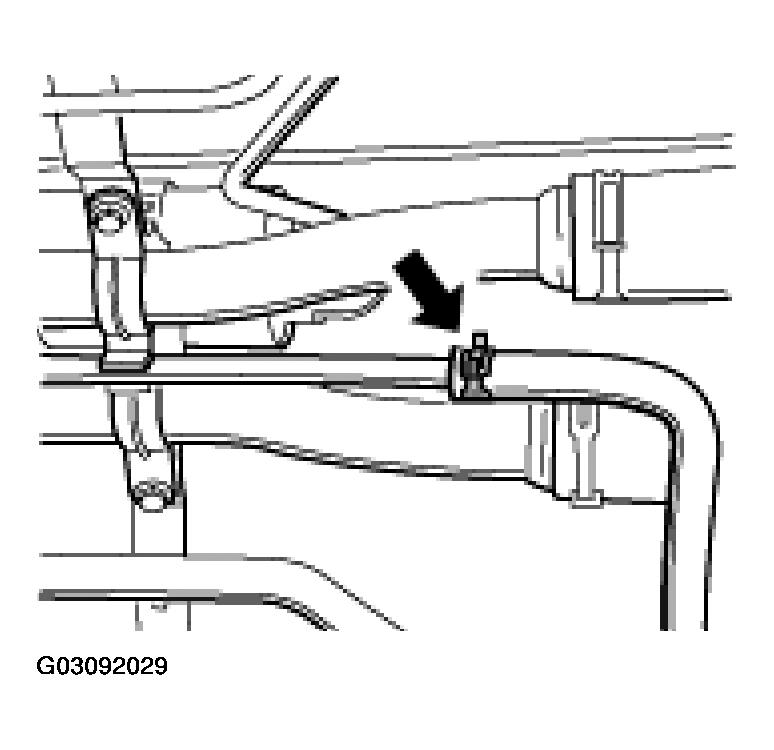

Fit vent line again.

Fig 35: Fitting Vent Line
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Install rear-axle support again. The four fastening screws are tightened to 65 Nm (48 ft.lb).

Fig 36: Installing Rear-Axle Support
Courtesy of PORSCHE OF NORTH AMERICA, INC.

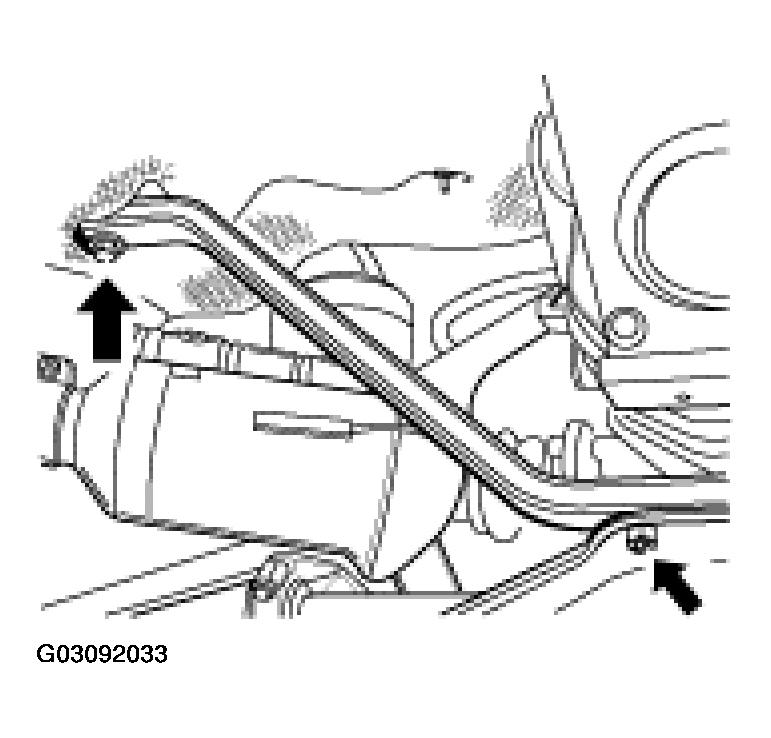

Move the exhaust system to its installation position again. In the process, replace all the seals at opened points. Tighten the three hexagon-head bolts again. Then tighten the screws on the exhaust manifold/catalytic converter with 25 Nm (18 ft.lb).

Fig 37: Locating Hexagon-Head Bolts
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Connect oxygen sensors. Connect the plugs and engage the holder in the rear-axle support.

Fig 38: Connecting Oxygen Sensors Plugs At The Rear-Axle Support
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Install the rear V-member. The four fastening screws are tightened to 65 Nm (48 ft.lb).

Fig 39: Installing Rear V-Member
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Install stabilizer. To do so, insert the stabilizer on the left and right into the stabilizer mount and screw it tight to the two bearing surfaces. The fastening nuts on the mount are tightened to 50 Nm (37 ft.lb). The fastening screws on the bearing surfaces are tightened to 23 Nm (17 ft.lb).

Fig 40: Locating Stabilizer Bearing
Courtesy of PORSCHE OF NORTH AMERICA, INC.

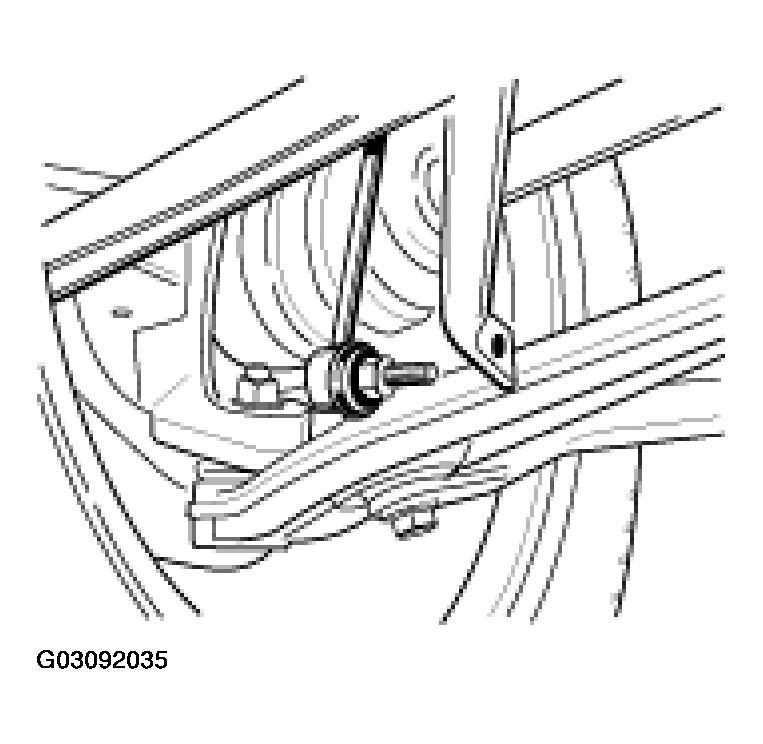

Fig 41: View Of Stabilizer Link
Courtesy of PORSCHE OF NORTH AMERICA, INC.

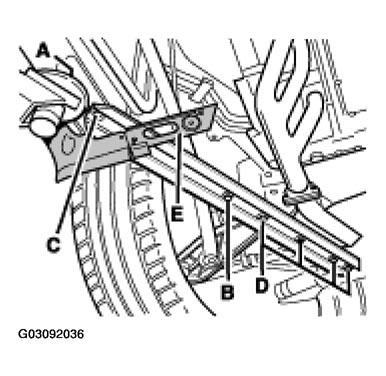

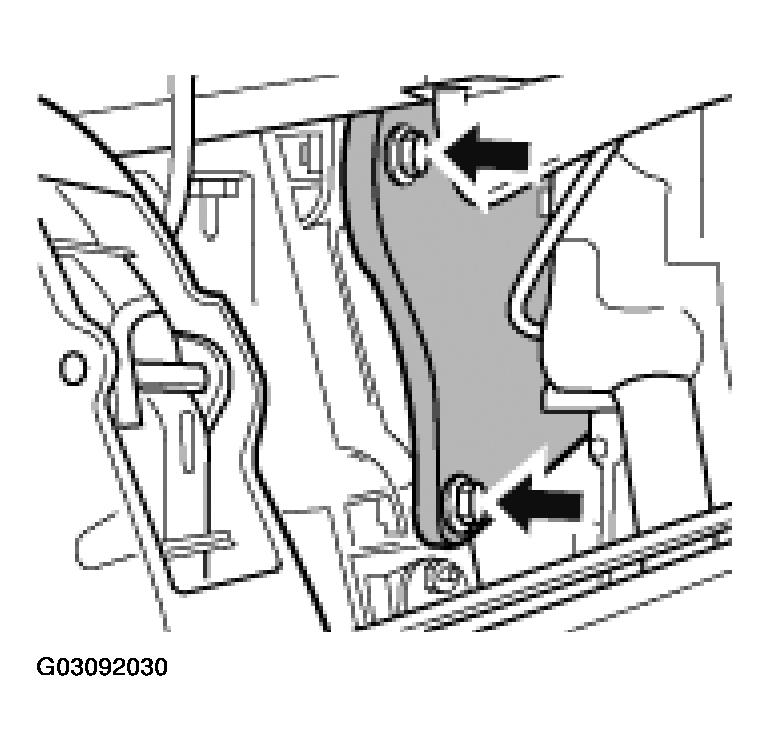

Install the sheetmetal brace into the vehicle. Tighten the hexagon nuts to 65 Nm (48 ft.lb) and tighten the fastening screws to 46 Nm (34 ft.lb). Install the diagonal braces into the vehicle. Tighten the fastening nuts to 65 Nm (48 ft.lb).

Fig 42: Installing Sheetmetal Brace
Courtesy of PORSCHE OF NORTH AMERICA, INC.
NOTE:
- Vehicles with automatic headlight beam adjustment. Bear in mind that the angle sensor bracket (B) must be in contact at the bottom when the bolts on the rear-axle support (A) are tightened. Once installed, the control module must be calibrated with the System Tester PST 2. The headlights must then be reset. -A- Rear-axle support- -B - Angle sensor bracket- -C - Angle sensor- See Fig 43.

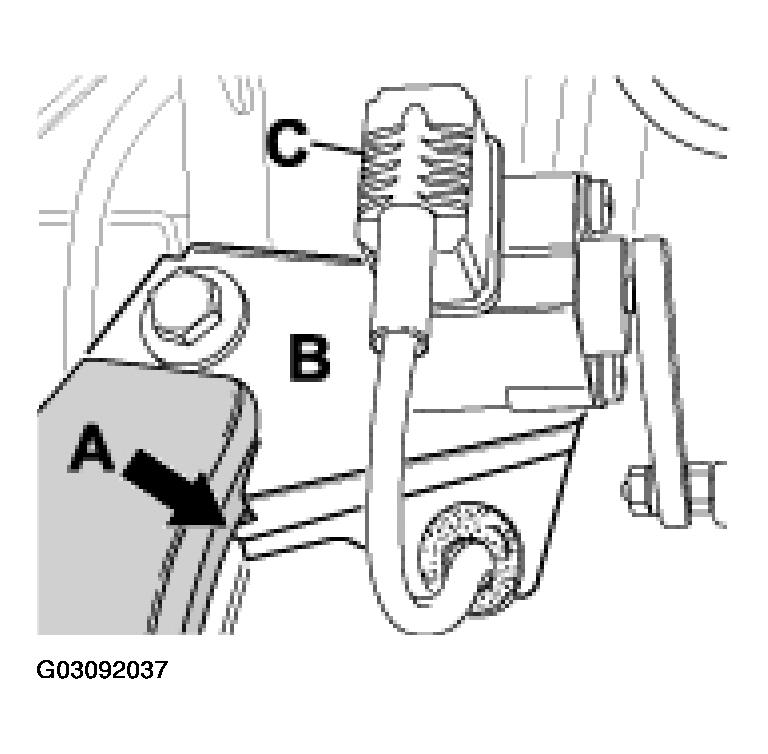

Fig 43: Identifying Automatic Headlight Beam Adjustment Mechanism
Courtesy of PORSCHE OF NORTH AMERICA, INC.

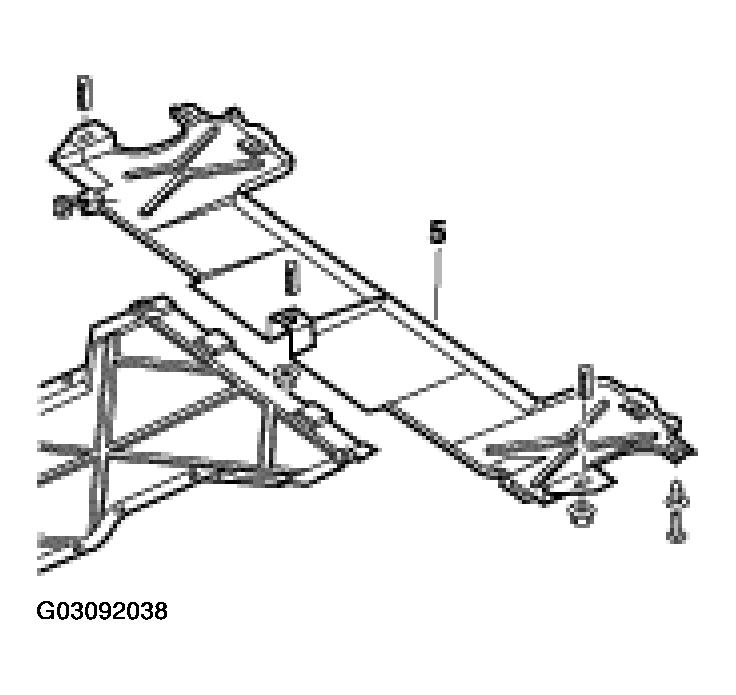

Fit the underbody panel.

Fig 44: Fitting Underbody Panel
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Install the right and left wheel housing trims again.

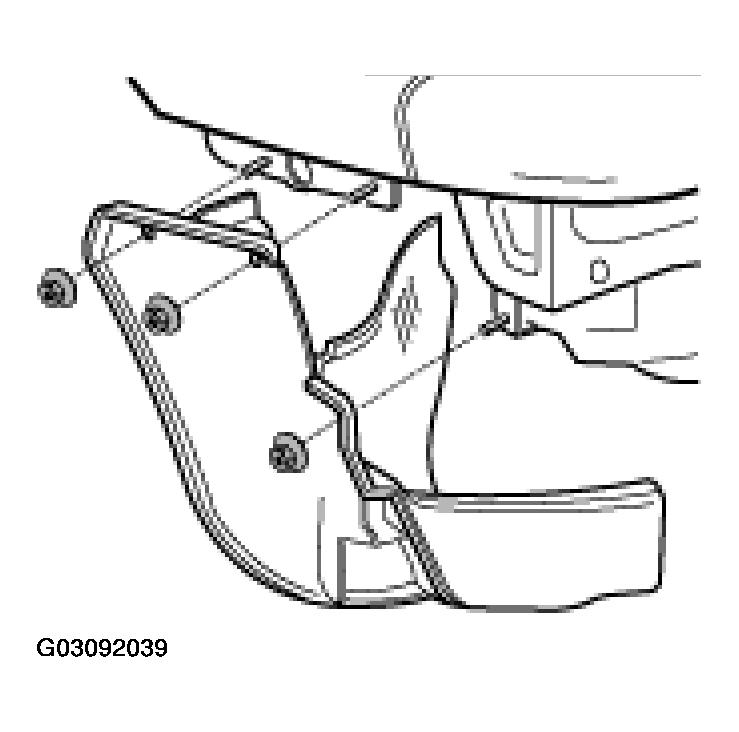

Fig 45: Installing Right And Left Wheel Housing Trims
Courtesy of PORSCHE OF NORTH AMERICA, INC.

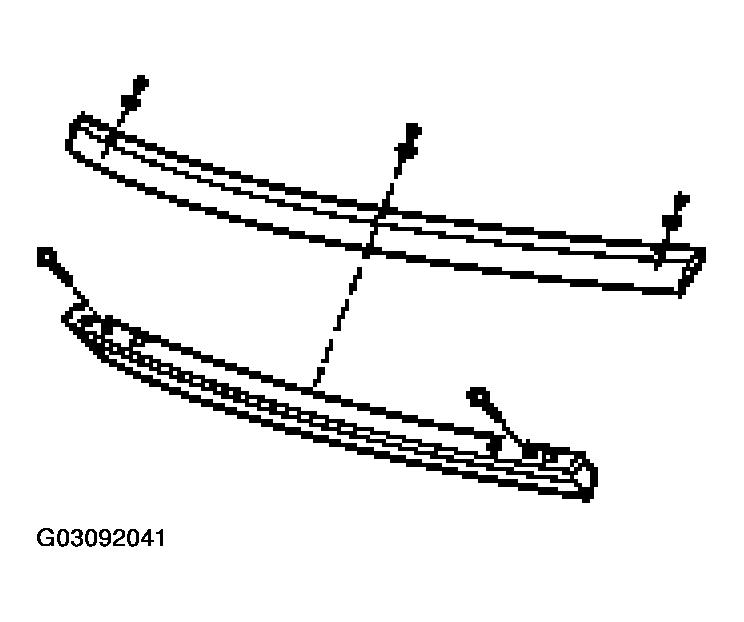

Re-install the rear spoiler.

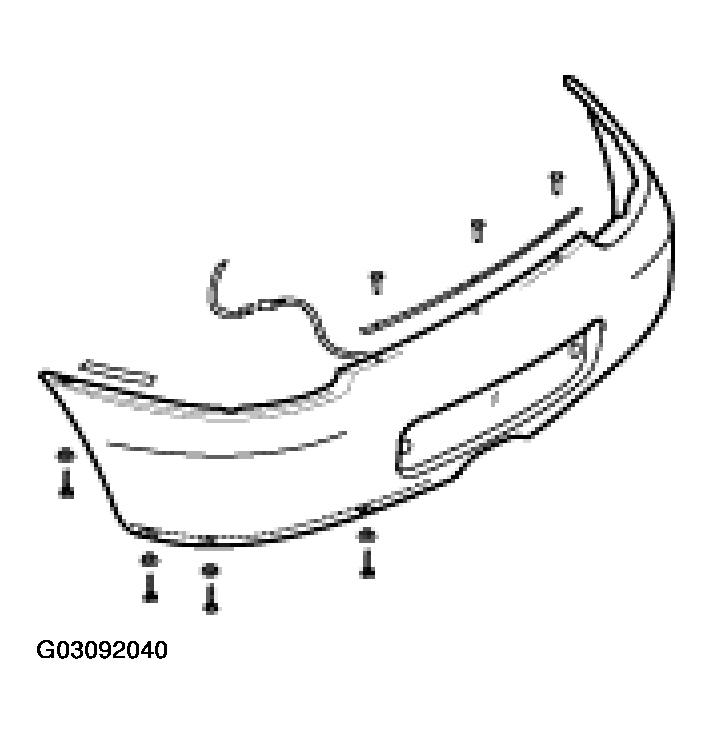

Fig 46: Installing Rear Spoiler
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Install the rear spoiler again.

Fig 47: Installing Rear Spoiler Again
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Re-position the trim of the rear luggage compartment and press in the fastening rivets.
WARNING:
Risk of short circuit
- Pay attention to the correct seating of the rubber sleeve of the B+ lead!
Check the rubber sleeve. The rubber sleeve of the B+ lead must be fitted correctly and must not have slipped out of place.

Fig 48: Checking Rubber Sleeve Of The B+ Lead
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Re-install the left seat. Tighten the four fastening screws to 65 Nm (48 ft.lb).
Top up operating fluids. Check that all operating fluids (engine oil, Pentosin, coolant) are at the correct level. Both the coolant circuit and the power steering must be bled according to regulations.
Connect battery. Connect the battery terminals again and tighten. Subsequently, the fault memories of the vehicle must be read out and the theft codes may possibly have to be entered again. Re-program the power windows.
Seal off the upper and rear maintenance openings again. Tighten the seven fastening screws and the two fastening nuts of the rear maintenance opening to 10 Nm (7.5 ft.lb).

Fig 49: Tightening Maintenance Cover Fastening Screws
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Carry out a test drive. After the test drive, check that all the operating fluids are at the correct level. Check all circuits for leaks.
Fit convertible top again. To do so, take the mandrel out of the fixing bore.
Move the convertible top towards the rear until the linkage can be pushed back onto the pin. Then push the retaining clip into place.

Fig 50: Pushing Retaining Clip On Convertible Top Linkage
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Close convertible top. To do so, pull the tension bow towards the rear again and engage the tension cables again on the left and right.
Engage the cloth covering of the convertible top on the left and right into the retaining lugs.
