Special Tools

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

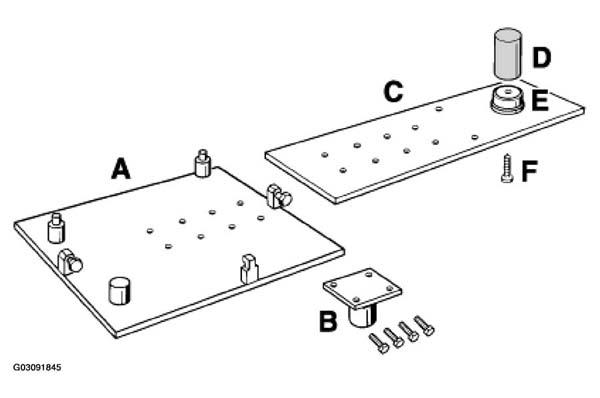

Fig 1: Identifying Special Tools

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SPECIAL TOOLS

Item

Designation

Explanation

A⁽¹⁾

Retainer plate

In conjunction with workshop jack

B⁽¹⁾

Adapter

Or use adapter of transmission holding plate, special tool 9163 for the 928 model

C⁽¹⁾

Support plate

Contained in scope of delivery of 9592/1

D⁽¹⁾

Support for manual transmission

Contained in scope of delivery of 9592/1

E⁽¹⁾

Pressure piece

Contained in scope of delivery of 9592/1

F⁽¹⁾

Screw M8 x 25

Contained in scope of delivery of 9592/1

⁽¹⁾	For explanation see Fig 1

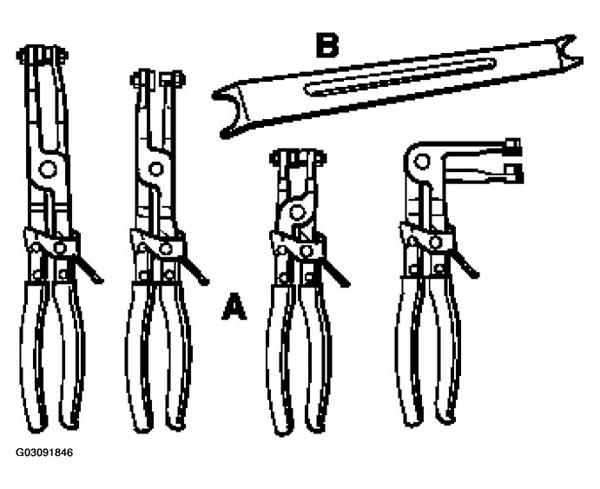

Fig 2: Identifying Special Tools

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SPECIAL TOOL AND EXPLANATION

Item

Designation

Explanation

AFig 2

Spring-band clamp pliers

BFig 2

Testing tool for plug-in couplings

Used to check whether the plug-in couplings are seated properly. Suitable for pressure and return lines (nominal diameter 6 and nominal diameter 10)

⁽¹⁾	For explanation see Fig 2
