Disassembling And Assembling Positive Crankcase Ventilation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

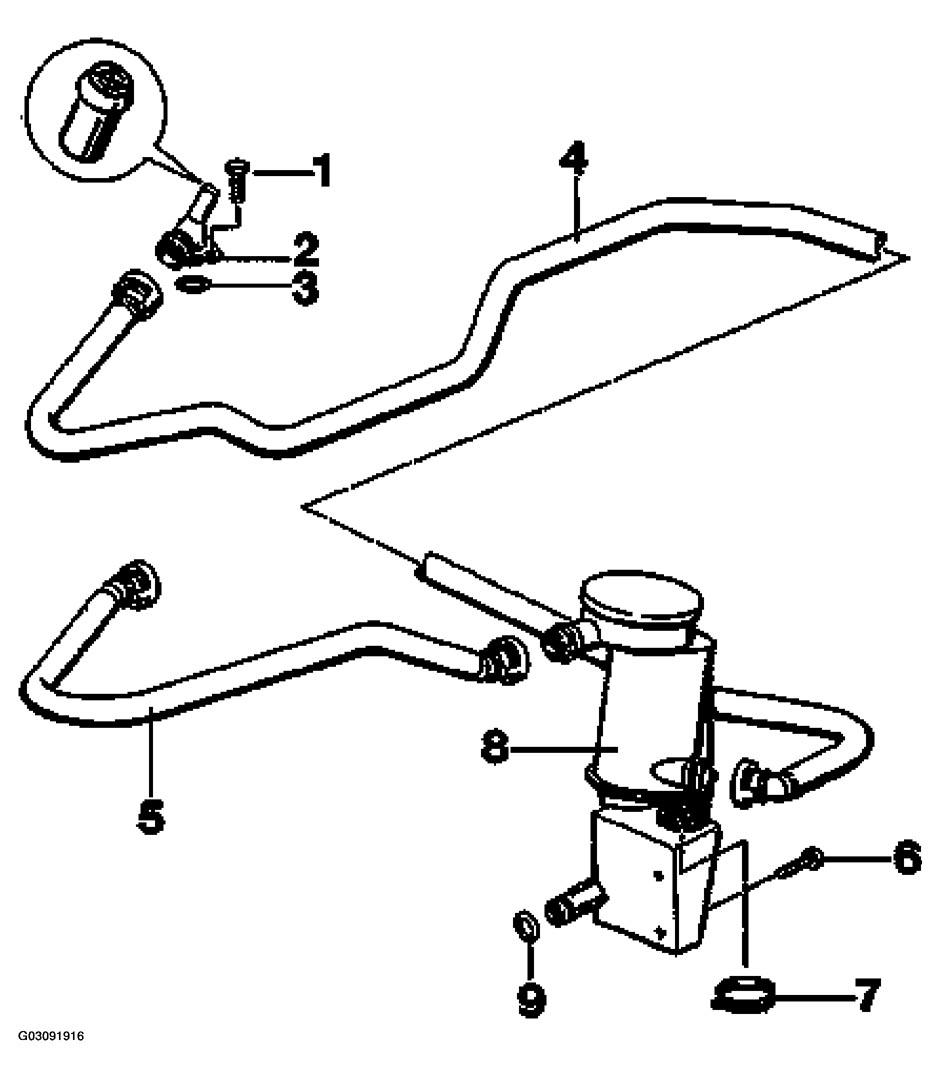

Fig 1: Exploded View Of Positive Crankcase Ventilation Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

ENGINE CRANKCASE SPECIFICATION

No.

Name

Piece

Disassembling

Assembling

1⁽¹⁾

Hexagon-head bolt M6 x 16

2⁽¹⁾

Positive crankcase ventilation valve

The overpressure valve cannot be exchanged

Test; valve opening pressure: 180 +/- 20 mbar

3⁽¹⁾

O-ring 18.77 x 1.78

Replace

4⁽¹⁾

Breather hose

5⁽¹⁾

Breather hose

6⁽¹⁾

Hexagon-head bolt M6 x 30

7⁽¹⁾

Hose clamp 32 x 12

8⁽¹⁾

Oil separator

9⁽¹⁾

O-ring 13 x 2.5

Replace

⁽¹⁾	For explanation see Fig 1.
