Disassembling And Assembling Bearing Housing, Crankshaft And Connecting Rods Of Cylinders 4 - 6.

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

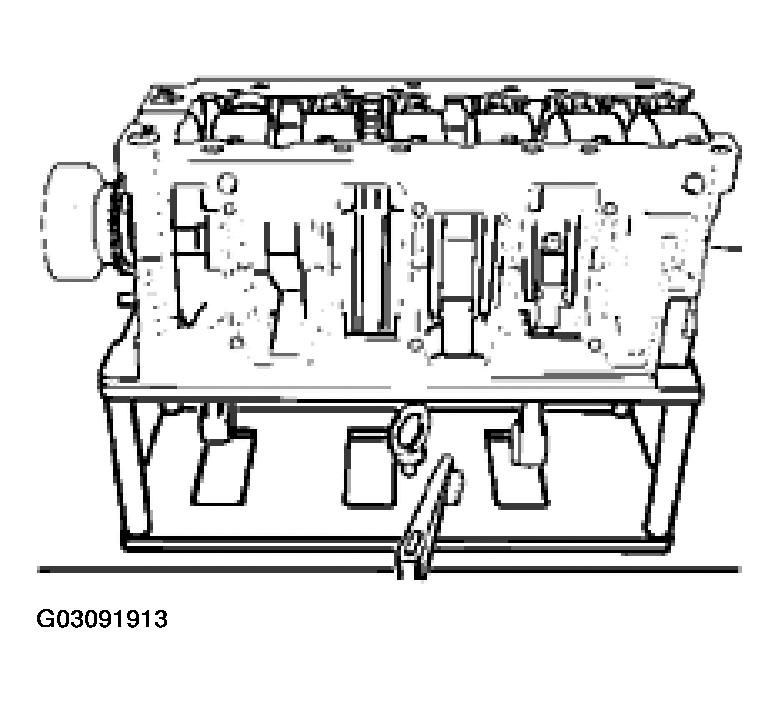

Fig 1: View Of Bearing Housing

Courtesy of PORSCHE OF NORTH AMERICA, INC.

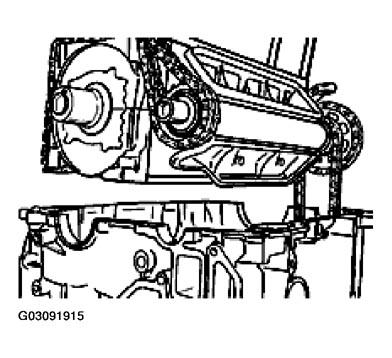

Fig 2: View Of Engine Block

Courtesy of PORSCHE OF NORTH AMERICA, INC.

Removal or installation of the compete bearing housing in the crankcase half, cylinders 1 - 3. As the bearing housing is heavy, it should be removed and installed using a workshop crane.

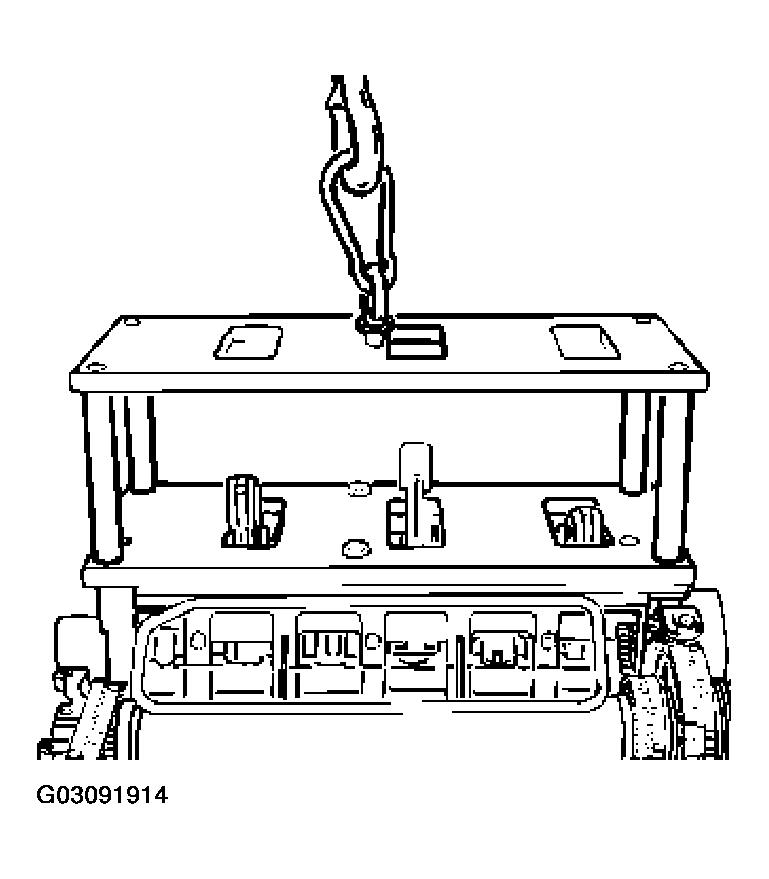

Fig 3: Lifting Bearing Housing

Courtesy of PORSCHE OF NORTH AMERICA, INC.

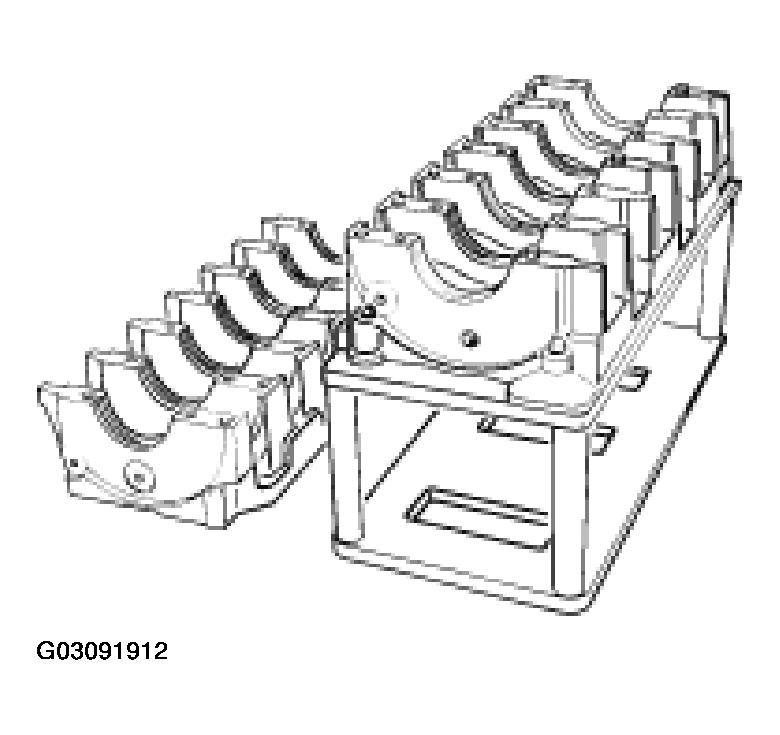

Fig 4: Removing Bearing Housing

Courtesy of PORSCHE OF NORTH AMERICA, INC.
