Disassembling And Assembling Engine Carrier

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

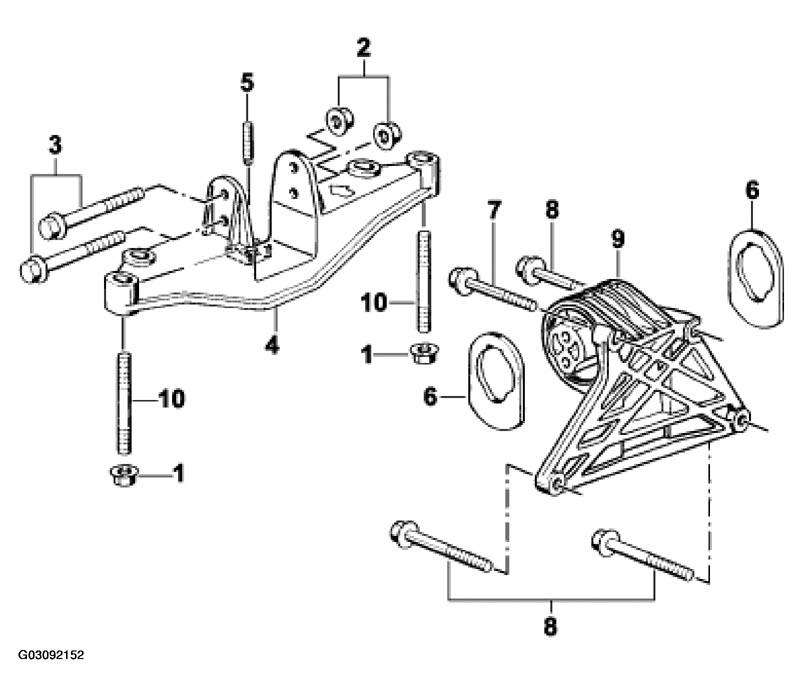

Fig 1: Exploded View Of Engine Carrier Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

ENGINE CARRIER COMPONENTS

No.

Designation

Qty.

Installation

1⁽¹⁾

Hexagon nut M10

Tightening torque 65 Nm (48 ft.lb).

2⁽¹⁾

Hexagon nut M10

Tightening torque 65 Nm (48 ft.lb).

3⁽¹⁾

Hexagon-head bolt

4⁽¹⁾

Engine carrier

Stamped arrow points in direction of travel

5⁽¹⁾

Stud M6 x 11

6⁽¹⁾

Rubber stop

7⁽¹⁾

Hexagon-head bolt M10 x 60 for 3-point suspension Hexagon-head bolt M10 x 80 for 4-point suspension

Tightening torque 46 Nm (34 ft.lb)

8⁽¹⁾

Hexagon-head bolt

Tightening torque 46 Nm (34 ft.lb)

9⁽¹⁾

Engine bracket

10⁽¹⁾

Stud M10 x 83

⁽¹⁾	For explanation see Fig 1.

NOTE:

There are two model versions of engine brackets. Allocation occurs according to the number of screw connection points
The 4-point engine bracket must not be installed with the 3-point coolant guide housing (from version 1).

Coolant guide housing with 4-point screw connection and engine bracket with 3-point screw connection. The additional bolting point at the upper right-hand side -arrow- on the coolant guide housing is fastened with a hexagon-head bolt M10 x 60. See Fig 2.

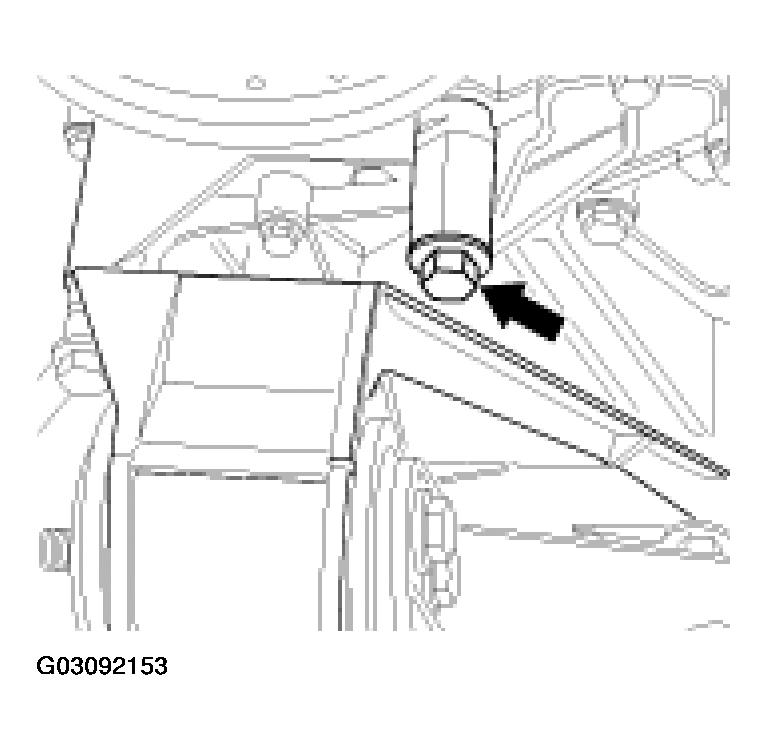

Fig 2: Locating Coolant Guide Housing Hexagon-Head Bolt - Version I
Courtesy of PORSCHE OF NORTH AMERICA, INC.

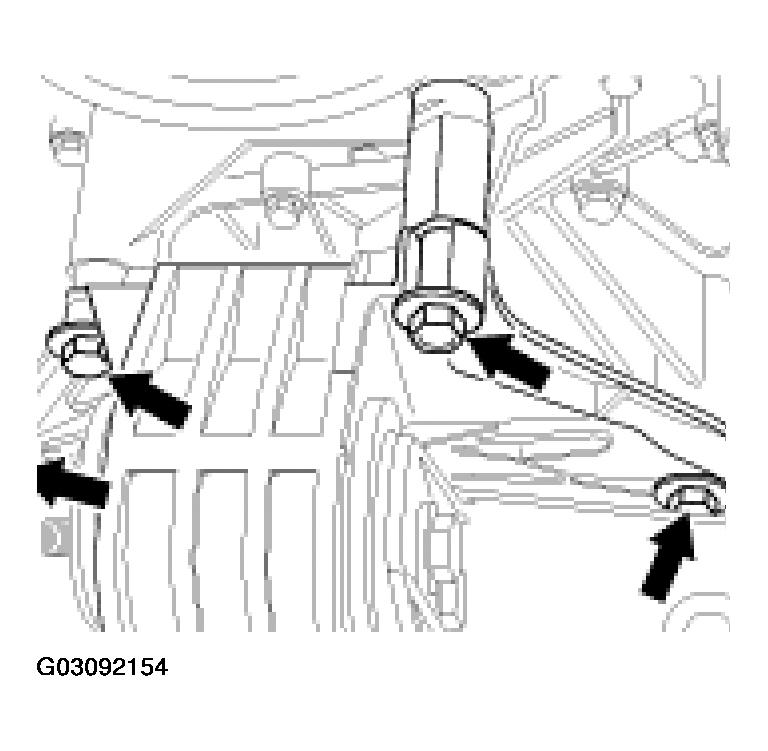

Fig 3: Locating Coolant Guide Housing Hexagon-Head Bolt - Version II
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Coolant guide housing with 4-point screw connection and engine bracket with 4-point screw connection.
