Disassembling And Assembling Crankcase Halves, Engine M96/20, M96/21, M96/22: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

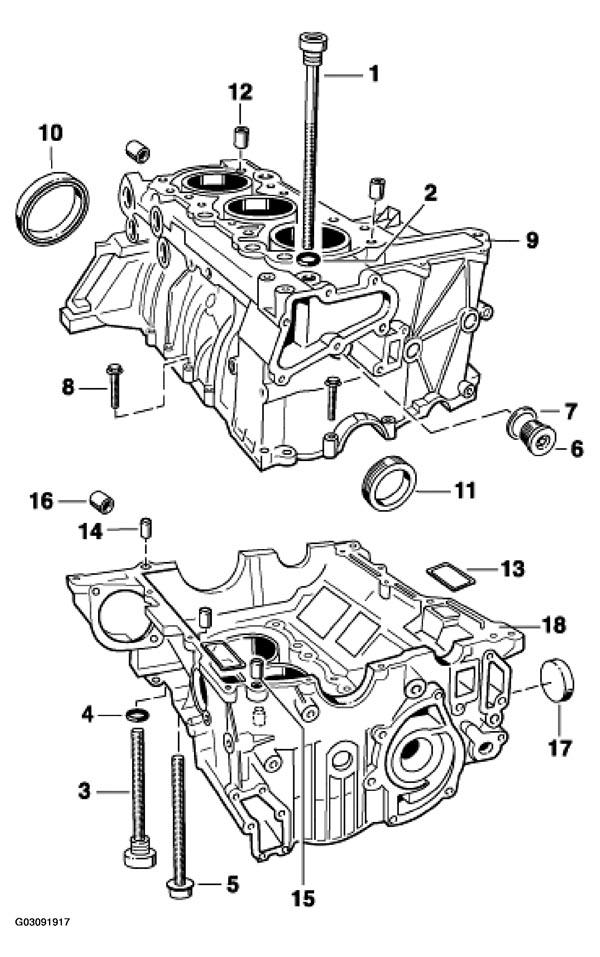

Fig 1: Exploded View Of Crankcase Halves, Engine M96/20, M96/21, M96/22 Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

ENGINE CRANKCASE DESIGNATION

No.

Designation

Qty.

Removal

Installation

1⁽¹⁾

Fastening screw for bearing housing M9 x 150

Tighten only after the cylinder heads have been fastened

2⁽¹⁾

O-ring 12 x 2

Always replace

3⁽¹⁾

Fastening screw for bearing housing M9 x 94

Tighten only after the cylinder heads have been fastened

4⁽¹⁾

O-ring

Always replace

5⁽¹⁾

Fastening screw for bearing housing

Tighten only after the cylinder heads have been fastened Tightening torque 22 Nm (16 ft.lb)

6⁽¹⁾

Plug for assembly bore of piston pin M27 x 2

Tightening torque 80 Nm (59 ft.lb)

7⁽¹⁾

Sealing ring A27 x 2

Always replace

8⁽¹⁾

Hexagon-head bolt for screwing together crankcase halves M6 x 30

Tightening torque 13 Nm (9.5 ft.lb)

9⁽¹⁾

Crankcase half, cylinder bank 4 - 6

Apply a silicone bead on the sealing surface.

10⁽¹⁾

Sealing ring

Replace; fit with insertion tool, special tool 9609

11⁽¹⁾

Sealing ring

Replace; fit with assembly sleeve, special tool 9610

12⁽¹⁾

Dowel sleeve M6 x 18.5

13⁽¹⁾

Gasket

Replace

14⁽¹⁾

Cylindrical pin 12 x 22

15⁽¹⁾

Dowel sleeve

16⁽¹⁾

Dowel sleeve

17⁽¹⁾

Closure cap

18⁽¹⁾

Crankcase half, cylinder bank 1 - 3

For disassembly, fasten to engine holder, special tool 9589

For assembly, fasten to engine holder, special tool 9589

⁽¹⁾	For explanation see Fig 1.
