Removing And Installing Coolant Temperature Sensor: Removal

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear underside panel.
  2. Pull off electrical plug connection. Undo temperature sensor (wrench size 22).

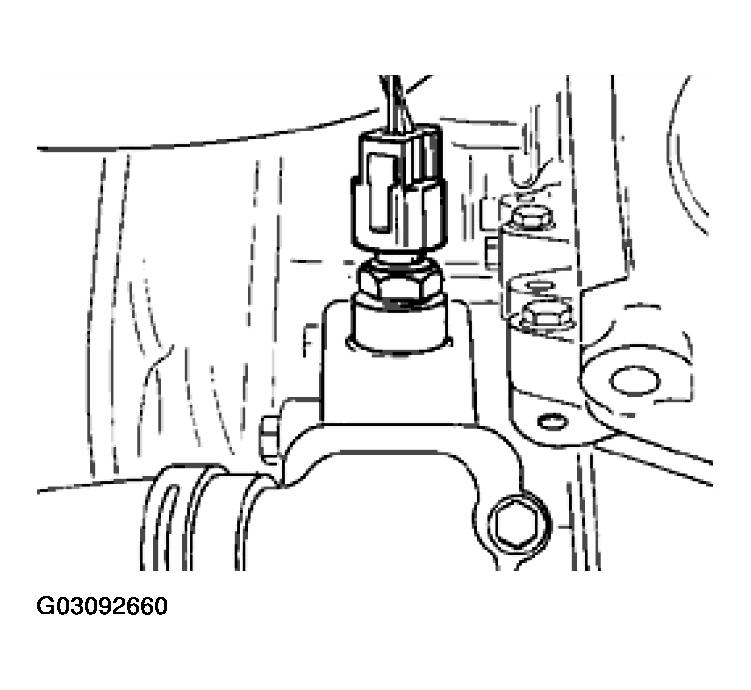

    Fig 1: Removing Coolant Temperature Sensor
    G03092660Courtesy of PORSCHE OF NORTH AMERICA, INC.
