Removing And Installing Coolant Pump: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

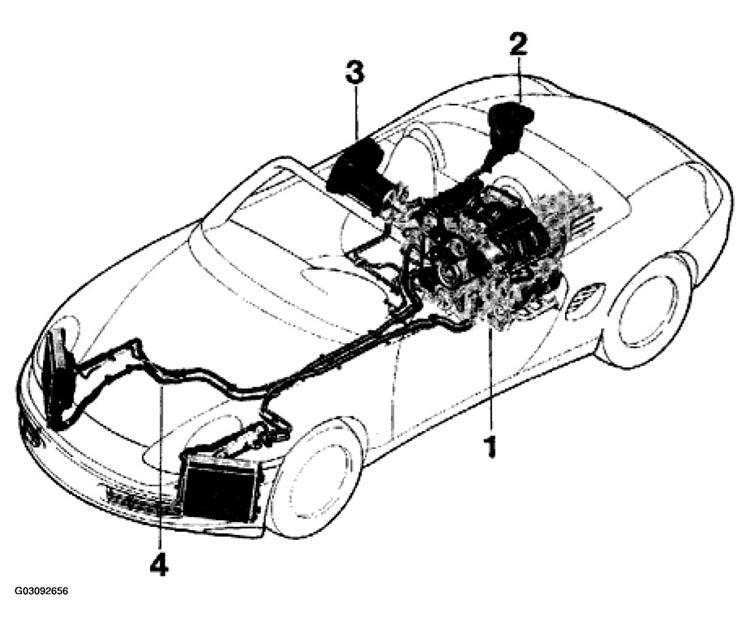

Fig 1: Identifying Cooling System Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

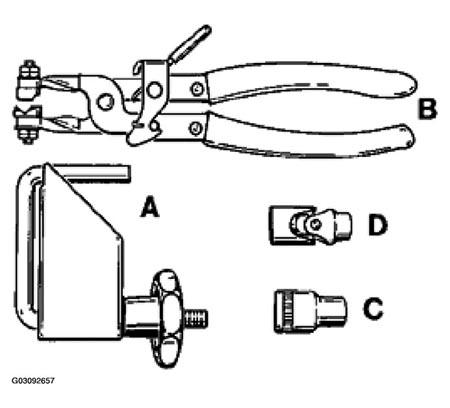

Fig 2: Identifying Special Tools

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SPECIAL TOOLS

No.

Designation

Explanation

A⁽¹⁾

Hose clamp

Art. No. 3093, from Saltus Art. No. 3094, from Saltus

B⁽¹⁾

Spring-band clamp pliers

Mubea G0 - 190, from Muhr [amp ] Bender

C⁽¹⁾

Torx socket

E12 (3/8 inch), from Stahlwille

D⁽¹⁾

Flexible-head socket wrench

Art. No. 4001 - 10, from Stahlwille

⁽¹⁾	For explanation see Fig 2.

Fig 3: Removing And Installing Coolant Pump

Courtesy of PORSCHE OF NORTH AMERICA, INC.
