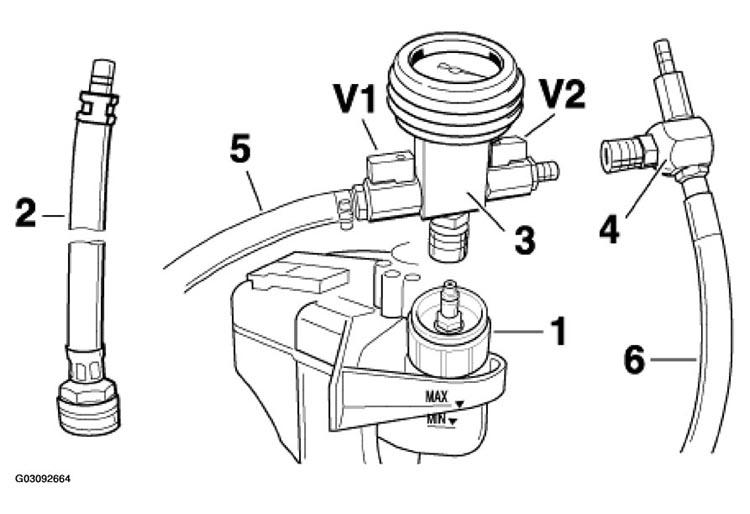

RADIATOR, VACUUM, FILLER DEVICE COMPONENTS
| Item | Designation | Remarks | ||
|---|---|---|---|---|
| 1(1) | Adapter K 22 | Is installed in place of the cap of the coolant expansion tank. | ||
| 2(1) | Hose extension FZ 100 | Is installed between K22 and KVB 01. | ||
| 3(1) | KVB 01 | Vacuum pressure gauge with two shutoff valves. | ||
| V1(1) | Shutoff valve V1 | Shutoff valve for the filler hose. | ||
| V2(1) | Shutoff valve V2 | Shutoff valve for the return line hose. | ||
| 4(1) | Venturi nozzle | A vacuum is produced in this component by means of the compressed air. A pressure between 6 and 10 Bar must be present. | ||
| 5(1) | Filler hose | The cooling system is refilled via this hose. | ||
| 6(1) | Return line | The compressed air and the intake coolant are drawn off via this hose. | ||
|
||||
