Special Tools

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

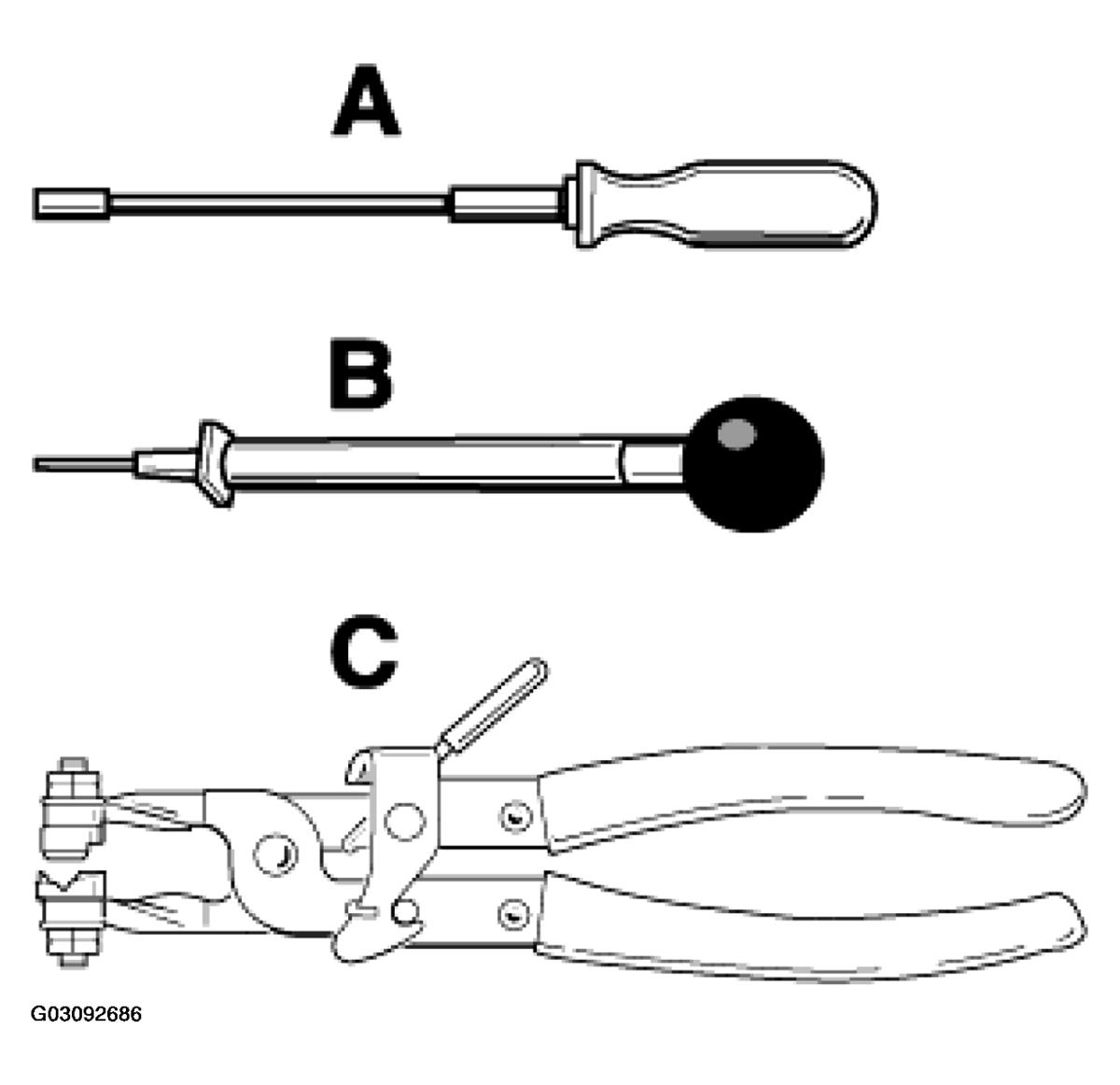

Fig 1: Identifying Special Tools (1 Of 2)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SPECIAL TOOLS (1 OF 2)

Item

Designation

Special tool

Remarks

A⁽¹⁾

Flexible screwdriver wrench size 7

Commercially available

For undoing or tightening screw hose clamps

B⁽¹⁾

Frost protection testing device

Commercially available

For checking the frost protection content in the coolant circuit. The structural shape can deviate from that in shown in ⁽¹⁾.

C⁽¹⁾

Spring-band clamp pliers

Commercially available

For opening and closing spring-band clamps

Frostox R Spezial

Part Nos.: 000.043.204.39

Agent for cleaning the coolant circuit. Available from the Porsche Parts Service

⁽¹⁾	For explanation see Fig 1

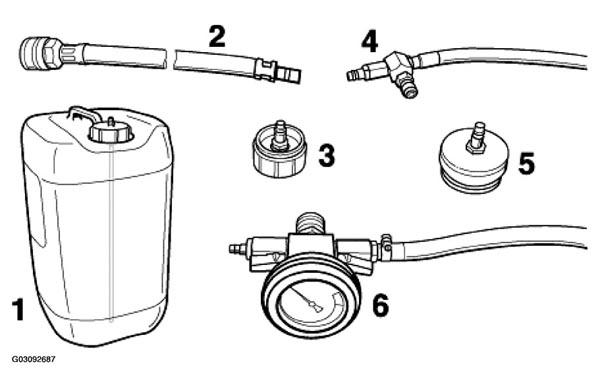

Fig 2: Identifying Special Tools (2 Of 2)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SPECIAL TOOLS (2 OF 2)

Item

Designation

Special tool

Remarks

1⁽¹⁾

Canister

Contained in scope of delivery of 9696

30 L canister with lifting tube.

2⁽¹⁾

Hose extension FZ 100 K
