Cleaning The Cooling System

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Danger of scalding! Coolant can be very hot. Wear suitable protective equipment.

Repair the damaged component. Repair or replace the component which is causing the oil/coolant mixture.

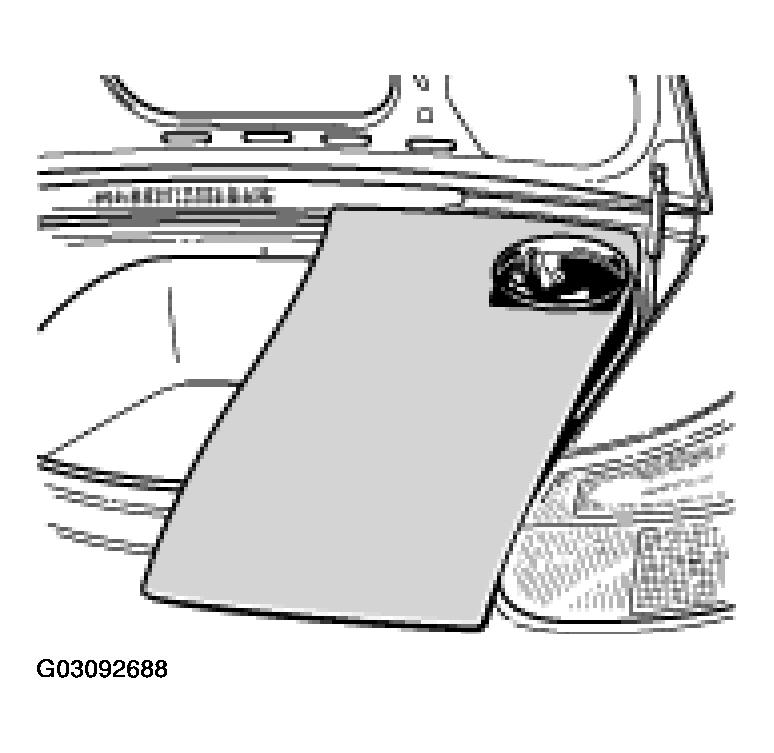

Open rear luggage compartment. Protect the luggage compartment floor against soiling with a suitable cover.

Fig 1: Protecting Luggage Compartment Floor Against Soiling With A Cover
Courtesy of PORSCHE OF NORTH AMERICA, INC.

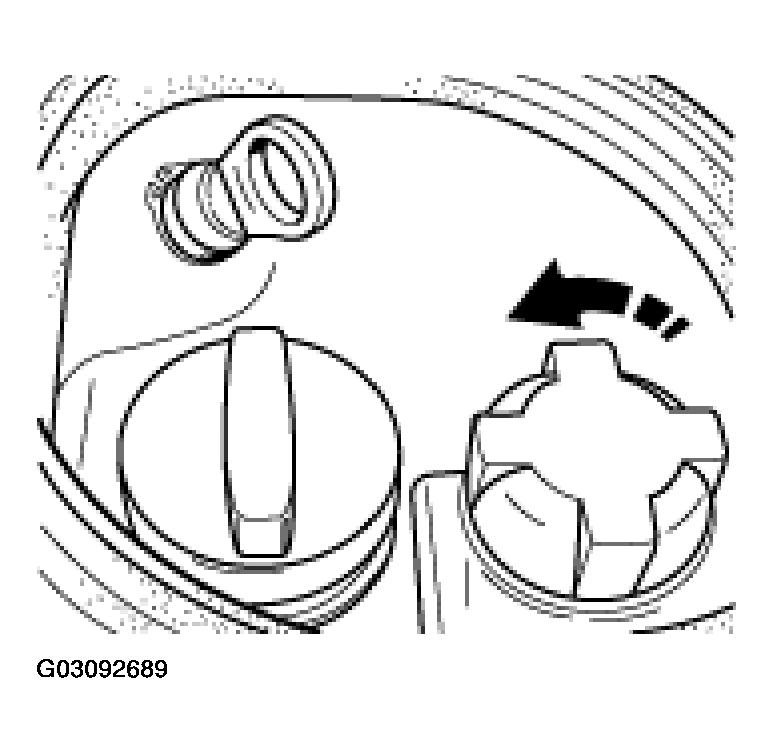

Open tank cap on the expansion tank and remove.

Fig 2: Opening Coolant Expansion Tank Cap
Courtesy of PORSCHE OF NORTH AMERICA, INC.

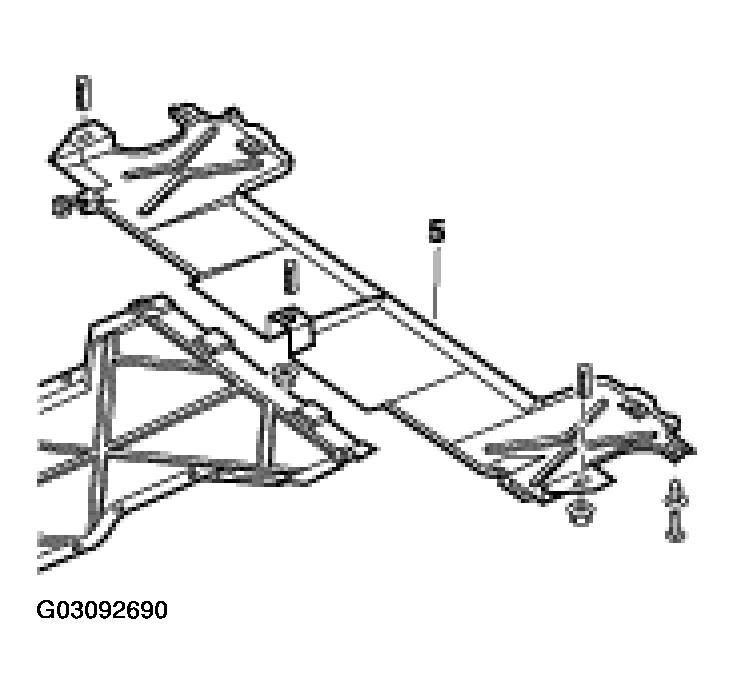

Remove the entire underbody cover.

Fig 3: Removing Underbody Cover
Courtesy of PORSCHE OF NORTH AMERICA, INC.

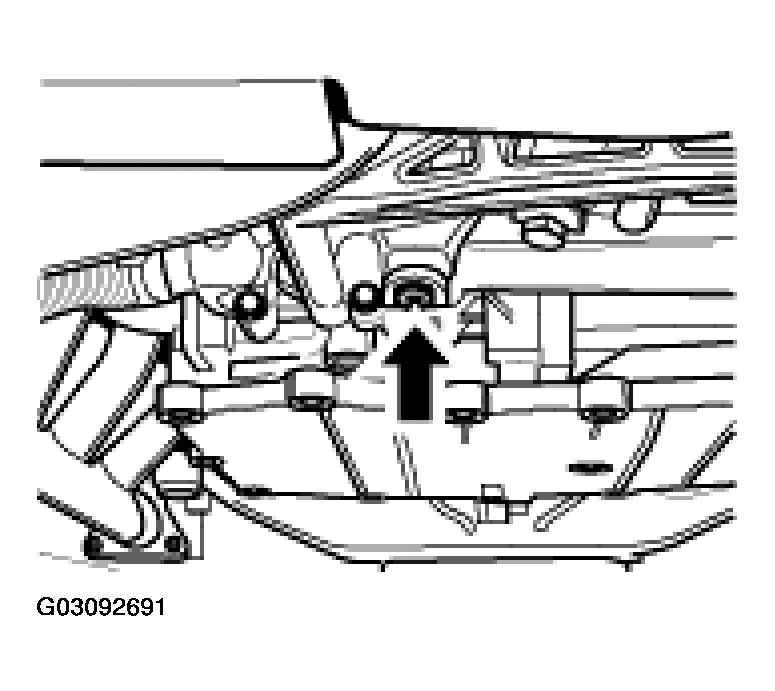

Drain cooling system. Remove the drain plug from the engine, drain the coolant into a container and dispose of coolant according to the country-specific legal requirements.

Fig 4: Removing Coolant Drain Plug On Engine
Courtesy of PORSCHE OF NORTH AMERICA, INC.

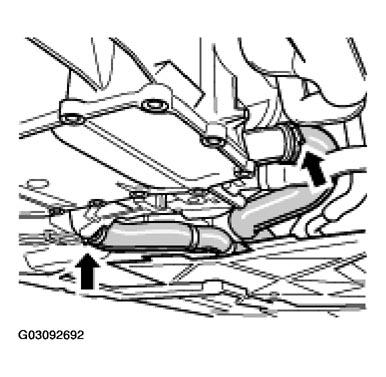

Pull the radiator supply and return lines off the engine. To do so, undo the hose clamps, carefully pull off the hoses and allow the remaining coolant to run out. Then connect the hoses again and tighten the hose clamps.

Fig 5: Removing Hose Clamp
Courtesy of PORSCHE OF NORTH AMERICA, INC.

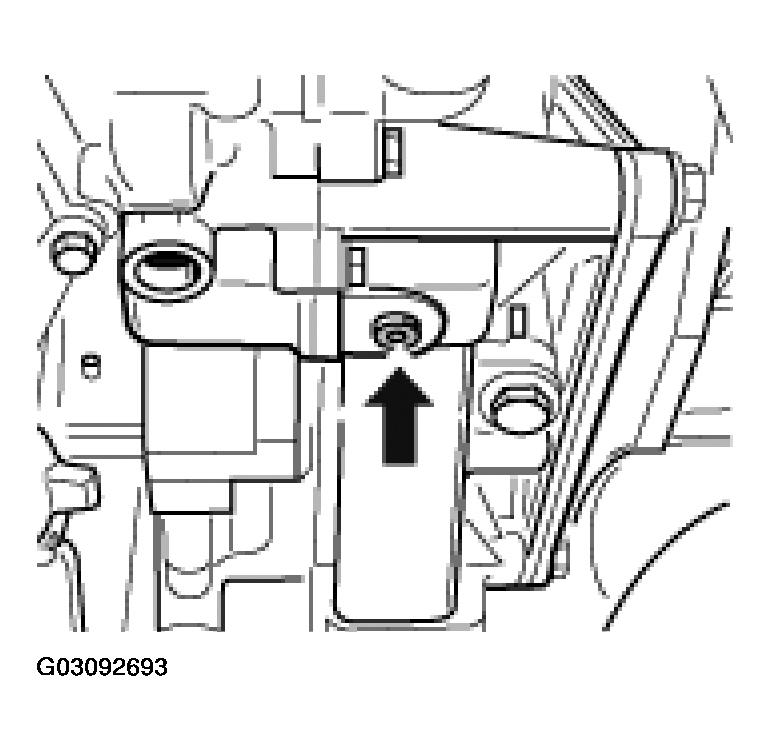

Tighten the drain plug on the engine. Tightening torque: 10 to 15 Nm (7.5 to 11 ft.lb).

Fig 6: Tightening Coolant Drain Plug On Engine
Courtesy of PORSCHE OF NORTH AMERICA, INC.
